Full Mortise Template – T308M
Open the original PDF document
View PDF'96 Rev.

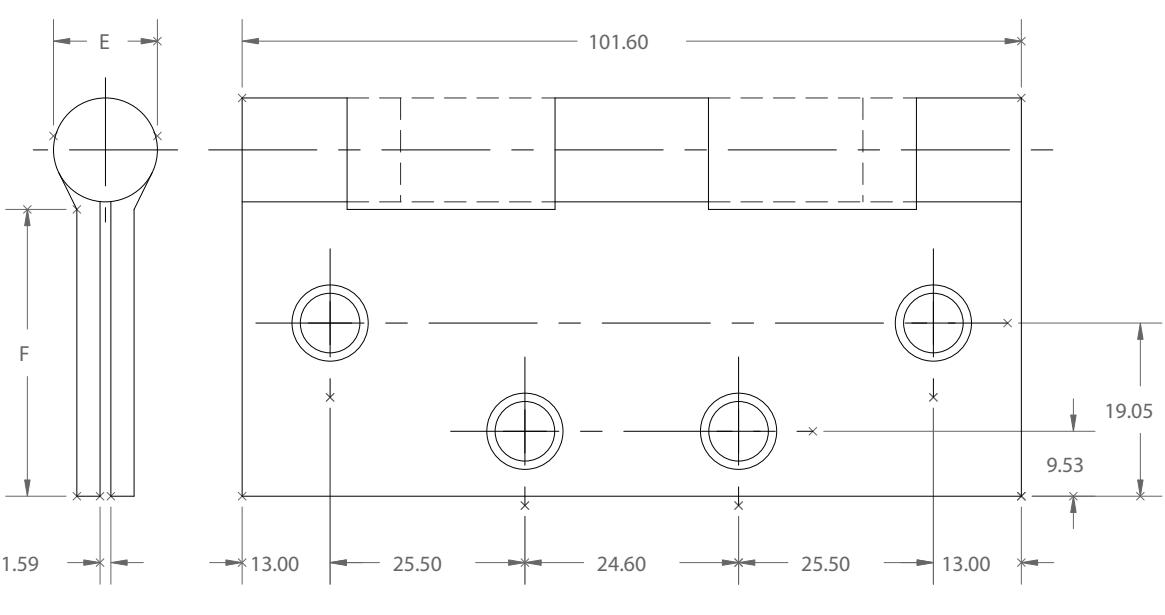

SIZES: 101.60 x 101.60, 101.60 x 127.00, 101.60 x 152.40, 101.60 x 177.80
| -DO NOT SCALE |
|---|
| CATALOG NUMBER |
(F)
DISTANCE FROM EDGE OF LEAF TO SWAGE LINE |
||||||||
|---|---|---|---|---|---|---|---|---|---|
| NON | (E) | ||||||||
| STEEL | FERROUS | METAL | KNUCKLE | 101.60 x | 101.60 x | 101.60 x | 101.60 x | ||
| HINGES | HINGES | GAUGE | DIAMETER | 101.60 | 127.00 | 152.40 | 177.80 | ||
| 700 | 800 | 3.28 | 15.08 | 42.86 | |||||
| 1279 | 1191 | 3.28 | 13.89 | 42.86 | 55.56 | 68.26 | 80.96 | ||
| AB700 | AB800 | 3.28 | 15.08 | 42.86 | |||||
| BB1279 | BB1191 | 3.28 | 13.89 | 42.86 | 55.56 | 68.26 | 80.96 | ||
ALL DIMENSIONS ARE IN MILLIMETERS.
Machine Screw Size- 12-24 x 1/2" F.H. Wood Screw Size- No. 12 x 1 1/4" F.H.
Hospital type and round corner template hinges conform to the above screw size and location. They are designated by "HT" and "RC" to catalog number.
Hager template hinges are made in size, gauge and with screw holes located to conform to ANSI-A156.7.
HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.
HAGER COMPANIES 139 VICTOR STREET P.O. BOX 12300 ST. LOUIS, MISSOURI 63157-0300
