Full Mortise Template – T304

Open the original PDF document

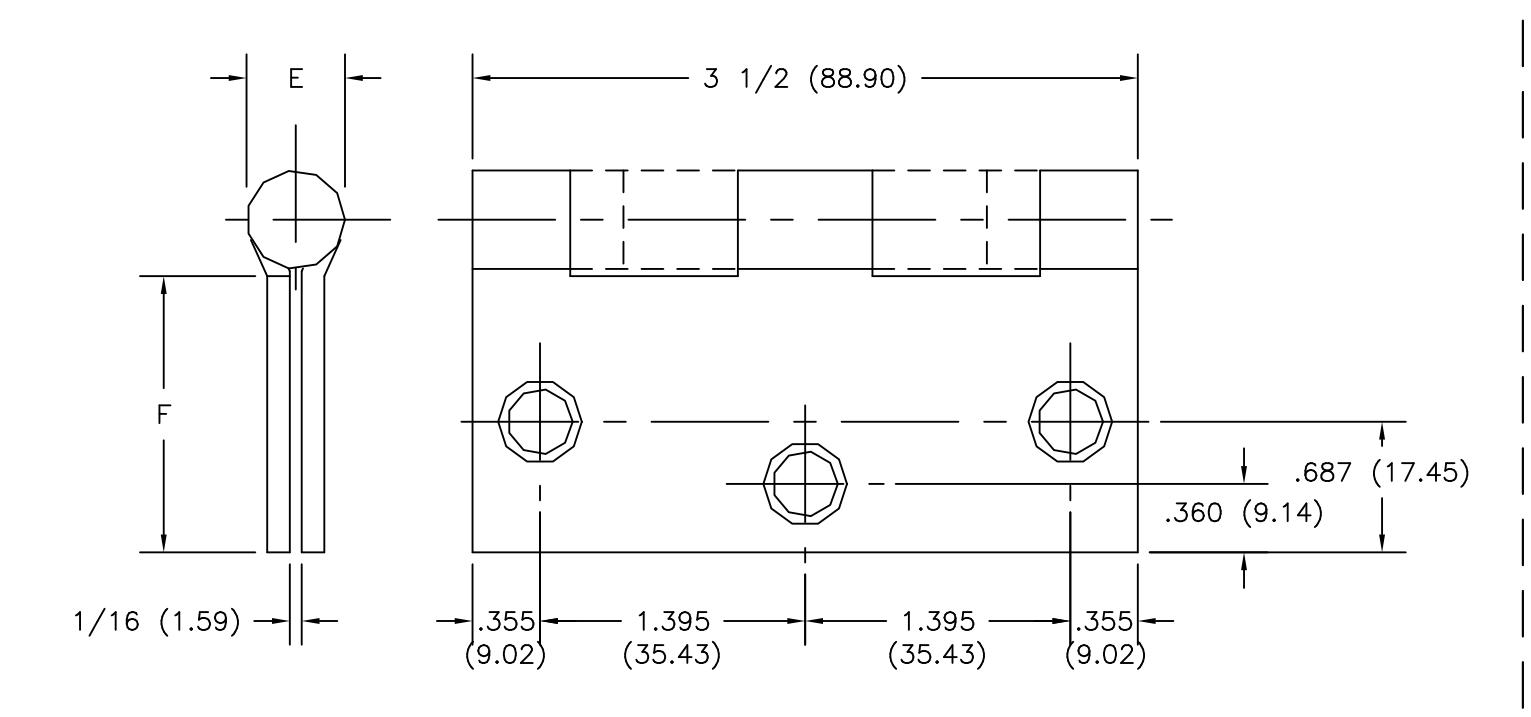

SIZES: 3 1/2 x 3 1/2 --- 3 1/2 x 5 --- 3 1/2 x 6 $(88.90 \times 88.90)$ $(88.90 \times 127.00)$ $(88.90 \times 152.40)$

-DO NOT SCALE-

CATALOG	NUMBER			(F) DISTANCE FRO	M EDGE OF LEAF	TO SWAGE LINE
	NON-		(E)
STEEL	FERROUS		KNÙĆKLE	3 1/2 x 3 1/2	3 1/2 x 5	3 1/2 x 6 (88.90 x 152.40)
HINGES	HINGES	GAUGE	DIAMETER	(88.90 x 88.90)	(88.90 x 127.00)	(88.90 x 152.40)
700	800	.119 (3.02)	19/32 (15.08)	1 5/16 (33.34)
1279	1191	.119 (3.02)	17/32 (13.49)	1 3/8 (34.93)	2 1/8 (53.98)	2 5/8 (66.68)
AB700	AB800	.119 (3.02)	19/32 (15.08)	1 5/16 (33.34)
BB1279	BB1191	.119 (3.02)	17/32 (13.49)	1 3/8 (34.93)	2 1/8 (53.98)	2 5/8 (66.68)

ALL NON-BRACKETED DIMENSIONS ARE IN INCHES, ALL BRACKETED DIMENSIONS ARE IN MILLIMETERS.

Machine Screw Size- $10-24 \times 1/2$ " F.H. WITH NO. 9 HEAD Wood Screw Size- No. 9 x 1" F.H.

Hospital type and round corner template hinges conform to the above screw size and location. They are designated by "HT" and "RC" to catalog number.

Hager template hinges are made in size and with screw holes located to conform to ANSI-A156.7.

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.

HAGER COMPANIES 139 VICTOR STREET P.O. BOX 12300 ST. LOUIS, MISSOURI 63157-0300

Template No. T304
