Full Mortise Template – T303
Open the original PDF document
View PDFTemplate No. T
303
'96 Rev.

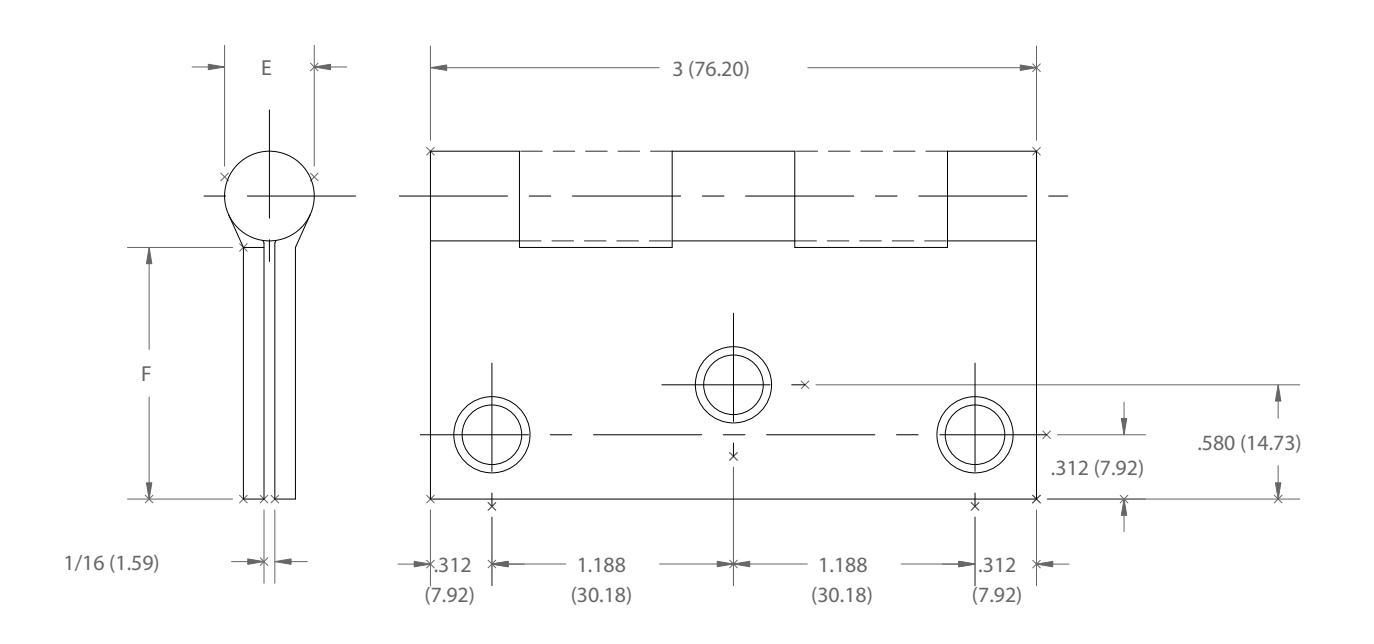

SIZE: 3 x 3 (76.20 x 76.20)
-DO NOT SCALE-
| CATALOG NUMBER |
(F)
DISTANCE FROM EDGE OF LEAF TO SWAGE LINE |
|||
|---|---|---|---|---|
| NON | (E) | |||
| STEEL | FERROUS | METAL | KNUCKLE | 3 x 3 |
| HINGES | HINGES | GAUGE | DIAMETER | (76.20 x 76.20) |
| 1279 | 1191 | SEE NOTE | 7/16 (11.11) | 1 3/16 (30.16) |
ALL NON-BRACKETED DIMENSIONS ARE IN INCHES, ALL BRACKETED DIMENSIONS ARE IN MILLIMETERS.
Machine Screw Size- 10-24 x 1/2" F.H. WITH NO. 9 HEAD Wood Screw Size- No. 9 x 1" F.H.
NOTE: Gauge for steel - .092 (2.34) Gauge for stainless steel - .085 (2.16) Gauge for brass - .094 (2.39)
Hospital type and round corner template hinges conform to the above screw size and location. They are designated by "HT" and "RC" to catalog number.
Hager template hinges are made in size and with screw holes located to conform to ANSI-A156.7.
HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.
HAGER COMPANIES 139 VICTOR STREET P.O. BOX 12300 ST. LOUIS, MISSOURI 63157-0300
