Full Mortise Template – T1102H-Rev01

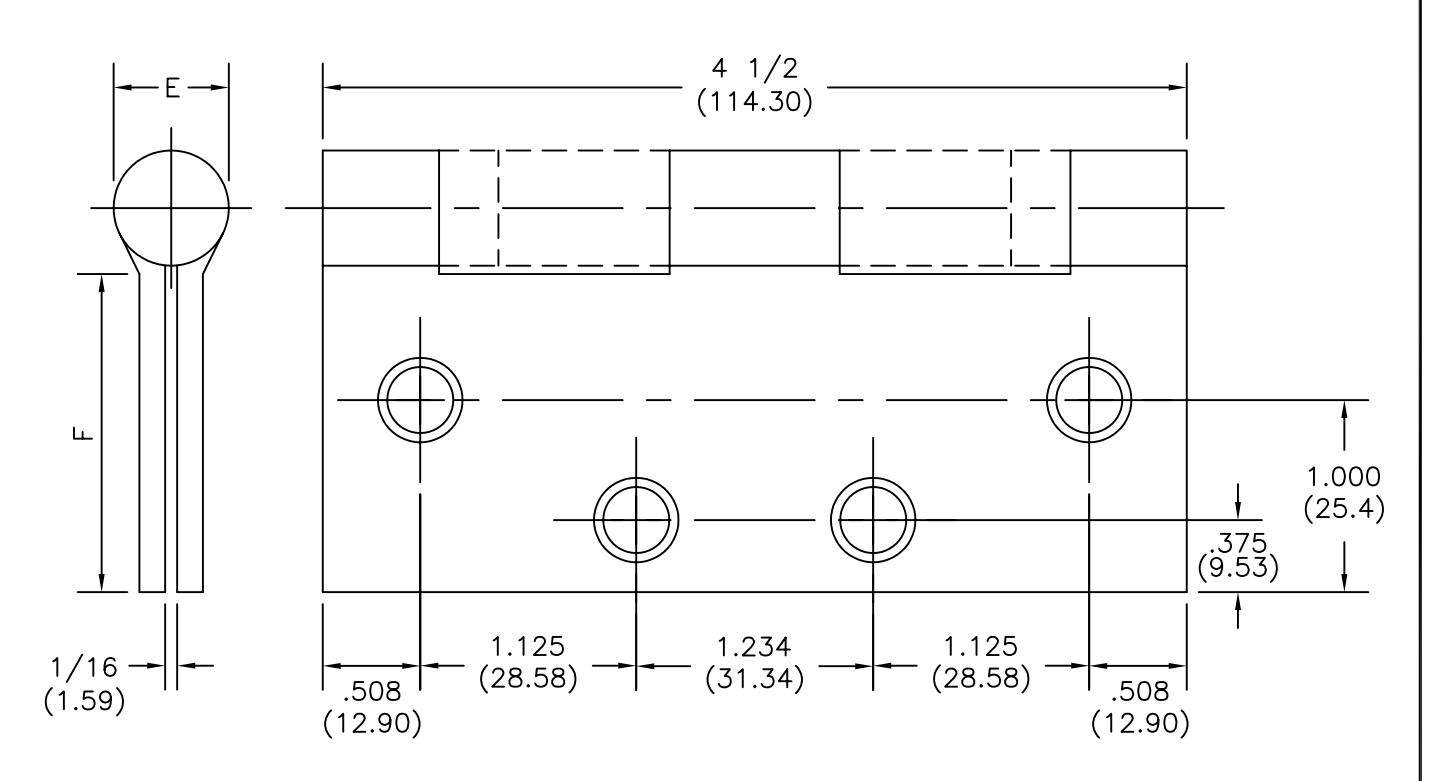

FULL MORTISE TEMPLATE HINGE

SIZES: 4 1/2 x 4 1/2 (114.30 x 114.30)

-DO NOT SCALE-

CATALOG	NUMBER			(F)	DISTANCE	FROM	EDGE	OF	LEAF	TO	SWAGE	LINE
	NON-		(E)
STEEL	FERROUS	METAL	KNUCKLE			4 1	/2 x	4 1	/2
HINGES	HINGES	GAUGE	DIAMETER			(114	.30 x	114	1.30)
ECBB1102	ECBB1103	.180 (4.57)	45/64 (17.86)			1 1	3/16	(46.	.04)

ALL NON-BRACKETED DIMENSIONS ARE IN INCHES, ALL BRACKETED DIMENSIONS ARE IN MILLIMETERS.

Machine Screw Size- $12-24\; \backslash times\; 1/2$ " F.H. Wood Screw Size- No. $12\; \backslash times\; 1\; \backslash cdot\; 1/4$ " F.H.

	HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE.				DESCRIPTION: ECCO HEAVY WEIGHT FULL MORTISE TEMPLATE HINGE
HAGER COMPANIES	NO.	REVISION	BY	DATE	PART NO.
St. Louis, MO 63104 1-800-325-9995	1	ECO CT05025	DH	01-23-06	T1102H
