Full Mortise Template – T1101-Rev02

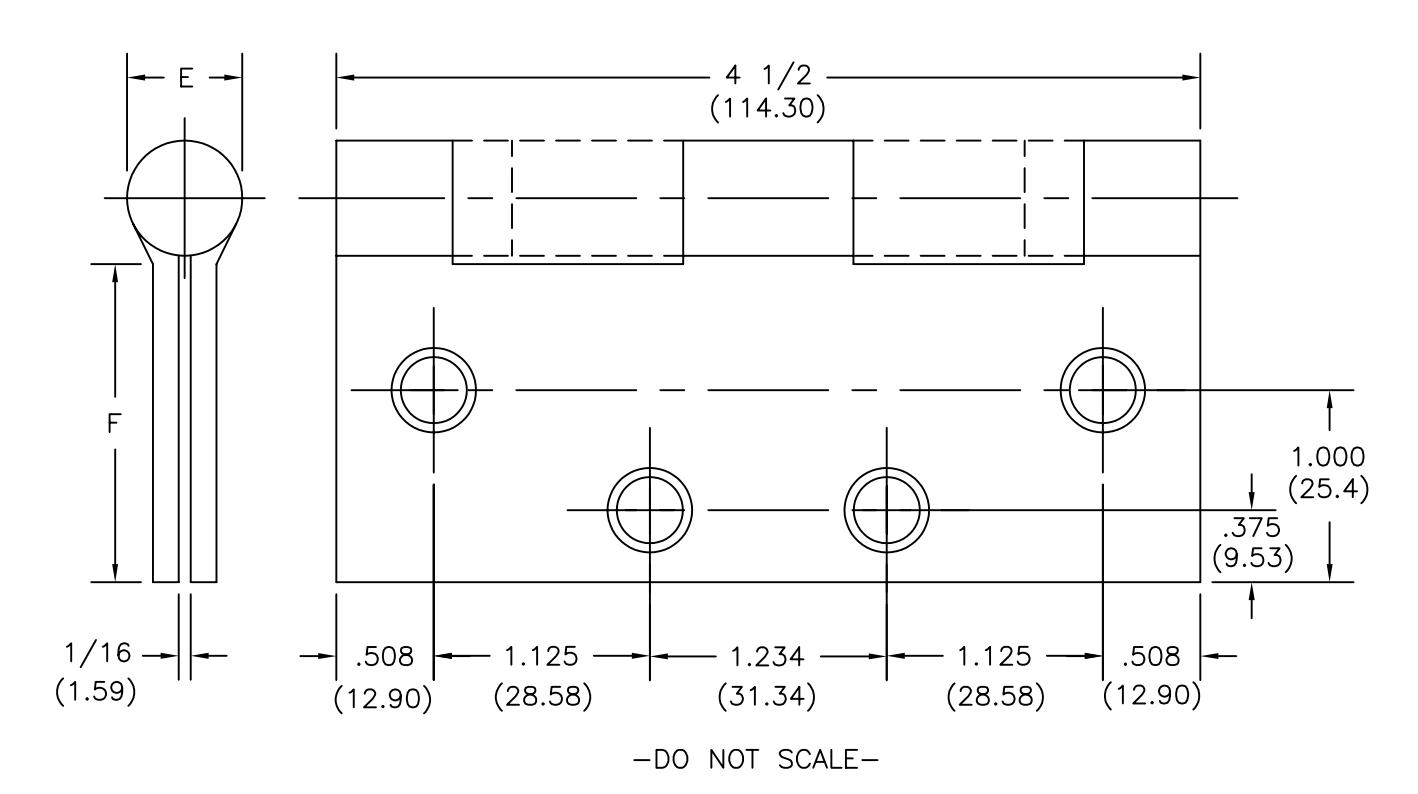

FULL MORTISE TEMPLATE HINGES

SIZE: 4 1/2 x 4 1/2 (114.30 x 114.30)

CATALOG NUMBER				(F) DISTANCE FROM EDGE
	NON-		(E)	OF LEAF TO SWAGE LINE
STEEL	FERROUS	METAL	KNÚĆKLE
HINGES	HINGES	GAUGE	DIAMETER	4 1/2 x 4 1/2 (114.30) x (114.30)
EC1100	EC1101	.134 (3.40)	39/64 (15.48)	1-7/8 (47.63)
ECBB1100	ECBB1101	.134 (3.40)	39/64 (15.48)	1-7/8 (47.63)

ALL NON-BRACKETED DIMENSIONS ARE IN INCHES, ALL BRACKETED DIMENSIONS ARE IN MILLIMETERS. Machine Screw Size- $12-24\; \backslash times\; 1/2$ " F.H. Wood Screw Size- No. $12\; \backslash times\; 1\; 1/4$ " F.H.

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE.

DESCRIPTION:

ECCO STANDARD WEIGHT FULL MORTISE TEMPLATE HINGE

NO.	REVISION	BY	DATE	PART	NO.
2	UPDATED DWG	DH	01-23-06

T1101
