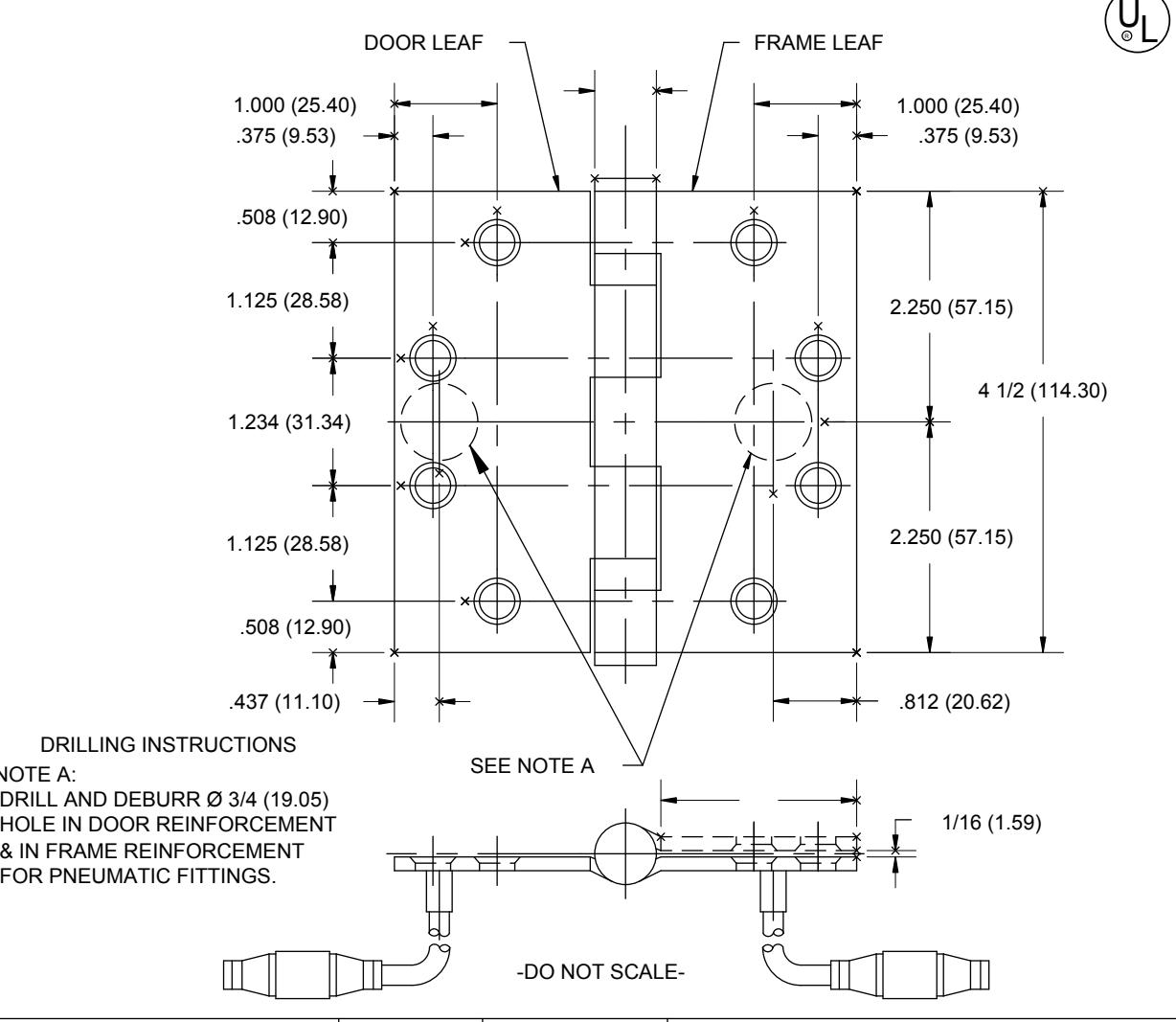

Full Mortise Template Air Transfer Template – T-625-Rev01

REV 1 5-22-00 RAM

SIZES: 4 1/2 x 4 -- 4 1/2 x 4 1/2 (114.30 x 101.60)

(114.30 x 114.30)

CATALOG NUMBER				(F) DISTANCE FROM EDGE OF LEAF TO
	NON		(E)	SWAGE LINE
STEEL	FERROUS	METAL	KNUCKLE	4 1/2 x 4	4 1/2 x 4 1/2
HINGES	HINGES	GAUGE	DIAMETER	(114.30 x 101.60)	(114.30 x 114.30)
BB1279-ATH	BB1191-ATH	.134 (3.40)	39/64 (15.48)	1 5/8 (41.28)	1 7/8 (47.63)
BB1168-ATH	BB1199-ATH	.180 (4.57)	45/64 (17.86)	1 9/16 (39.69)	1 13/16 (46.04)

ALL NON-BRACKETED DIMENSIONS ARE IN INCHES, ALL BRACKETED DIMENSIONS ARE IN MILLIMETERS. Machine Screw Size- 12-24 x 1/2" F.H.

NOTE A:

Wood Screw Size- No. 12 x 1 1/4" F.H.

Hospital type and round corner template hinges conform to the above screw size and location. They are designated by "HT" and "RC" to catalog number.

Hager template hinges are made in size, gauge and with screw holes located to conform to ANSI-A156.7.

DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.

HAGER RESERVES THE RIGHT TO MAKE HAGER COMPANIES

139 VICTOR STREET P.O. BOX 12300 ST. LOUIS, MISSOURI 63157-0300

T e m plate N o.
