Full Mortise Swing Clear Template Hinges – 5in t1362-Rev01

Template

1362

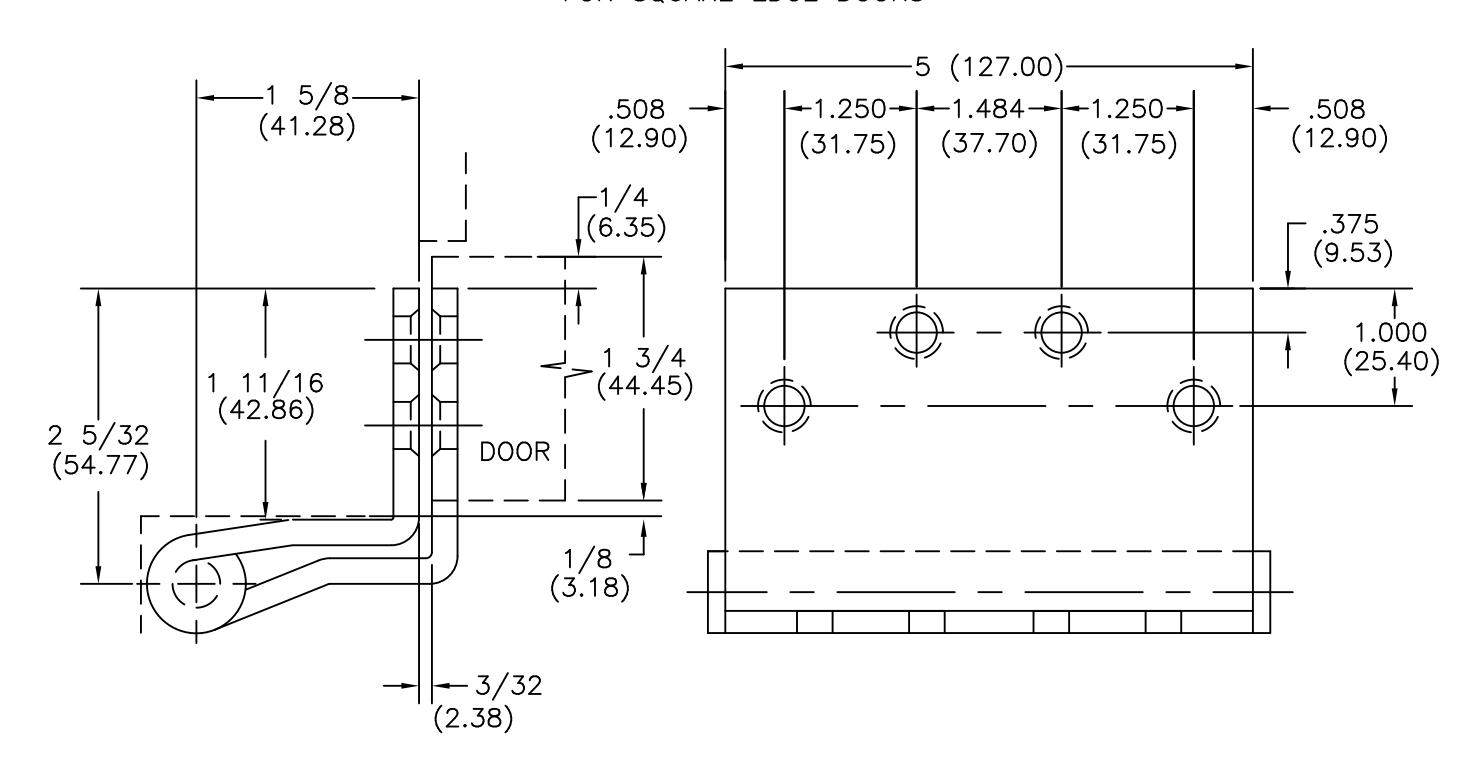

FULL MORTISE SWING CLEAR TEMPLATE HINGES

Template No. T1362 Rev. BY DATE 1 FOR COMPUTER SLJ 06.24.15

SIZE: 5 (127.00)

FOR SQUARE EDGE DOORS

-DO NOT SCALE-

CATALOG NUMBER
STEEL HINGES	NON- FERROUS HINGES	METAL GAUGE
BB1362	BB1362	.190 (4.83)

ALL NON-BRACKETED DIMENSIONS ARE IN INCHES, ALL BRACKETED DIMENSIONS ARE IN MILLIMETERS.

Machine Screw Size- $12-24\; \backslash times\; 1/2$ " F.H. Wood Screw Size- No. $12\; \backslash times\; 1\; 1/4$ " F.H.

Designed to swing doors completely clear of the opening when door is opened $95^\{\backslash circ\}$ . When opened $90^\{\backslash circ\}$ , door projects 11/64 (4.37) past stop of jamb.

NOTE: This hinge alters the normal pivot point of door. For door closers, friction or overhead door holders to be used in conjunction with this hinge, consult manufacturer of the device for application details.

Hospital type template hinges conform to the above screw size and location. They are designated by "HT" to catalog number.

Hager template hinges are made in gauge and with screw holes located to conform to ANSI-A156.7.

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.

HAGER COMPANIES 139 VICTOR STREET P.O. BOX 12300 ST. LOUIS, MISSOURI 63157-0300
