Full Mortise Slip Butt Template – T320-920

Rev. '96

SIZE: 4 1/2 x 4 --- 4 1/2 x 4 1/2 (114.30 x 101.60)

(114.30 x 114.30)

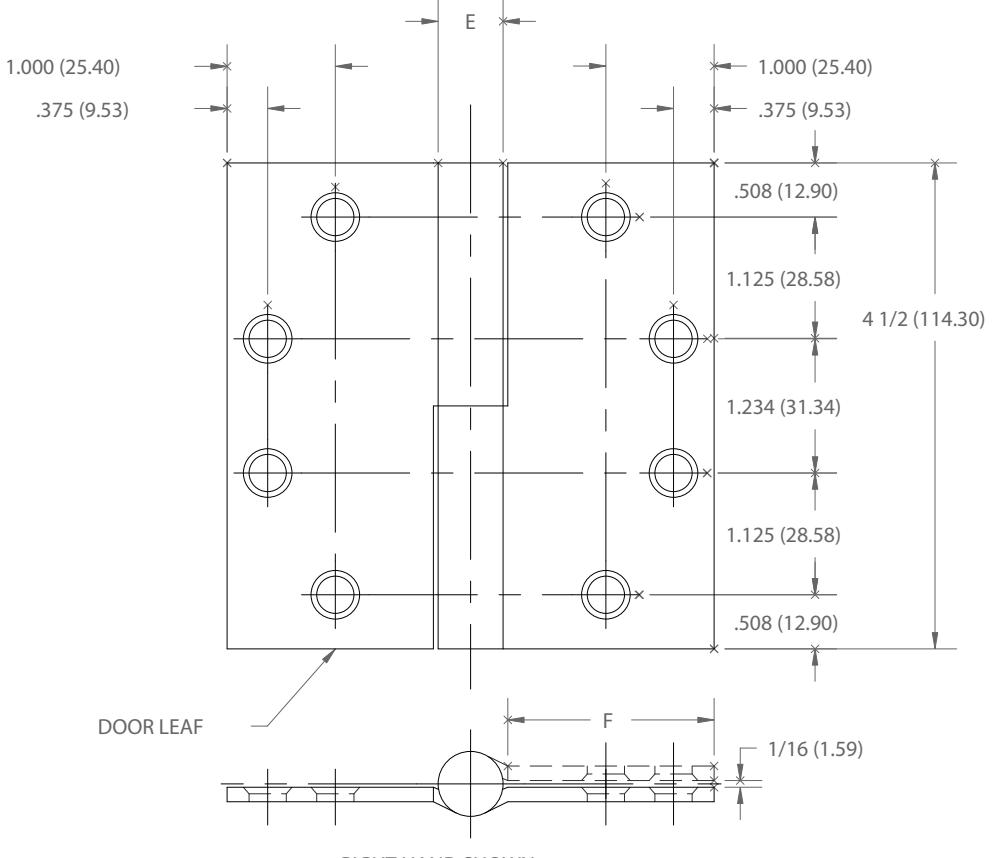

RIGHT HAND SHOWN -LEFT HAND OPPOSITE

-DO NOT SCALE-

CATALOG NUMBER				(F) DISTANCE FROM EDGE OF LEAF TO SWAGE LINE
	NON-		(E)
STEEL	FERROUS	METAL	KNUCKLE	4 1/2 x 4	4 1/2 x 4 1/2
HINGES	HINGES	GAUGE	DIAMETER	(114.30 x 101.60)	(114.30 x 114.30)
920		.134 (3.40)	19/32 (15.08)	1 5/8 (41.28)	1 7/8 (47.63)
AB920	AB923	.134 (3.40)	19/32 (15.08)	1 5/8 (41.28)	1 7/8 (47.63)
AB930		.180 (4.57)	11/16 (17.46)		1 7/8 (47.63)

$\{\backslash tt\; ALL\backslash ,NON-BRACKETED\backslash ,DIMENSIONS\backslash ,ARE\backslash ,IN\backslash ,INCHES,\backslash ,ALL\backslash ,BRACKETED\backslash ,DIMENSIONS\backslash ,ARE\backslash ,IN\backslash ,MILLIMETERS.\}$

Machine Screw Size- 12-24 x 1/2" F.H. Wood Screw Size- No. 12 x 1 1/4" F.H.

Hager template hinges are made in size, gauge and with screw holes located to conform to ANSI-A156.7.

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.

HAGER COMPANIES 139 VICTOR STREET P.O. BOX 12300 ST. LOUIS, MISSOURI 63157-0300
