Full Mortise Short Leaf Template – T-Short_Leaf
Open the original PDF document
View PDF

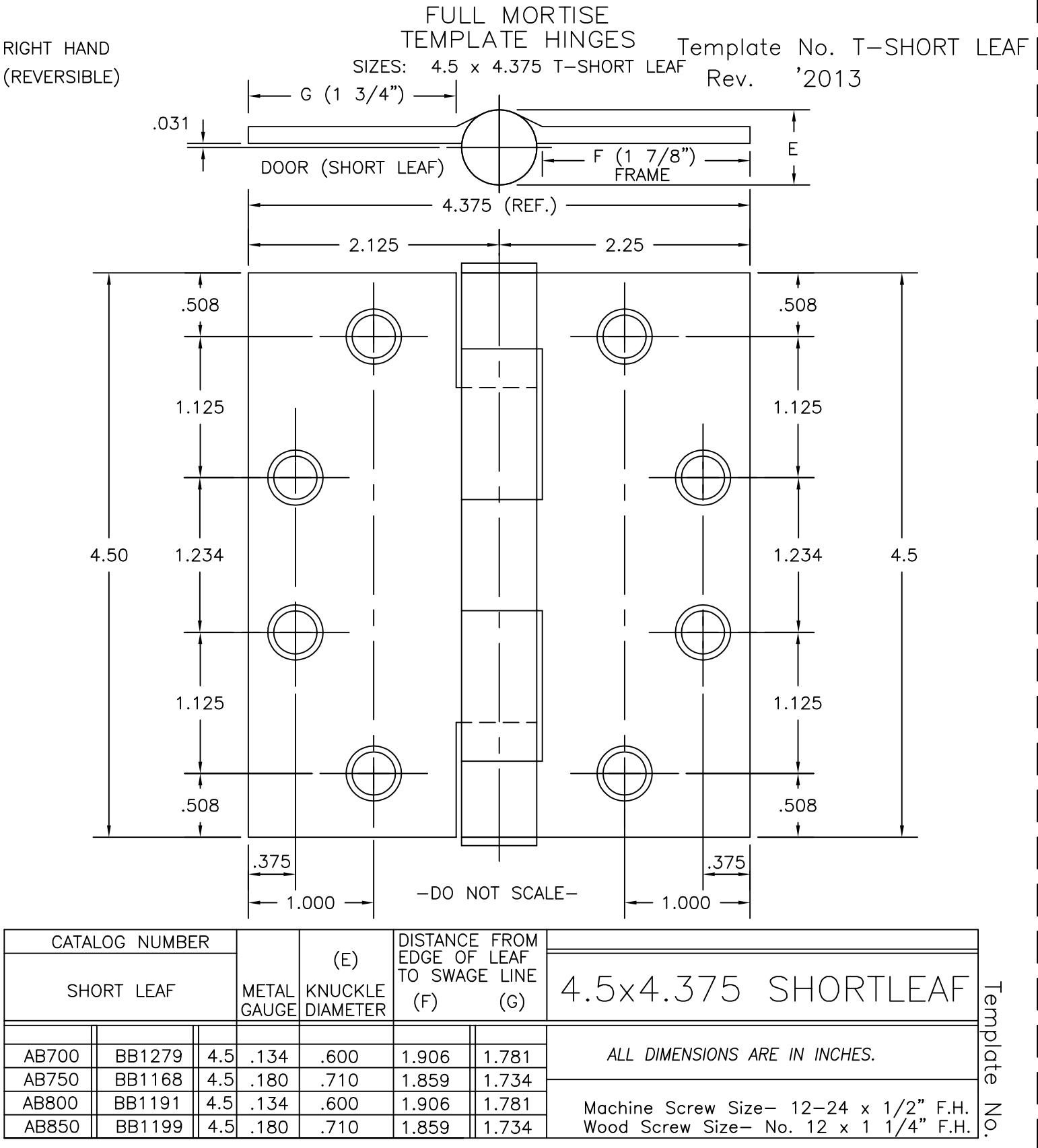

| SHORT LEAF |
(E)
KNUCKLE DIAMETER |
EDGE OF TO SWAG | - LEAF | 4.5×4.375 SHORTLEAF | |||
|---|---|---|---|---|---|---|---|
| AB700 | BB1279 | 4.5 | .600 | 1.906 | 1.781 | ALL DIMENSIONS ARE IN INCHES. | |
|
AB750
AB800 |
BB1168
BB1191 |
4.5 | .134 | .710 | 1.859 | 1.734 | Machine Screw Size- 12-24 x 1/2" F.H. |
| AB850 | BB1199 | 4.5 | .180 | .710 | 1.859 | 1.734 | Wood Screw Size- No. 12 x 1 1/4" F.H. |
Hospital type and round corner template hinges conform to the above screw size and location. They are designated by "HT" and "RC" to catalog number.
Hager template hinges are made in size, gauge and with screw holes located to conform to ANSI-A156.7.
HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.
HAGER COMPANIES 139 VICTOR STREET P.O. BOX 12300 ST. LOUIS, MISSOURI 63157-0300
T-SHORT LEAF
