Full Mortise SGL Acting Spring Hinge Template – 4in x 4in – T401

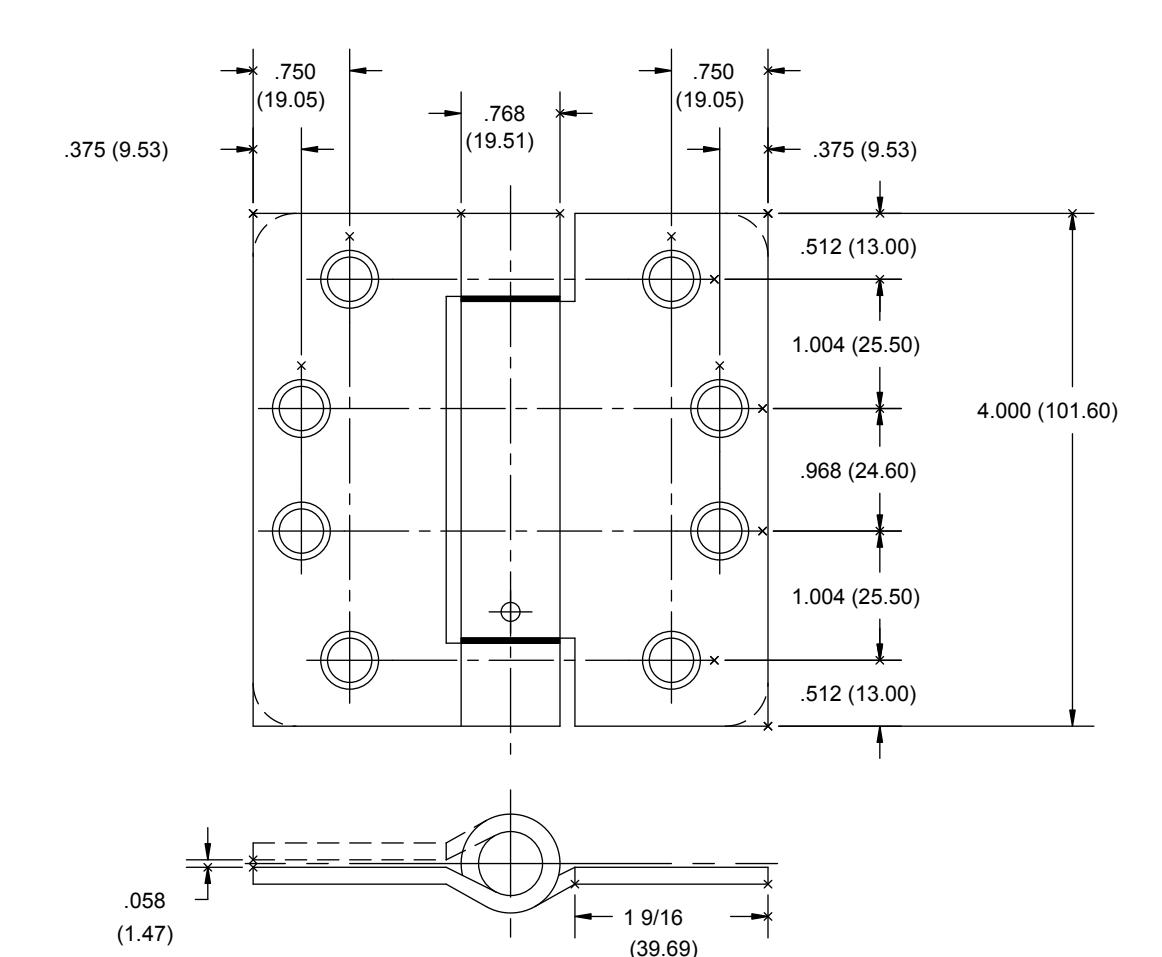

FULL MORTISE SINGLE ACTING SPRING TEMPLATE HINGES

Template No. T 401 Rev. '96

SIZE: 4 x 4 (101.60 x 101.60)

-DO NOT SCALE-

CATALOG NUMBER
STEEL HINGES	TYPICAL CORNER RADII	METAL GAUGE
1250	SQUARE	.131 (3.33)
1251	1/4 (6.35)	.131 (3.33)
1252	5/8 (15.88)	.131 (3.33)

ALL NON-BRACKETED DIMENSIONS ARE IN INCHES, ALL BRACKETED DIMENSIONS ARE IN MILLIMETERS.

Machine Screw Size- 12-24 x 1/2" F.H. Wood Screw Size- No. 12 x 1 1/4" F.H.

Hager testing conforms to ANSI-A156.17.

Hager template hinges are made in size, gauge and with screw holes located to conform to ANSI-A156.7.

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.

HAGER COMPANIES 139 VICTOR STREET P.O. BOX 12300 ST. LOUIS, MISSOURI 63157-0300

Template No. T
