Full Mortise Round Corners Template – T308RC

Open the original PDF document

Template No. T308RC Rev. '13

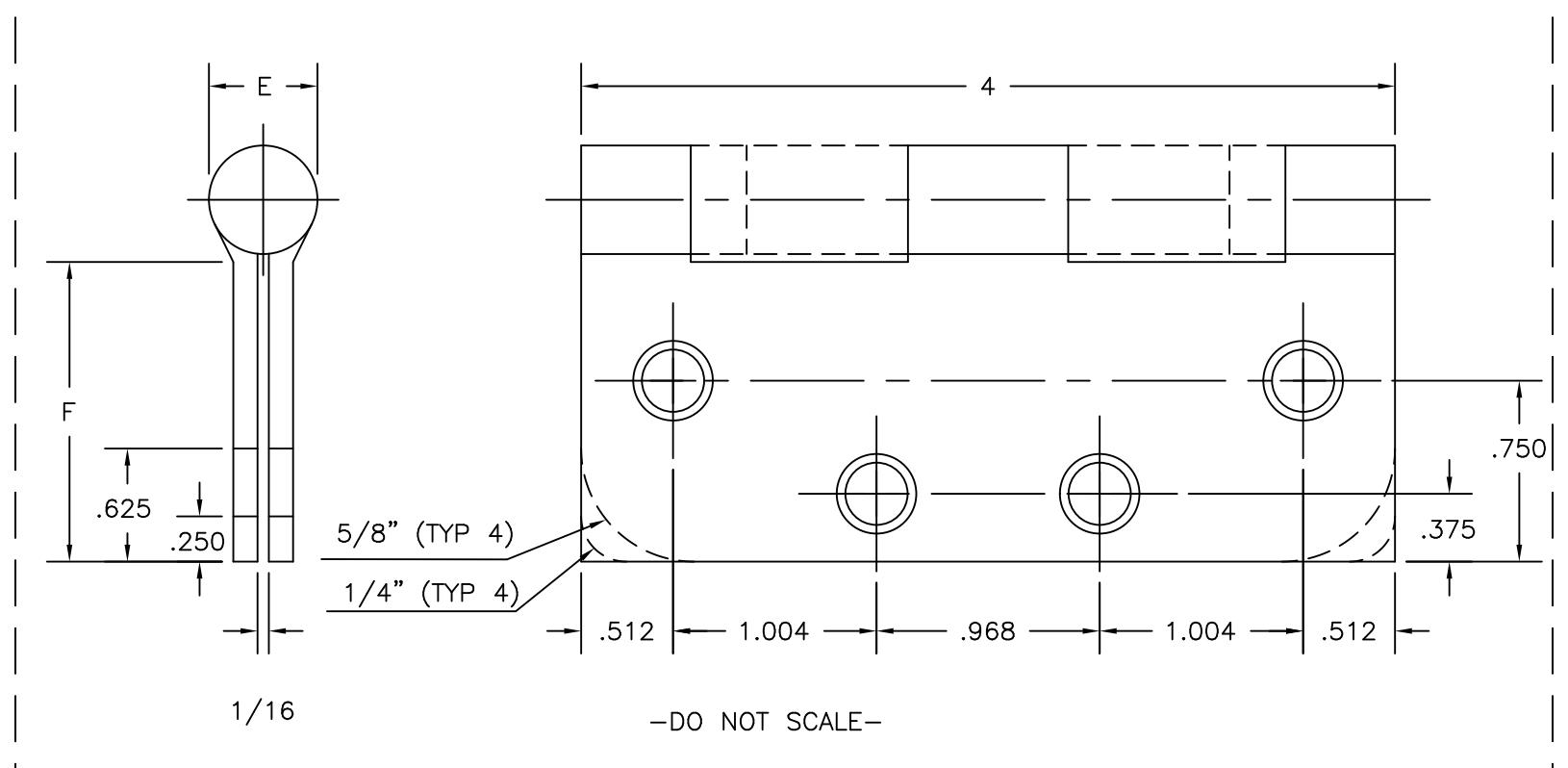

SIZES: $4 \times 4$ , $4 \times 5$ , $4 \times 6$ , $4 \times 7$

0.1711.00				/E) DICTANO		OF 1545 TO	CWAOE LINE
CATALOG	NOWREK			(F) DISTANC	E FROM EDGE	OF LEAF TO	SWAGE LINE
	NON-		(E)
STEEL	FERROUS	METAL	KNUCKLE
HINGES	HINGES	GAUGE	DIAMETER	4 x 4	4 x 5	4 × 6	4 × 7
700	800	.129	19/32	1 11/16
1279	1191	.129	35/64	1 11/16	2 3/16	2 11/16	3 3/16
AB700	AB800	.129	19/32	1 11/16
BB1279	BB1191	.129	35/64	1 11/16	2 3/16	2 11/16	3 3/16

ALL DIMENSIONS ARE IN INCHES.

Machine Screw Size- 12-24 x 1/2" F.H. Wood Screw Size- No. 12 x 1 1/4" F.H.

Hospital type and round corner template hinges conform to the above screw size and location. They are designated by "HT" and "RC" to catalog number.

Hager template hinges are made in size, gauge and with screw holes located to conform to ANSI—A156.7.

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.

HAGER COMPANIES 139 VICTOR STREET P.O. BOX 12300 ST. LOUIS, MISSOURI 63157-0300
