Full Mortise Reverse Safety Stud Template – T316-Rev02

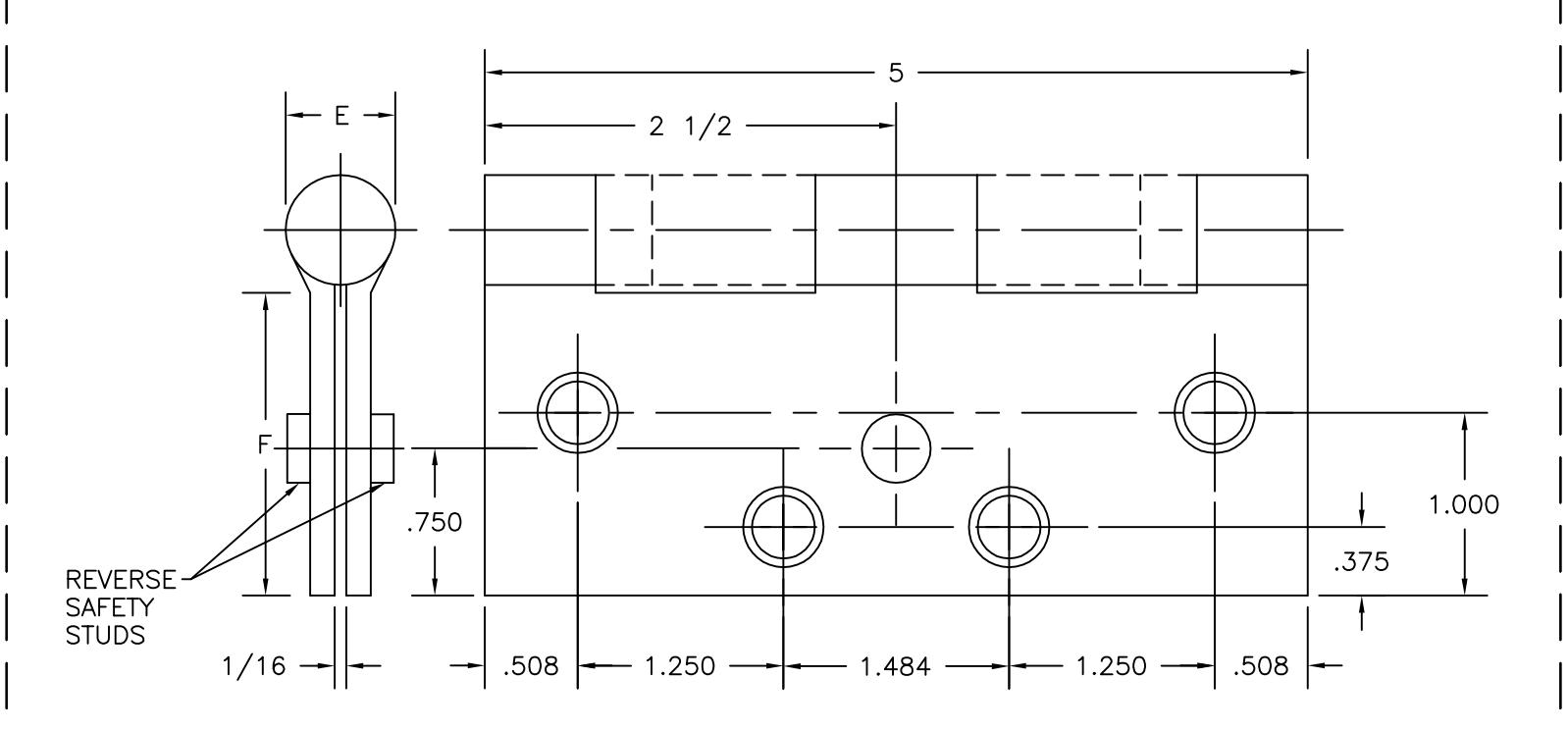

FULL MORTISE REVERSE SAFETY STUD TEMPLATE HINGES

Template No. T316

	'
REV. NO.	REVISIONS	BY	DATE
2	EC0 CT05083	RAM	12-14-05

SIZES: $5\; \backslash times\; 4$ , $5\; \backslash times\; 4$ 1/2, $5\; \backslash times\; 5$ , $5\; \backslash times\; 6$ , $5\; \backslash times\; 7$ , $5\; \backslash times\; 8$

-DO NOT SCALE-

DRILLING INSTRUCTIONS RECOMMEND Ø 5/8" HOLES IN JAMB AND DOOR REINFORCEMENTS FOR CLEARANCE OF REVERSE SAFETY STUDS.

CATALOG	NUMBER			(F) DI	STANCE FF	ROM EDGE	OF LEAF	TO SWAGE	LINE
STEEL HINGES	NON- FERROUS HINGES	METAL GAUGE	(E) KNUCKLE DIAMETER	5 x 4	5 x 4 1/2	5 x 5	5 x 6	5 x 7	5 x 8
700	800	.145	5/8	1 5/8	1 7/8	2 1/8
1279	1191	.145	41/64	1 5/8	1 7/8	2 1/8	2 5/8	3 1/8	3 5/8
AB700	AB800	.145	5/8	1 5/8	1 7/8	2 1/8	2 5/8	3 1/8	3 5/8
BB1279	BB1191	.145	41/64	1 5/8	1 7/8	2 1/8	2 5/8	3 1/8	3 5/8
AB750	AB850	.190	47/64	1 9/16	1 13/16	2 1/16	2 9/16	3 1/16	3 9/16
BB1168	BB1199	.190	47/64	1 9/16	1 13/16	2 1/16	2 9/16	3 1/16	3 9/16

ALL DIMENSIONS ARE IN INCHES.

Machine Screw Size- $12-24\; \backslash times\; 1/2$ " F.H. Wood Screw Size- No. $12\; \backslash times\; 1\; 1/4$ " F.H.

Hospital type and round corner template hinges conform to the above screw size and location. They are designated by "HT" and "RC" to catalog number.

Hager template hinges are made in size, gauge and with screw holes located to conform to ANSI-A156.7.

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.

HAGER COMPANIES 139 VICTOR STREET P.O. BOX 12300 ST. LOUIS, MISSOURI 63157-0300
