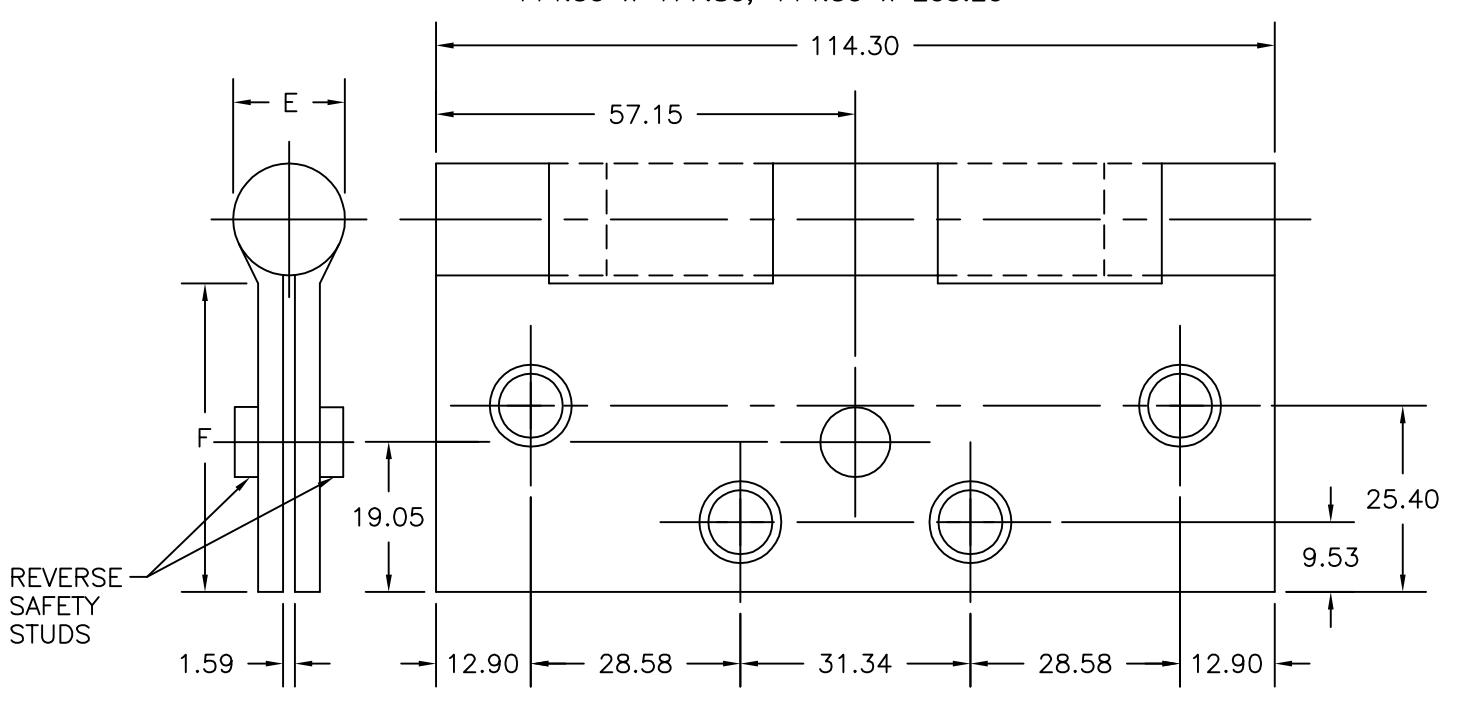

View PDFFULL MORTISE REVERSE SAFETY STUD TEMPLATE HINGES
Template No. T312M
| REV. NO. | REVISIONS | BY | DATE |
|---|---|---|---|
| 2 | EC0 CT05083 | RAM | 12-14-05 |
SIZES: 114.30 x 101.60, 114.30 x 114.30 x 127.00, 114.30 x 152.40, 114.30 x 177.80, 114.30 x 203.20
-DO NOT SCALE-
DRILLING INSTRUCTIONS
RECOMMEND Ø 15.88 mm HOLES IN JAMB AND DOOR REINFORCEMENTS FOR CLEARANCE OF REVERSE SAFETY STUDS.
| CATALOG | NUMBER | (F) DI | STANCE FF | ROM EDGE | OF LEAF | TO SWAGE | LINE | ||
|---|---|---|---|---|---|---|---|---|---|
| NON- | (E) | ||||||||
| STEEL | FERROUS | METAL | 114.30 x | 114.30 x | 114.30 x | 114.30 x | 114.30 x | 114.30 x | |
| HINGES | HINGES | GAUGE | DIAMETER | 101.60 | 114.30 | 127.00 | 152.40 | 177.80 | 203.20 |
| 700 | 800 | 3.40 | 15.48 | 41.28 | 47.63 | ||||
| 1279 | 1191 | 3.40 | 15.48 | 41.28 | 47.63 | 53.98 | 66.68 | 79.38 | 92.08 |
| AB700 | AB800 | 3.40 | 15.48 | 41.28 | 47.63 | ||||
| BB1174 | BB1193 | 3.40 | 15.48 | 34.93 | 41.28 | ||||
| BB1279 | BB1191 | 3.40 | 15.48 | 41.28 | 47.63 | 53.98 | 66.68 | 79.38 | 92.08 |
| AB750 | AB850 | 4.57 | 17.86 | 39.69 | 46.04 | 52.39 | 65.09 | 77.79 | 90.49 |
| BB1168 | BB1199 | 4.57 | 17.86 | 39.69 | 46.04 | 52.39 | 65.09 | 77.79 | 90.49 |
ALL DIMENSIONS ARE IN MILLIMETERS.
Machine Screw Size- " F.H. Wood Screw Size- No. " F.H.
Hospital type and round corner template hinges conform to the above screw size and location. They are designated by "HT" and "RC" to catalog number.
Hager template hinges are made in size, gauge and with screw holes located to conform to ANSI—A156.7.
HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.
HAGER COMPANIES 139 VICTOR STREET P.O. BOX 12300 ST. LOUIS, MISSOURI 63157-0300
