Full Mortise Res – 3in x 3in Template – T1541-Rev1A

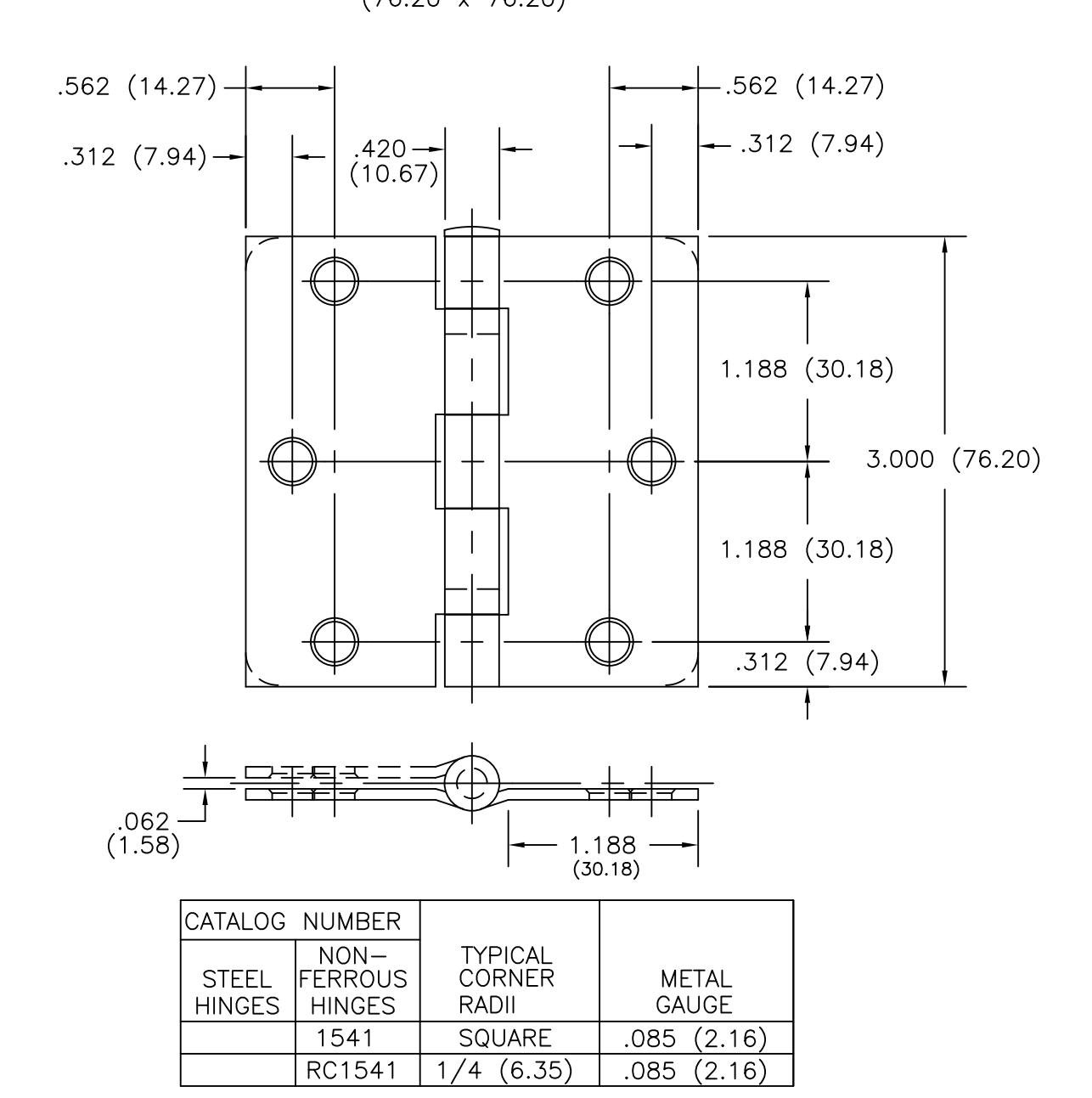

FULL MORTISE, BB OR BUTT RESIDENTIAL HNGE SIZE: 3 x 3 (76.20 x 76.20)

ALL NON-BRACKETED DIMENSIONS ARE IN INCHES. ALL BRACKETED DIMENSIONS ARE IN MILLIMETERS. -DO NOT SCALE-

H	HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE.				DESCRIPTION: FULL MORTISE RESIDENTIAL HINGE TEMPLATE
HAGER COMPANIES 139 Victor St.	NO.	REVISION	BY	DATE	PART NO.
St. Louis, MO 63104 1-800-325-9995	1A	ADDED BB	SLJ	05.30.17	T-1541 3X3
