Full Mortise Res 3.5in x 3.5in SGL Acting Spring Template – T404-Rev04

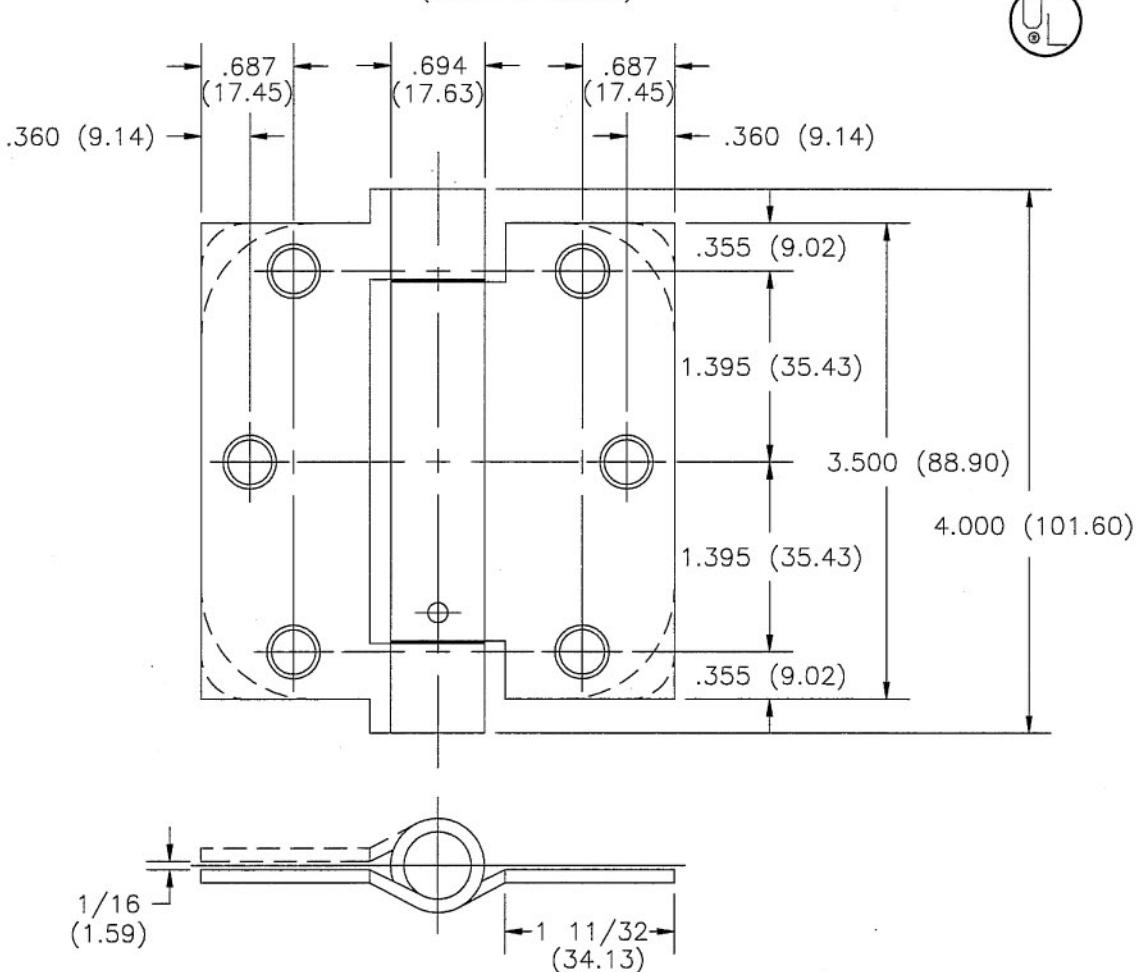

SIZE: 3 1/2 x 3 1/2 (88.90 x 88.90)

-DO NOT SCALE-

CATALOG NUMBER STEEL HINGES	TYP CORNER RADII	METAL GAUGE
1750	SQUARE	.097 (2.46)
1751	1/4 (6.35)	.097 (2.46)
1752	5/8 (15.88)	.097 (2.46)

ALL NON-BRACKETED DIMENSIONS ARE IN INCHES, ALL BRACKETED DIMENSIONS ARE IN MILLIMETERS.

Machine Screw Size— $10-24\; \backslash times\; 1/2$ " WITH NO. 9 HEAD Wood Screw Size— No. 9 x 3/4" F.H.

Hager testing conforms to ANSI-A156.17.
