FULL MORTISE ETW ELECTRIC HINGE TEMPLATE
SIZE: 5" FOR SQUARE EDGE DOORS
ETW MAXIMUM ELECTRICAL RATING CONTACT THROUGH WIRE VOLTS 48V DC/AC AMPERES 3.5A CONTINUOUS CURRENT 16.0A CURRENT INRUSH (300 MILLISECONDS)
|
AB7501

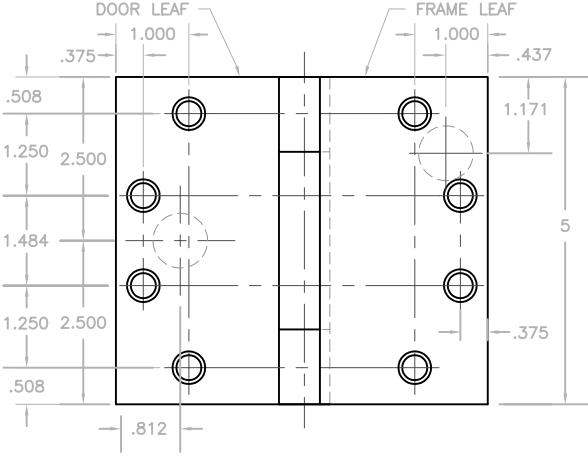

ALL DIMENSIONS AR |
.190 |
|---|---|
| STEEL HINGES | GAUGE |
| CATALOG NUMBER | METAL |
| CATALOG NUMBER |
DOOR AND FRAME PREPARATION
DOOR PREPARATION DRILL AND DEBURR Ø 3/4" HOLE IN DOOR REINFORCEMENT FOR THROUGH WIRES
FRAME PREPARATION

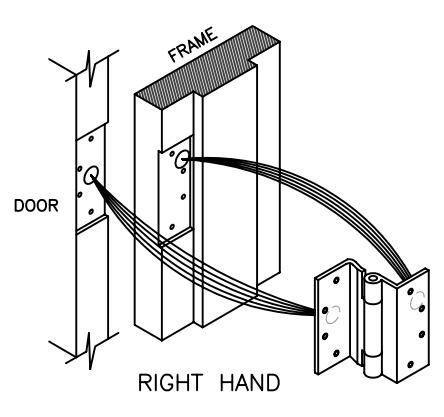

- RIGHT HAND INSTALLATION— DRILL AND DEBURR Ø 3/4" HOLE FOR THROUGH WIRES IN FRAME REINFORCEMENT PLATE ON UPPER RIGHT.

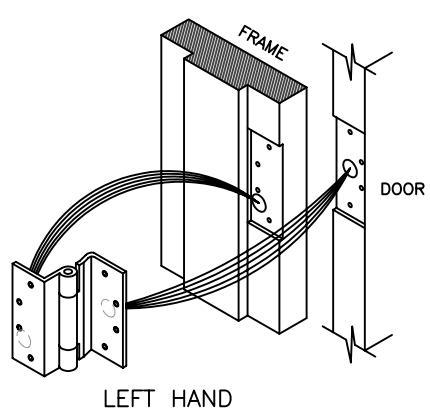

- LEFT HAND INSTALLATION— DRILL AND DEBURR Ø 3/4" HOLE FOR THROUGH WIRES IN FRAME REINFORCEMENT PLATE ON BOTTOM LEFT.
INSTALLATION
FAILURE TO FOLLOW THESE INSTRUCTIONS WILL VOID WARRANTY.
- Attach wires from hinge to the appropriate wires as described in the wiring diagram supplied for your project by others.
- Insulate bare ends of any unused wires.
- Check the fit of the hinge in the door and frame preparation. Hinge must fit easily in the mortise and not bind when fully installed. Forcing the hinge into a faulty preparation by hammering or bending can cause serious damage and/or shortened life.
- Carefully slide wires back through the access holes in the door and frame. Make sure that the wires are placed so they will not be cut or pinched as installation is completed.
- Do not remove pin or attempt to disassemble hinge. Electric hinges should always be installed in the center hinge location.
- For grout filled frame use Hager mortar box.

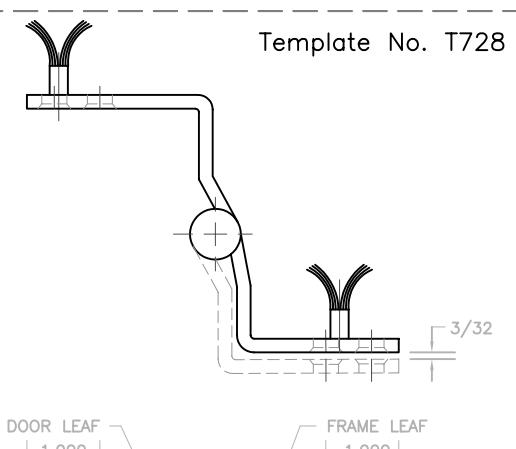

- Designed to swing doors completely clear of the opening when door is opened 95°. When opened 90°, door projects 11/64 (4.37mm) past stop of jamb.
- This hinge alters the normal pivot point of door. For door closers, friction or overhead door holders to be used in conjunction with this hinge, consult manufacturer of the device for application details.
- Hospital type template hinges conform to the above screw size and location, and they are designated by adding "HT" to catalog number.
- Hager template hinges are made within gauge and with screw holes located to conform to ANSI-A156.7.
- Machine Screw Size- #12-24 x 1/2" F.H.
- Wood Screw Size- #12 x 1 1/4" F.H.
| FRAME LEAF | DOOR LEAF | □ RED | |||
|---|---|---|---|---|---|
| YELLOW | i | YELLOW |
4
WIRE |
||
| VIOLET | VIOLET | ||||
| - GRAY | GRAY | - 6 | |||
| WHITE WITH GRAY STRIPES | i | WHITE WITH GRAY STRIPES | WIRE | ||
| WHITE WITH RED STRIPES | WHITE WITH RED STRIPES | WIRE 10 WIRE 12 WIRE WIRE WIRE | |||
| WHITE WITH VIOLET STRIPES | WHITE WITH VIOLET STRIPES | ||||
| WHITE WITH YELLOW STRIPE | s | i | WHITE WITH YELLOW STRIPES | ||
| BLUE | BLUE | ||||
| BROWN | BROWN | ||||
| ORANGE | ORANGE | ||||
| WHITE WITH GREEN STRIPES | WHITE WITH GREEN STRIPES | ||||
| L | j |
-DO NOT SCALE-
No. REVISION BY DATE 0 2 ECO CT04020 RAM 1-11-05
