Full Mortise Anchor – SQ and Bevel Dr Edge – T-325
Open the original PDF document
View PDFNOTE: FOR TOP HINGE LOCATION ONLY. INSTALL STANDARD FULL MORTISE 5 X 4.5" HEAVY WEIGHT HINGES AT CENTER AND BOTTOM HINGE LOCATIONS.
| CATALOG NUMBERS | ) 4ET 4 I | |
|---|---|---|
|
STEEL
HINGES |
NON-FERROUS
HINGES |
METAL
GAUGE |
| BB1160 | BB1190 | .190 |
| AB7505 | AB8505 | .190 |
SCREWS
MACHINE - 12-24 X 1/2" FLAT HEAD WOOD - NO. 12 X 1-1/4" FLAT HEAD

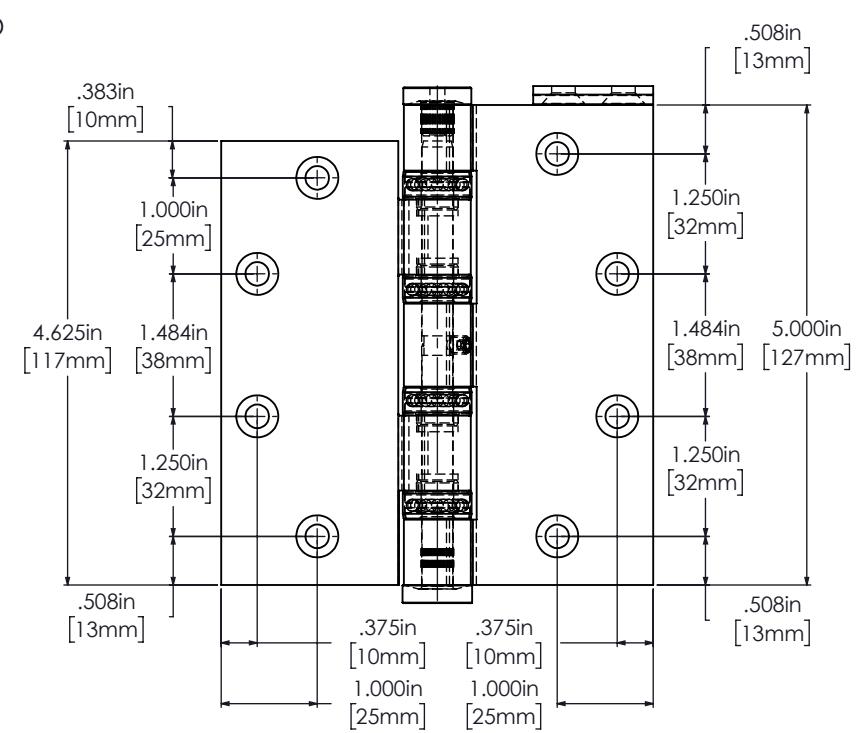

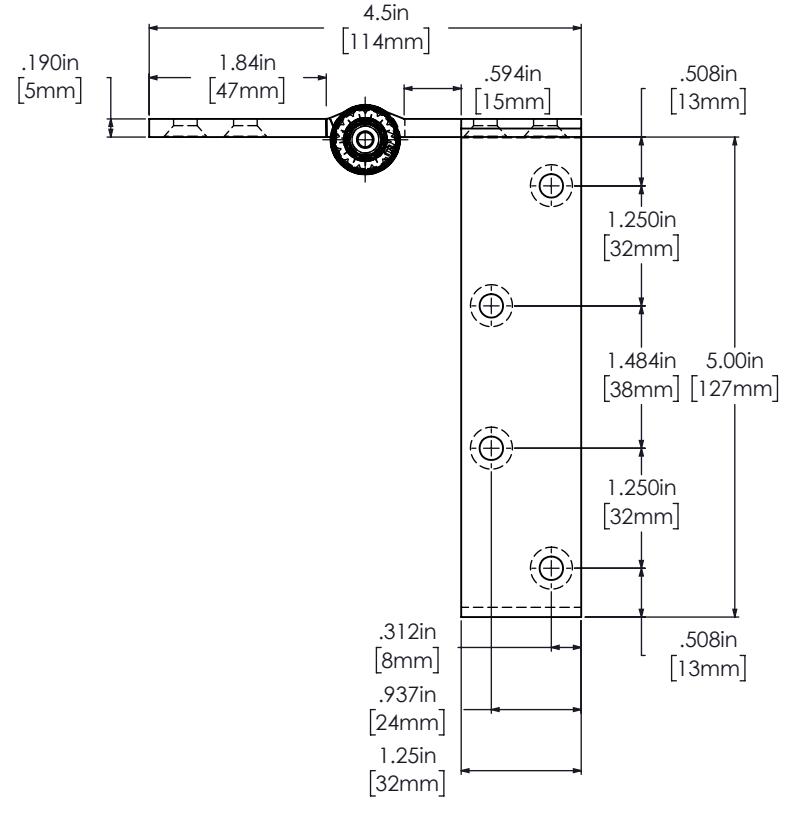

RIGHT HAND SHOWN LEFT HAND OPPOSITE
NOT TO SCALE
