T e m plate N o. T

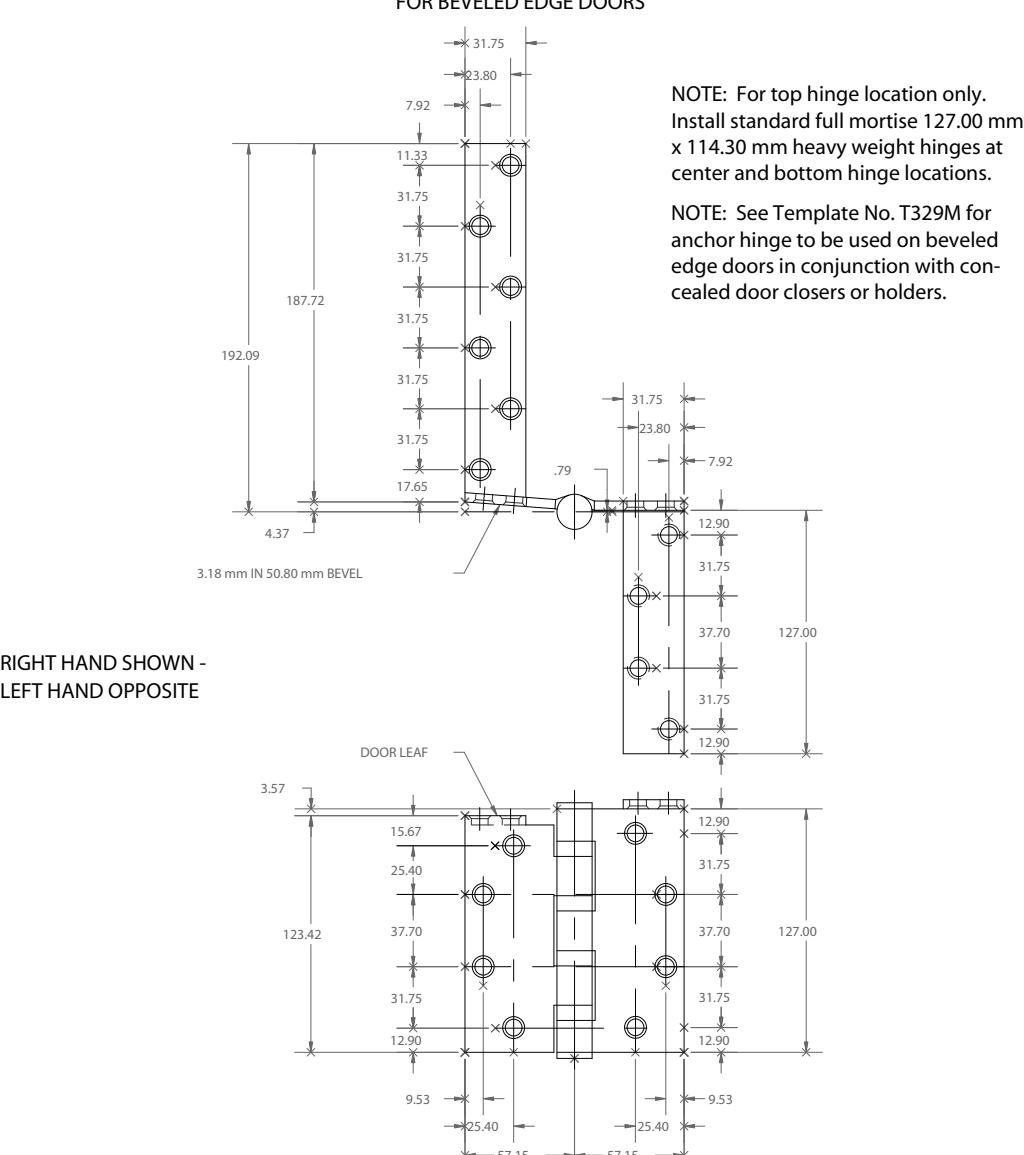

ANCHOR TEMPLATE HINGES FULL MORTISE

SIZE: 127.00 x 114.30

FOR BEVELED EDGE DOORS

-DO NOT SCALE-

CATALOG NUMBER
	STEEL HINGES	NON FERROUS HINGES	METAL GAUGE
	BB1166	BB1196	4.83
	AB7508	AB8508	4.83

114.30

ALL DIMENSIONS ARE IN MILLIMETERS.

Machine Screw Size- 12-24 x 1/2" F.H. Wood Screw Size- No. 12 x 1 1/4" F.H.

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.

HAGER COMPANIES 139 VICTOR STREET P.O. BOX 12300 ST. LOUIS, MISSOURI 63157-0300
