Full Mortise Anchor Hinges – 127mm x 114mm Template – T-327M-Rev01

1/11/00 RAM

Template No. T

Rev.

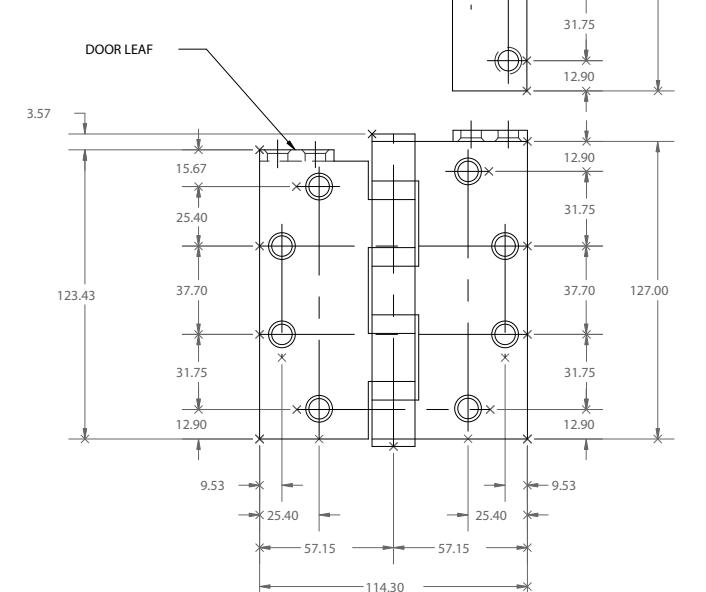

TEMPLATE ANCHOR HINGES FULL MORTISE

SIZES: 127.00 x 114.30

FOR SQUARE EDGE DOORS

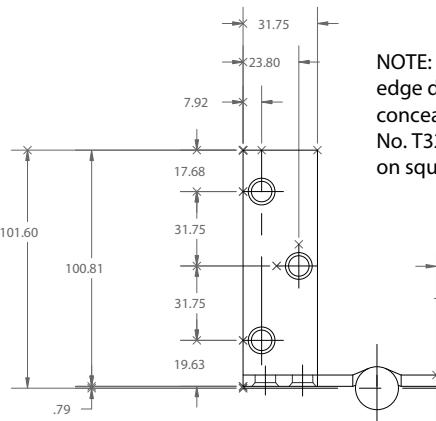

on square edge doors. No. T326M for standard anchor hinge to be used concealed door closers or holders. See Template edge doors only when same are equipped with NOTE: This anchor hinge is used on square

7.92

12.90

127.00

23.80 31.75

heavy weight hinges at center and bottom hinge standard full mortise 127.00 mm x 114.30 mm NOTE: For top hinge location only. Install locations.

RIGHT HAND SHOWN - LEFT HAND OPPOSITE

-DO NOT SCALE-

CATALOG NUMBER
STEEL HINGES	NON- FERROUS HINGES	METAL GAUGE
BB1165	BB1195	4.83
AB7507	AB8507	4.83

ALL DIMENSIONS ARE IN MILLIMETERS.

Wood Screw Size- No. 12 x 1 1/4" F.H. Machine Screw Size- 12-24 x 1/2" F.H.

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.

HAGER COMPANIES HAGER COMPANIES

139 VICTOR STREET P.O. BOX 12300 ST. LOUIS, MISSOURI 63157-0300
