Full Mortise Anchor Hinges – 127mm Template – T329M
Open the original PDF document
View PDF'96 Rev.

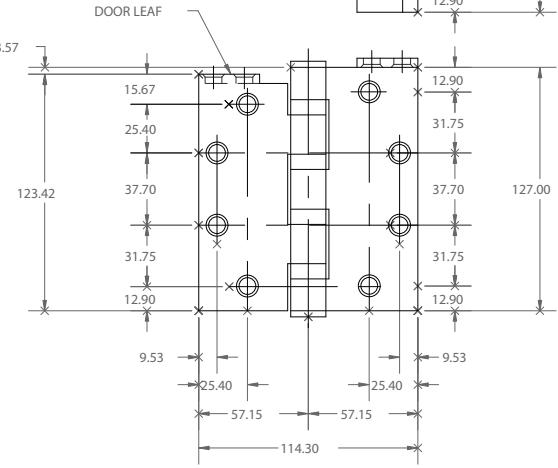

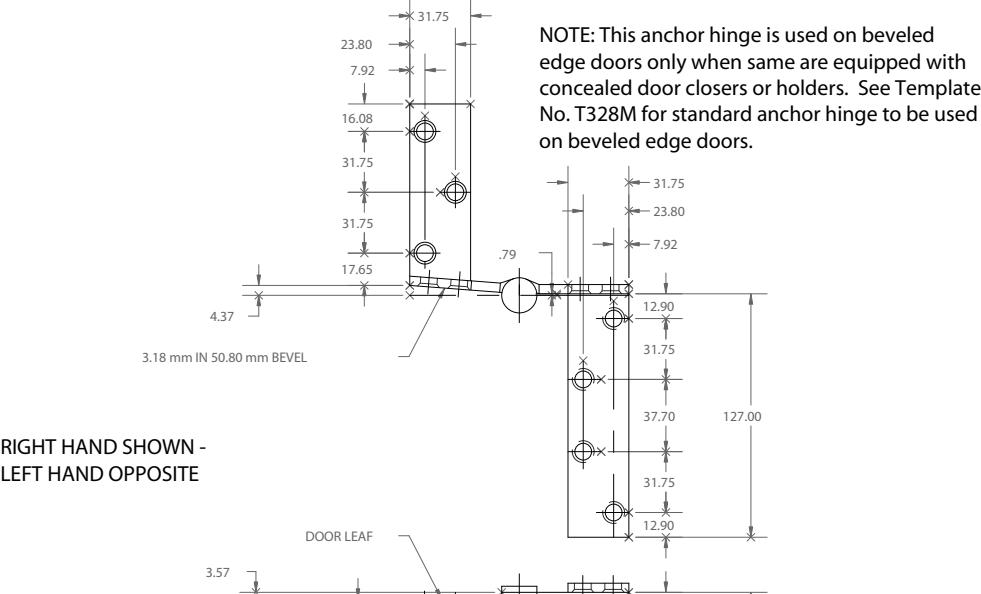

SIZE: 127.00 x 114.30 FOR BEVELED EDGE DOORS
heavy weight hinges at center and bottom hinge standard full mortise 127.00 mm x 114.30 mm NOTE: For top hinge location only. Install locations.
-DO NOT SCALE-
| CATALOG NUMBER | ||
|
STEEL
HINGES |
NON
FERROUS HINGES |
METAL
GAUGE |
| BB1167 | BB1197 | 4.83 |
| AB7509 | AB8509 | 4.83 |
ALL DIMENSIONS ARE IN MILLIMETERS.
Wood Screw Size- No. 12 x 1 1/4" F.H. Machine Screw Size- 12-24 x 1/2" F.H.
HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.
HAGER COMPANIES 139 VICTOR STREET P.O. BOX 12300 ST. LOUIS, MISSOURI 63157-0300
