Full Mortise Anchor Hinge SQ Dr Edge – T-327

FOR SQUARE EDGE DOORS

NOTE: FOR TOP HINGE LOCATION ONLY. INSTALL STANDARD FULL MORTISE 5 X 4.5" HEAVY WEIGHT HINGES AT CENTER AND BOTTOM HINGE LOCATIONS.

NOTE: THIS ANCHOR HINGE IS USED ON SQUARE EDGE DOORS WHEN EQUIPPED WITH CONCEALED DOOR CLOSERS OR HOLDERS. SEE T-326 FOR STANARD ANCHOR HINGE TO BE USED ON SQUARE EDGE DOORS.

CATALOG NUMBERS		λΛΕΤΔΙ
STEEL	NON-FERROUS	GAUGE
HINGES	HINGES
BB1165	BB1195	.190
AB7507	AB8507	.190

SCREWS MACHINE - 12-24 X 1/2" FLAT HEAD WOOD - NO. 12 X 1-1/4" FLAT HEAD

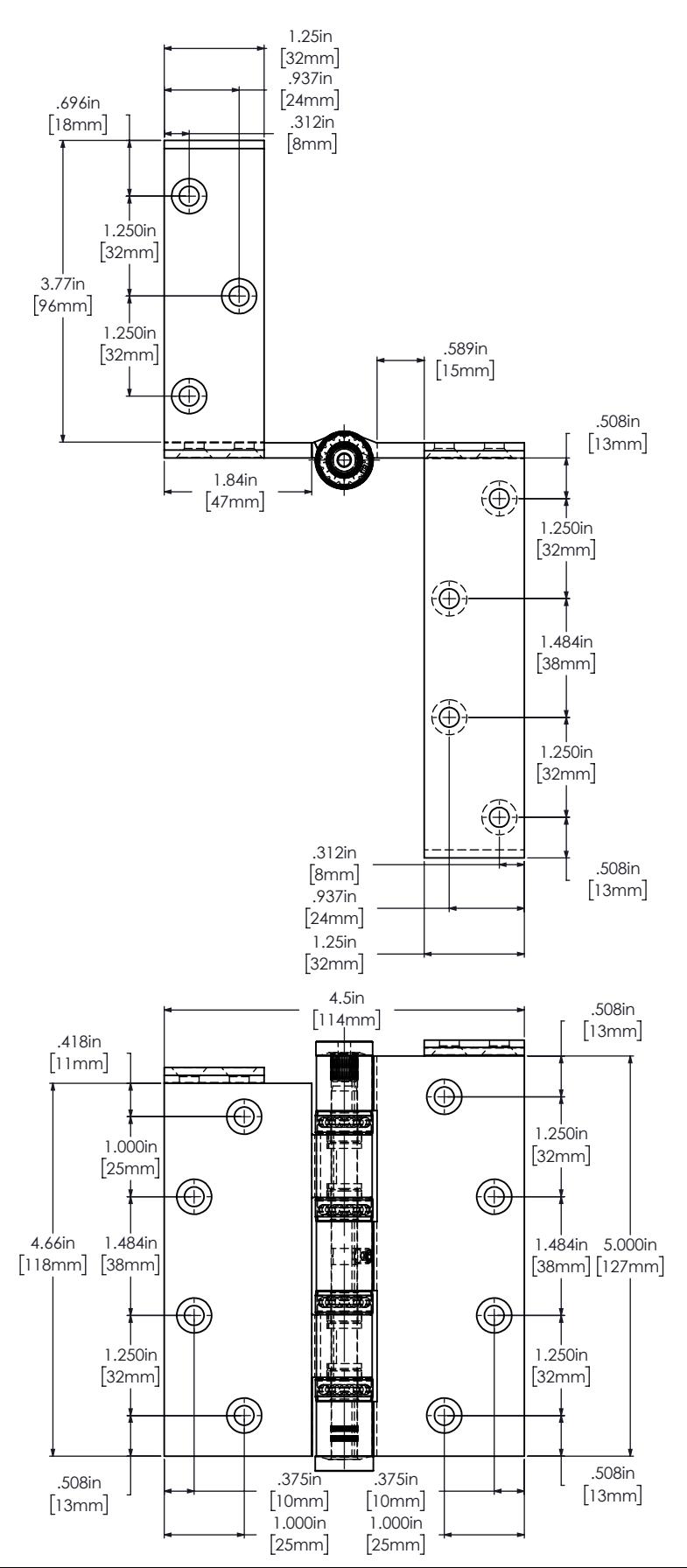

RIGHT HAND SHOWN LEFT HAND OPPOSITE

NOT TO SCALE
