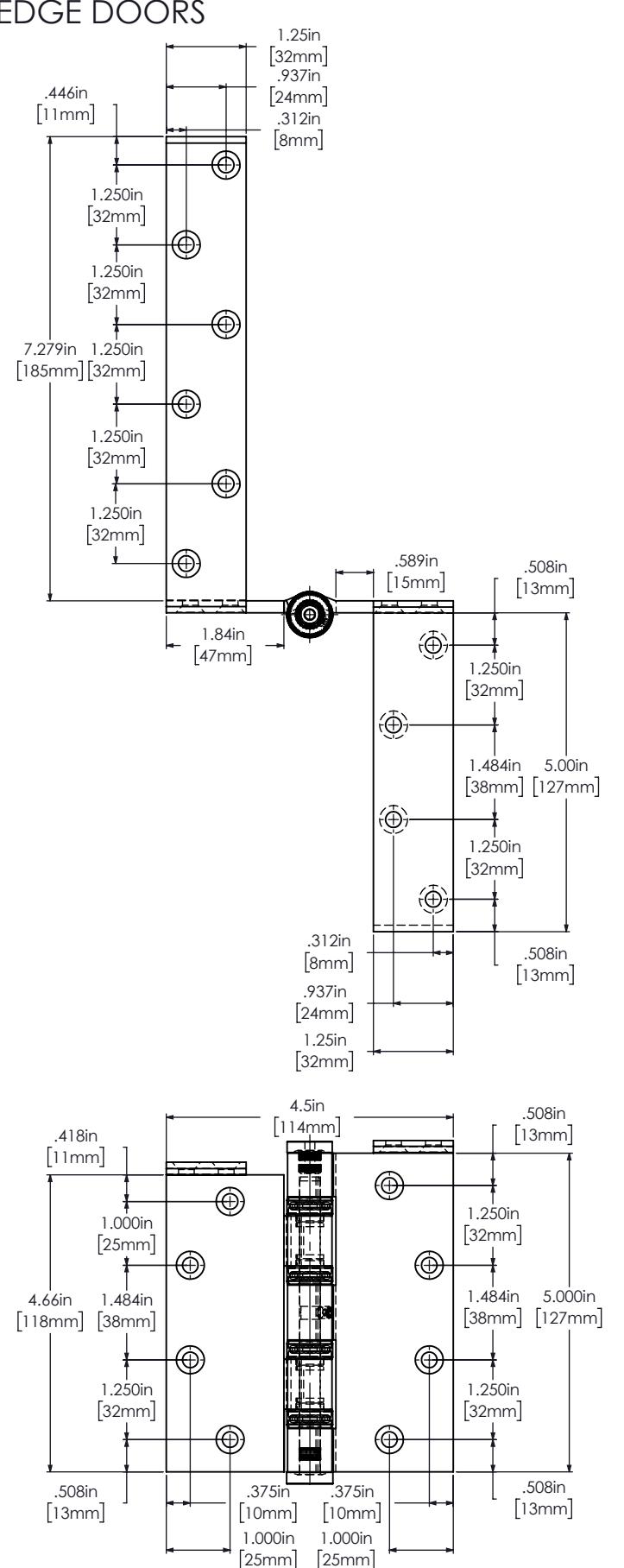

TEMPLATE FULL MORTISE ANCHOR HINGE 5.0X4.5
REV: 05/16/16
FOR SQUARE EDGE DOORS
NOTE: FOR TOP HINGE LOCATION ONLY. INSTALL STANDARD FULL MORTISE 5 X 4.5" HEAVY WEIGHT HINGES AT CENTER AND BOTTOM HINGE LOCATIONS.
NOTE: SEE TEMPLATE T-327 FOR STANDARD ANCHOR HINGE TO BE USED ON SQUARE EDGE DOORS IN CONJUCTION WITH CONCEALED DOOR HOLDERS OR CLOSERS.
| CATALOG NUMBERS | λΛΕΤΔΙ | |
|---|---|---|
|
STEEL
HINGES |
NON-FERROUS
HINGES |
GAUGE |
| BB1162 | BB1192 | .190 |
| AB7506 | AB8506 | .190 |
SCREWS MACHINE - 12-24 X 1/2" FLAT HEAD WOOD - NO. 12 X 1-1/4" FLAT HEAD
RIGHT HAND SHOWN LEFT HAND OPPOSITE
NOT TO SCALE
