Full Mortise Anchor Hinge Beveled Dr Edge – T-329
Open the original PDF document
View PDFREV: 05/16/16
FOR BEVELED EDGE DOOR
NOTE: FOR TOP HINGE LOCATION ONLY. INSTALL STANDARD FULL MORTISE 5 X 4.5" HEAVY WEIGHT HINGES AT CENTER AND BOTTOM HINGE LOCATIONS.
NOTE: THIS ANCHOR HINGE IS USED ON BEVEL EDGE DOORS WHEN EQUIPPED WITH CONCEALED DOOR CLOSERS OR HOLDERS. SEE T-328 FOR A STANDARD ANCHOR HINGE TO BE USED WITH A BEVELED DOOR.
| CATALOG NUMBERS | METAL | |
|---|---|---|
|
STEEL
HINGES |
NON-FERROUS
HINGES |
GAUGE |
| BB1167 | BB1197 | .190 |
| AB7509 | AB8509 | .190 |
SCREWS MACHINE - 12-24 X 1/2" FLAT HEAD WOOD - NO. 12 X 1-1/4" FLAT HEAD

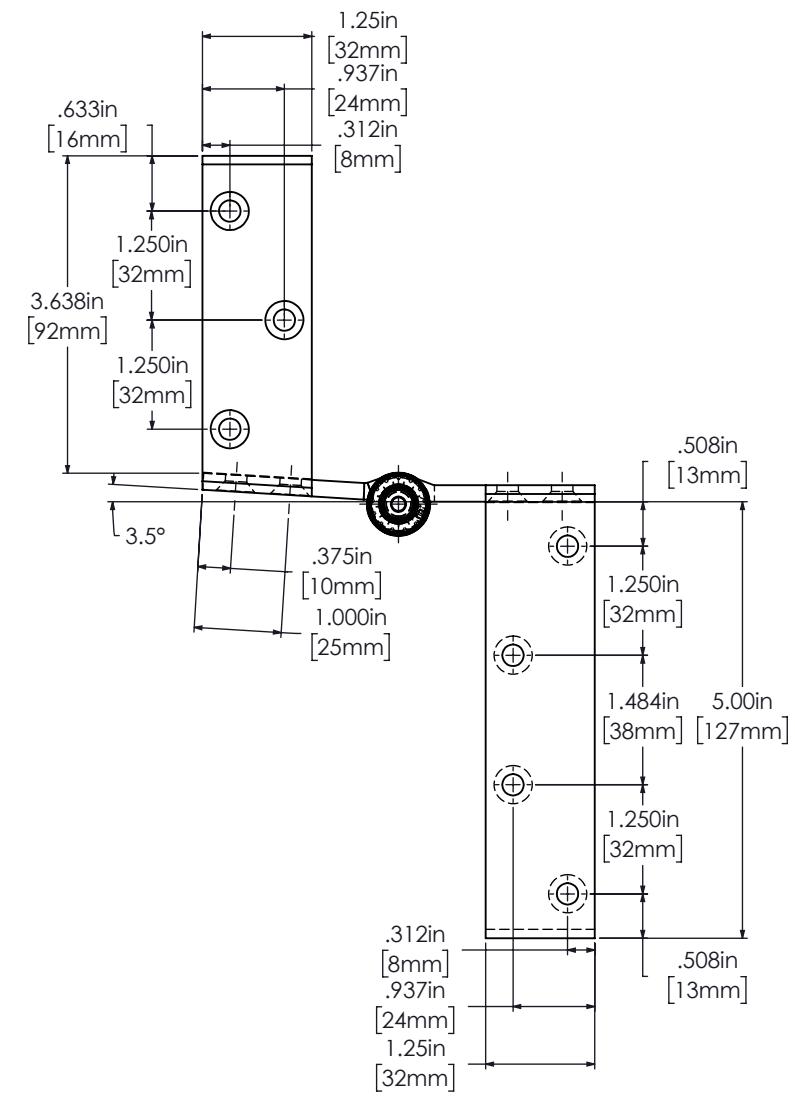

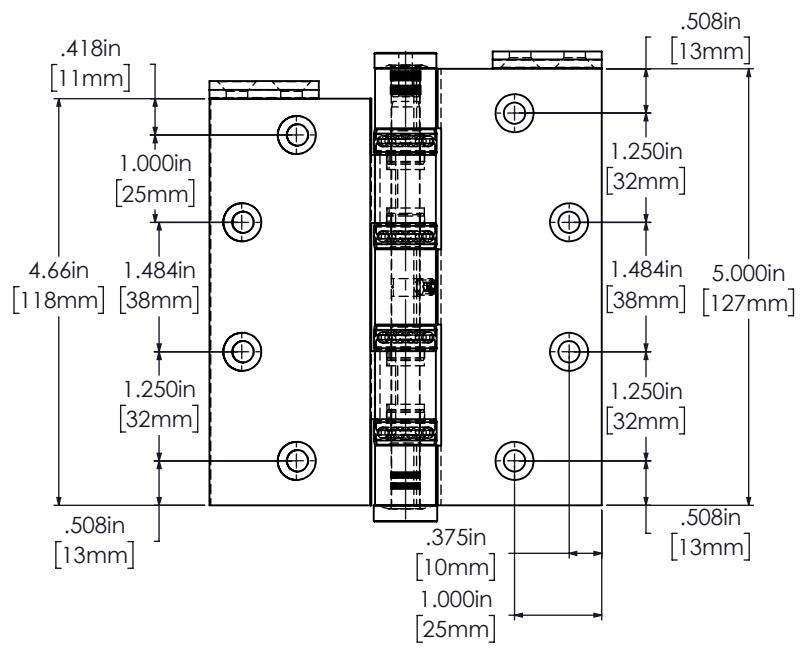

RIGHT HAND SHOWN LEFT HAND OPPOSITE
NOT TO SCALE
