Full Mortise 4.5in Swing Clear Template SQ Edge Dr – T374

Template No. T

374

Rev. 10-17-02

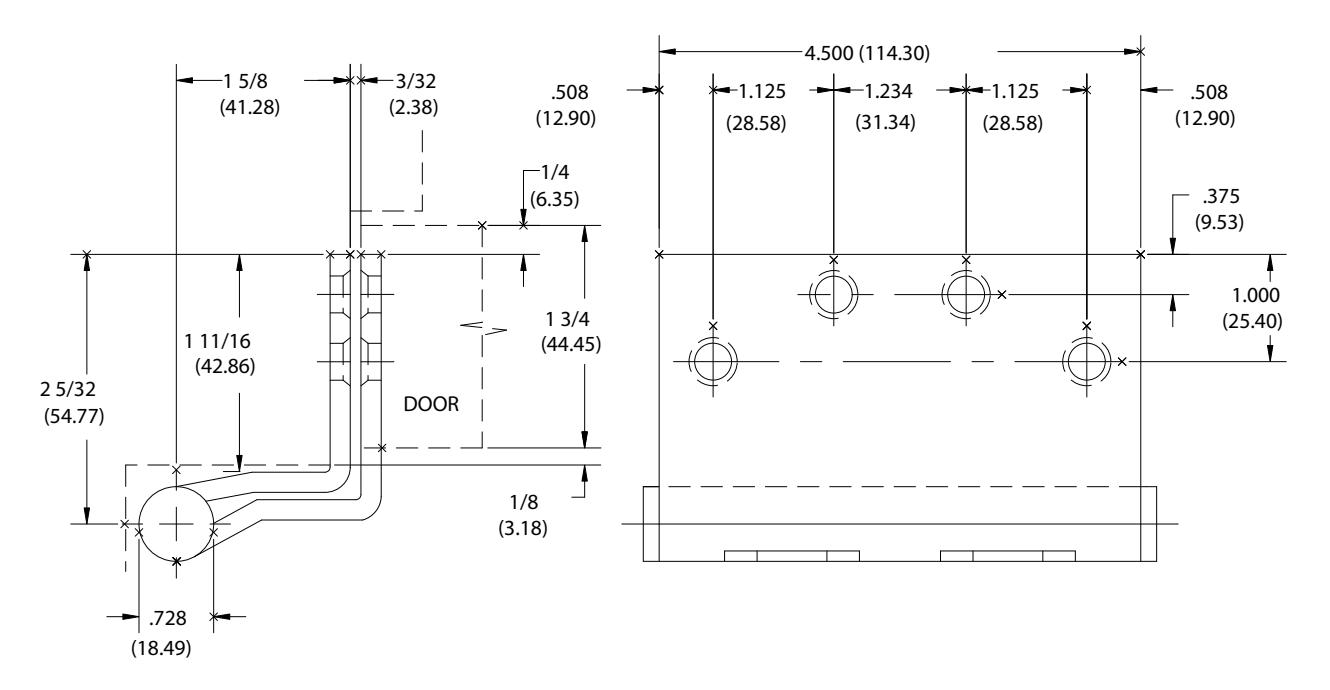

SIZE: 4 1/2 (114.30)

FOR SQUARE EDGE DOORS

-DO NOT SCALE-

CATALOG NUMBER
STEEL HINGES	NON- FERROUS HINGES	METAL GAUGE
BB1262	BB1362	.187 (4.75)
AB7501		.187 (4.75)

ALL NON-BRACKETED DIMENSIONS ARE IN INCHES, ALL BRACKETED DIMENSIONS ARE IN MILLIMETERS.

Wood Screw Size- No. 12 x 1 1/4" F.H. Machine Screw Size- 12-24 x 1/2" F.H.

Designed to swing doors completely clear of the opening when door is opened 95∞. When opened 90∞, door projects 11/64 (4.37) past stop of jamb.

NOTE: This template is used for square edge doors only. See Template No. T376 for beveled edge doors.

door holders to be used in conjunction with this hinge, consult manufacturer of the device for NOTE: This hinge alters the normal pivot point of door. For door closers, friction or overhead application details.

They are designated by "HT" to catalog number. Hospital type template hinges conform to the above screw size and location.

Hager template hinges are made in gauge and with screw holes located to conform to ANSI-A156.7.

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.
