Full Mortise 4.5in Swing Clear Template SQ Edge Dr – T370-Rev02

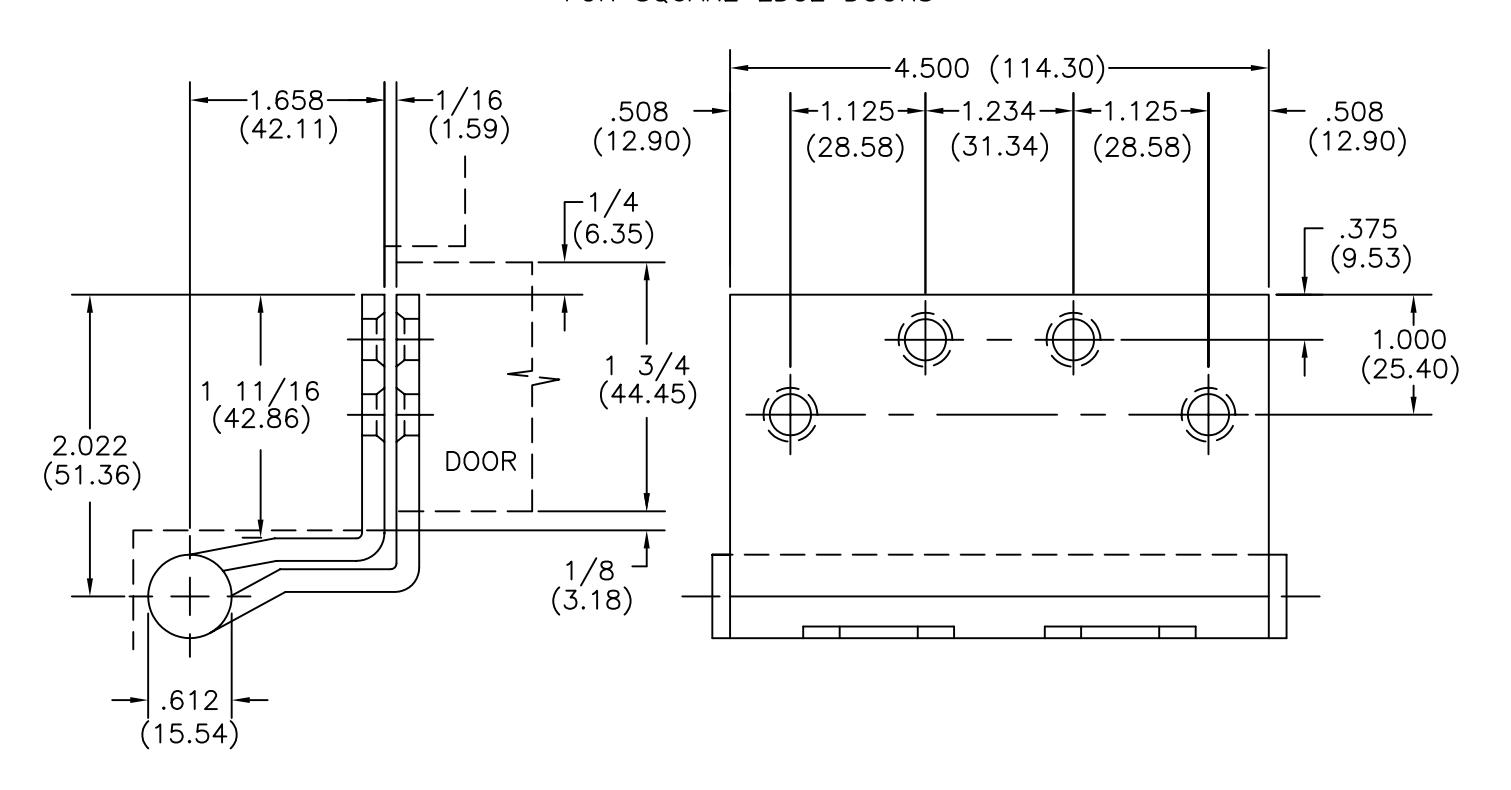

FULL MORTISE SWING CLEAR TEMPLATE HINGES

Template No. T370 | Rev. | BY DATE | 2 | ECO CT04020 | RAM | 5-16-05 |

SIZE: 4 1/2 (114.30) FOR SQUARE EDGE DOORS

-DO NOT SCALE-

CATALOG NUMBER
STEEL HINGES	NON- FERROUS HINGES	METAL GAUGE
BB1260	BB1360	.134 (3.40)
AB7001		.134 (3.40)

ALL NON-BRACKETED DIMENSIONS ARE IN INCHES, ALL BRACKETED DIMENSIONS ARE IN MILLIMETERS.

Machine Screw Size- 12-24 x 1/2" F.H. Wood Screw Size- No. 12 x 1 1/4" F.H.

Designed to swing doors completely clear of the opening when door is opened $95^\{\backslash circ\}$ . When opened $90^\{\backslash circ\}$ , door projects 3/32 (2.38) past stop of jamb.

NOTE: This template is used for square edge doors only. Recommended for doors not to exceed 150 lbs. $(68.04\; \backslash text\{\; kg\})\; \backslash \; 3\text{'}-0"\; \backslash times\; 7\text{'}-0"\; \backslash \; (914.40\; \backslash times\; 2133.60)$ . See Template No. T372 for beveled edge doors.

NOTE: This hinge alters the normal pivot point of door. For door closers, friction or overhead door holders to be used in conjunction with this hinge, consult manufacturer of the device for application details.

Hospital type template hinges conform to the above screw size and location. They are designated by "HT" to catalog number.

Hager template hinges are made in gauge and with screw holes located to conform to ANSI—A156.7.

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.
