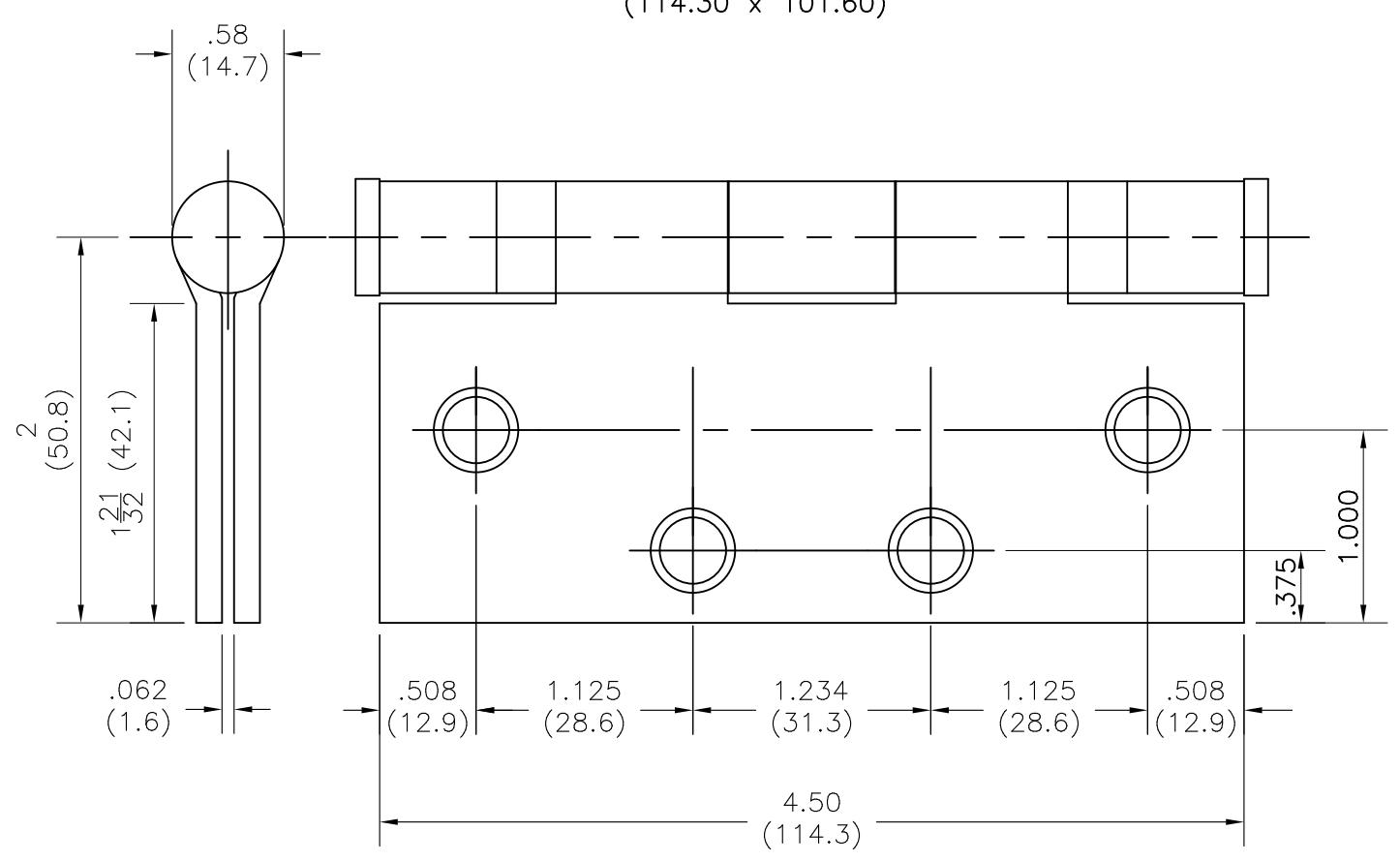

FULL MORTISE TEMPLATE HINGES

SIZE: 4 1/2 x 4 (114.30 x 101.60)

-DO NOT SCALE-

CATALOG NUMBER			DISTANCE FROM EDGE OF LEAF TO SWAGE LINE

STEEL	METAL	KNUCKLE	4 1/2 x 4
HINGES	GAUGE	DIAMETER	(114.3 x 101.6)
ECBB 1100	.134 (3.4)	37/64 (14.7)	1 21/32 (42.1)

ALL NON-BRACKETED DIMENSIONS ARE IN INCHES, ALL BRACKETED DIMENSIONS ARE IN MILLIMETERS.

Machine Screw Size- $12-24 \times 1/2$ " FHM Wood Screw Size- No. $12 \times 1 \cdot 1/4$ " FHT

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE.

DESCRIPTION:

ECCO STANDARD WEIGHT FULL MORTISE TEMPLATE HINGE

NO. REVISION BY DATE 4 UPDATED DWG SLJ 06.02.15

PART NO. T1100C
