SLEEK AND RELIABLE PASSIVE INFRARED TECHNOLOGY

FLY KIT

PIR SENSOR

IDC'S SMALLEST & MOST ACCURATE PIR SENSOR

FEATURES

• Cost effective kits make the Fly an economical sensor perfect for many security applications.
• The microprocessor provides a highly accurate detection zone that is easily field adjustable.
• Passive infrared (PIR) technology provides a reliable signal for request to exit (REX) applications.
• DIP switches and sensing field adjustment mask allow for custom, user-defined settings.
• An Extended Relay Time (ERT) version is available for hold times of 15 or 30 seconds.

Note: Only one (1) Fly sensor included with each kit

Ceiling or Surface Mounting

The Fly is a sensor utilizing passive infrared technology, small enough to fit in the palm of your hand.

The Fly Kit is a package containing the standard Fly sensor, the ceiling mount adapter and the surface mount adapter, all available in either a black or white finish.

APPLICATIONS

• Releasing a maglock or electric strike on manual or automatic doors
• Request to Exit (REX) applications
• Controlling traffic flow

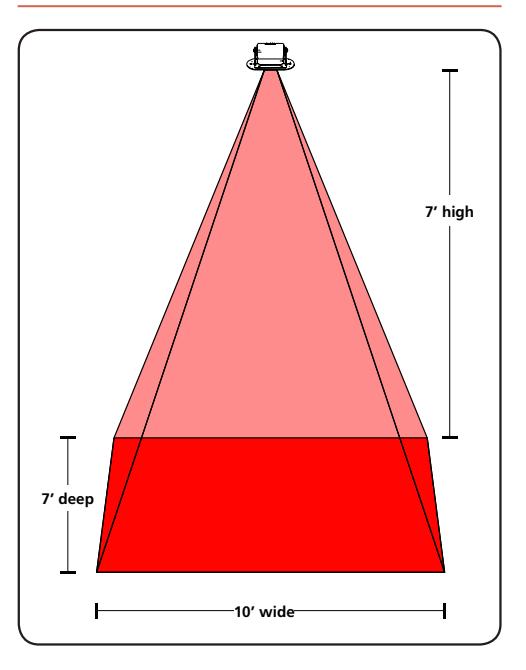

Sensor Pattern

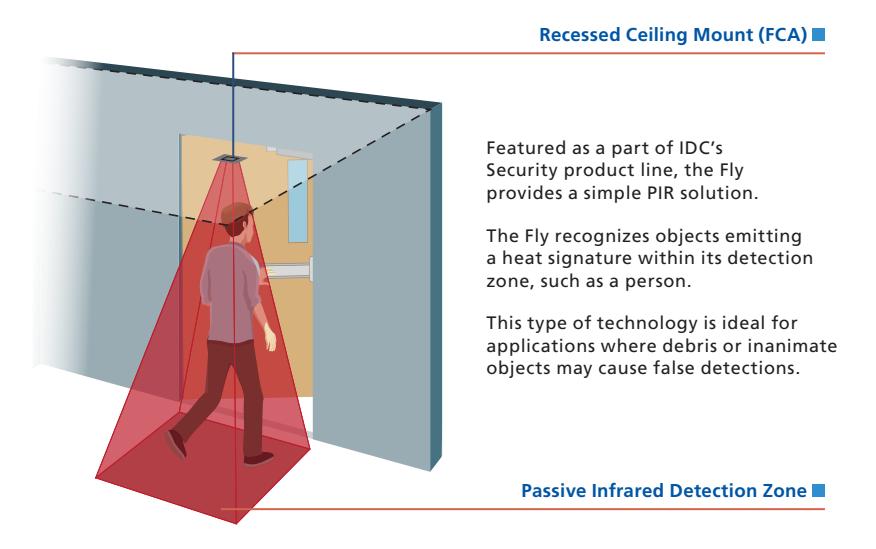

DETECTS PRESENCE AND A CHANGE IN TEMPERATURE

10 FLY KIT BLK COMPONENTS 10 FLY KIT WHT COMPONENTS

FLY / FLY ERT Std. Fly Sensor / Fly ERT Sensor

REQUIRED DETECTION CRITERIA

FSA Fly Surface Adapter

FCA Fly Ceiling Adapter

FLY KIT

FLY / FLY ERT Std. Fly Sensor / Fly ERT Sensor

FSA Fly Surface Adapter

FCA Fly Ceiling Adapter

Included Components

IDC'S SMALLEST & MOST ACCURATE PIR SENSOR

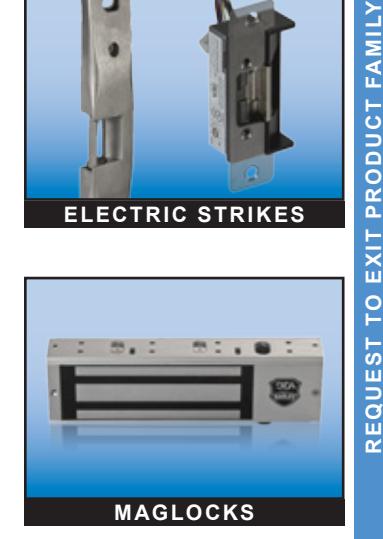

ELECTRIC STRIKES

TECHNICAL SPECIFICATIONS

Technology	Passive Infrared with microprocessor
Mounting Height	Recommended: 6' 6" – 8' 0" Maximum: 10' 0"
Mounting Angles	0º to 180º
Power Supply	12 to 24 VAC; ±10%; (50 / 60 Hz) 12 to 24 VDC; -10% / +30%
Current Consumption	<10 mA (20 mA if the relay output is activated)
Contact Rating	1 A / 75 VDC or 50 VAC (potential free contact NO/NC)
Optical Characteristics	Passive infrared with four elements 15 Fresnel lenses with full independent masking possibilities
Warm-up Time	10 seconds
Response Time	Maximum: 200 microseconds
Relay Hold Time Standard Fly Fly Extended Relay Time	0.5 or 2 seconds 15 or 30 seconds
Operating Temperature	-22ºF to +140ºF (-30ºC to +55ºC)
Immunity	Electrical and radio frequency interference
Cable	9' 0" of 4-conductor cable with 5-pin connector
Weight	1.4 oz (40 g)

Specifications are subject to change without prior notice.
