Floor Mount Door Magnet Mounting Location – I-TA00058-Rev03
Open the original PDF document
View PDF| REV | DRAWING | ECO | CHANGE DESCRIPTION | 3 | 09/29/2021 | OT21001 | Update Instructions | 2 | 03/25/2008 | Update Notes |
1
03/25/2008
Notes:
1. The maximum swing for both doors can be no more than 105°
For Website
2. Extension rods may be used in cases where certain openings need to be obtained

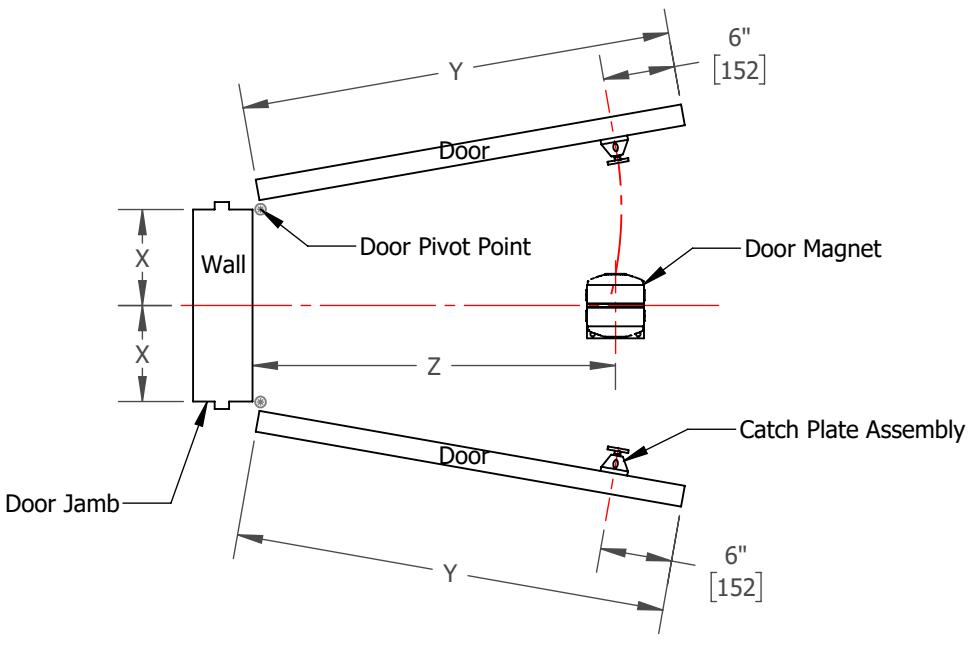

Note: If dimension X or Y is not on the chart, interpolate dimension Z. For example, if X = 5 and Y = 36, Z = 30 9/16 + (30 3/4 - 30 9/16)/2 = 30 21/32"
| DOUBLE DOOR FLOOR MOUNTING - LOCATION Z | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Y = DOOR WIDTH (in) | |||||||||||||||||||||||
| 28 | 30 | 32 | 34 | 36 | 38 | 40 | 42 | 44 | 46 | 48 | |||||||||||||
|
DISTANCE BETWEEN
OORS TO THE DOOR AMB (in) |
2 | 22 | 3/4 | 24 | 3/4 | 26 | 3/4 | 28 | 3/4 | 30 | 3/4 | 32 | 3/4 | 34 | 3/4 | 36 | 3/4 | 38 | 3/4 | 40 | 3/4 | 42 | 3/4 |
| 4 | 22 | 3/4 | 24 | 3/4 | 26 | 3/4 | 28 | 3/4 | 30 | 3/4 | 32 | 3/4 | 34 | 3/4 | 36 | 3/4 | 38 | 3/4 | 40 | 3/4 | 42 | 3/4 | |
| 6 | 22 | 1/2 | 24 | 1/2 | 26 | 9/16 | 28 | 9/16 | 30 | 9/16 | 32 | 9/16 | 34 | 9/16 | 36 | 9/16 | 38 | 5/8 | 40 | 5/8 | 42 | 5/8 | |
| 8 | 22 | 1/8 | 24 | 3/16 | 26 | 3/16 | 28 | 1/4 | 30 | 1/4 | 32 | 5/16 | 34 | 5/16 | 36 | 3/8 | 38 | 3/8 | 40 | 3/8 | 42 | 3/8 | |
| 10 | 21 | 1/2 | 23 | 5/8 | 25 | 11/16 | 27 | 13/16 | 29 | 7/8 | 31 | 7/8 | 33 | 15/16 | 36 | 38 | 1/16 | 40 | 1/16 | 42 | 1/8 | ||
|
S DISTA
DOORS JAMB ( |
12 | 31 3/8 33 7/16 35 1/2 37 9/16 | 39 | 5/8 | 41 | 11/16 | |||||||||||||||||
| 14 | CAUTION: IF DIMENSIONS X AND Y INTERSECT IN THIS BLANK AREA, THE CATCH PLATE ASSEMBLY AND DOOR MAGNET WILL NOT ALIGN WITHOUT USE OF ADDITIONAL EXTENSION RODS | 3/16 | |||||||||||||||||||||
|
CENTER
TWO D |
16 | ||||||||||||||||||||||
| X = CI | 18 | ||||||||||||||||||||||
| ×⊢ | 20 | ||||||||||||||||||||||
| DOUBLE DOOR FLOOR MOUNTING - LOCATION Z | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Y = DOOR WIDTH (mm) | ||||||||||||||
| 711.2 | 762.0 | 812.8 | 863.6 | 914.4 | 965.2 | 1016.0 | 1066.8 | 1117.6 | 1168.4 | 1219.2 | ||||
| Z & | 50.8 | 577.9 | 628.7 | 679.5 | 730.3 | 781.1 | 831.9 | 882.7 | 933.5 | 984.3 | 1035.1 | 1085.9 | ||
|
R DISTANCE BETWEEN
DOORS TO THE DOOR JAMB (mm) |
101.6 | 577.9 | 628.7 | 679.5 | 730.3 | 781.1 | 831.9 | 882.7 | 933.5 | 984.3 | 1035.1 | 1085.9 | ||
| 152.4 | 571.5 | 622.3 | 674.7 | 725.5 | 776.3 | 827.1 | 877.9 | 928.7 | 981.1 | 1031.9 | 1082.7 | |||
| 203.2 | 562.0 | 614.4 | 665.2 | 717.6 | 768.4 | 820.7 | 871.5 | 923.9 | 974.7 | 1025.5 | 1076.3 | |||
| 254.0 | 546.1 | 600.1 | 652.5 | 706.4 | 758.8 | 809.6 | 862.0 | 914.4 | 966.8 | 1017.6 | 1070.0 | |||
| 304.8 | 796.9 849.3 901.7 954.1 | 1058.9 | ||||||||||||
| 355.6 | 993.8 | 1046.2 | ||||||||||||
|
ENTER
TWO D |
406.4 | CAUTION: IF DIMENSIONS X AND Y INTERSECT IN THIS BLANK AREA, | ||||||||||||
|
X = CI
THE |
457.2 | THE CATCH PLATE ASSEMBLY AND DOOR MAGNET WILL NOT ALIGN WITHOUT USE OF ADDITIONAL EXTENSION RODS | ||||||||||||
| ×⊢ | 508.0 | WITHOUT USE OF ADDITIONAL EXTENSION RODS | ||||||||||||
DRAWN BY 9/29/2021 PROPRIETARY & CONFIDENTIAL HAGER RESERVES THE RIGHT TO 380 380H MAKE DESIGN CHANGES WITHOUT THE INFORMATION CONTAINED IN DF 9/29/2021 NG. APPR NOTICE. CALL HAGER ENGINEERING ALL DIMENSIONS REFERENCE UNLESS TOLERANCE SPECIFIED. ART DESCRIPTION: THIS DRAWING IS THE SOLE AT 1-800-325-9995 FOR THE LATEST THIRD ANGLE PROJECTION PROPERTY OF HAGER COMPANIES. Floor Mount (Double Door): Door Magnet REVISION DATE OF TEMPLATE. ANY REPRODUCTION IN PART OR Mounting Location MATERIAL: AS A WHOLE WITHOUT THE WRITTEN UNITS: INCH = AUTHORITY [ ] = MILLIMETER REFERENCE REVISION PERMISSION OF HAGER I-TA00058 FINISH: 03 COMPANIES IS PROHIBITED. SCALE: 1:16 DO NOT SCALE WEIGHT: SHEET SIZE: A SHEET 1 OF 2
