FLEX IR MICROCELL BEAM • DAMAGE PREVENTION FLEXABLE • UV-RESISTANT

• Flexible mounting bracket prevents the Microcell beam system from damage when installed in industrial applications.
• Flexible, UV-resistant material prevents damage to the beam heads, optimizing safety and reliability.

• Kits are also available which include the Flex IR, Microcell beam sets and sealed mounting boxes (suitable for exposure to wet and harsh conditions).

ADAPTABLE

• The bracket can be installed in a parallel or perpendicular position to the mounting surface, allowing optimal flexibility for different applications.

SERVICE FRIENDLY

• The Flex IR is built to withstand various conditions should accidents occur. If struck, the Flex IR will bend and flex back into position reducing service calls.

RELATED PRODUCTS

WATERPROOF ACCESSORY AVAILABLE

Br3 Falcon IS40

IXIO-DT1 Eagle HM SuperScan

Industrial

Microcell Beam Damage Prevention

West: 800-544-4422 • East: 800-225-6737

SPECIFICATIONS

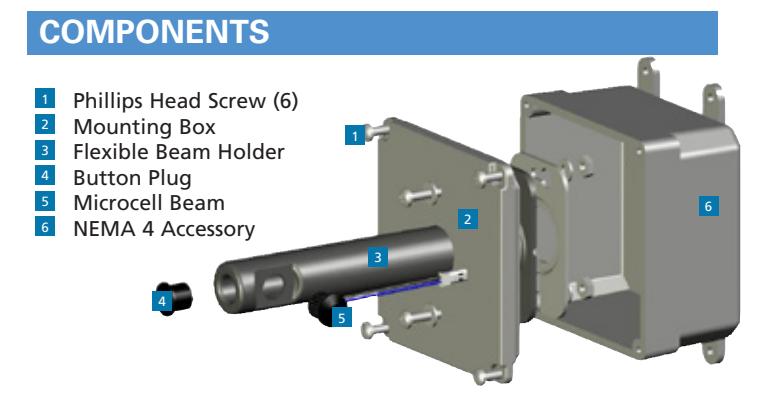

Materials:

Flexible Beam Holder

Silicone

Mounting Brack

Galvanized Steel

Button Plug

ABS and Lexan

Screws

18/8 Stainless Steel

Installation Height

See Mechanical Installation Instructions in User's Guide

Operating Temperature

-30° to + 131° F

Minimum Distance

between pairs of beams

12" (304.8mm)

(beams must not be crossed)

Range of Detection:

Minimum

3' (1 m)

Maximum

16.5' (5m) if mounted 8" (0.2m) above ground

33' (10m) if mounted 16" (0.4m) above ground

Minimum Distance

from Plane of Door 1" (25.4mm)

Alignment Tolerance

8° Housing color

Black

Dimensions

6" x 1¾" x 2¾" (150mm x 45mm x 70mm)

Degree of protection:

With Mounting Box

NEMA 4

PRODUCT FAMILY

10FLEXIR

Flexible mounting brackets for BEA Microcell safety beam system — (2) Flex IR brackets are included per set

10FLEXIRN4

(1) 10FLEXIR bracket set, (1) 10MICROCELL1S single beam set, and (2) NEMA 4 boxes

10FLEXIRN4DL

(2) 10FLEXIR bracket sets, (2) 10MICROCELL1D double beam sets, and (4) NEMA 4 boxes

10FLEXIRKIT

Includes (1) 10FLEXIR bracket set and (1) 10MICROCELL1S single beam set

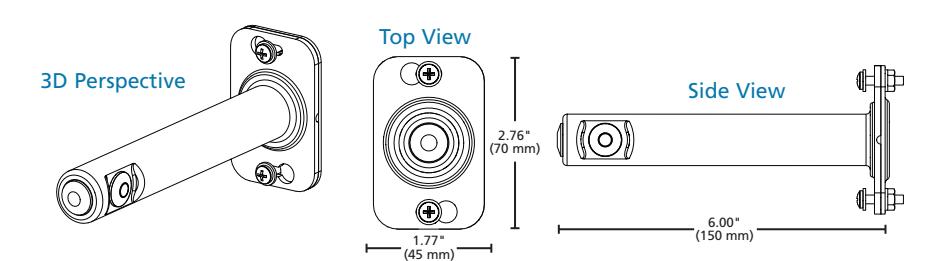

DIMENSIONAL DRAWINGS

APPLICATIONS

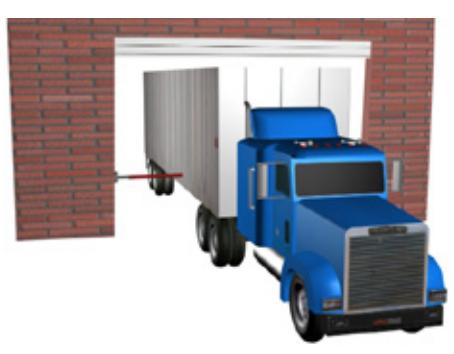

▪ Flex IR protects the Microcell against blunt hits from tractor trailers, forklifts, or heavy objects in the industrial setting.

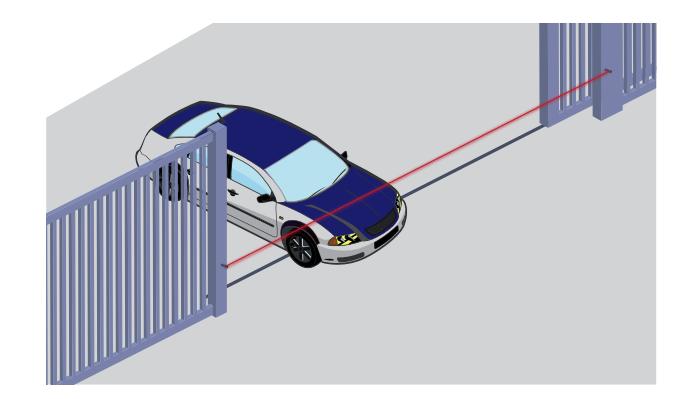

▪ The flexible housing protects the Microcell from damage in the event that it is struck by a vehicle.
