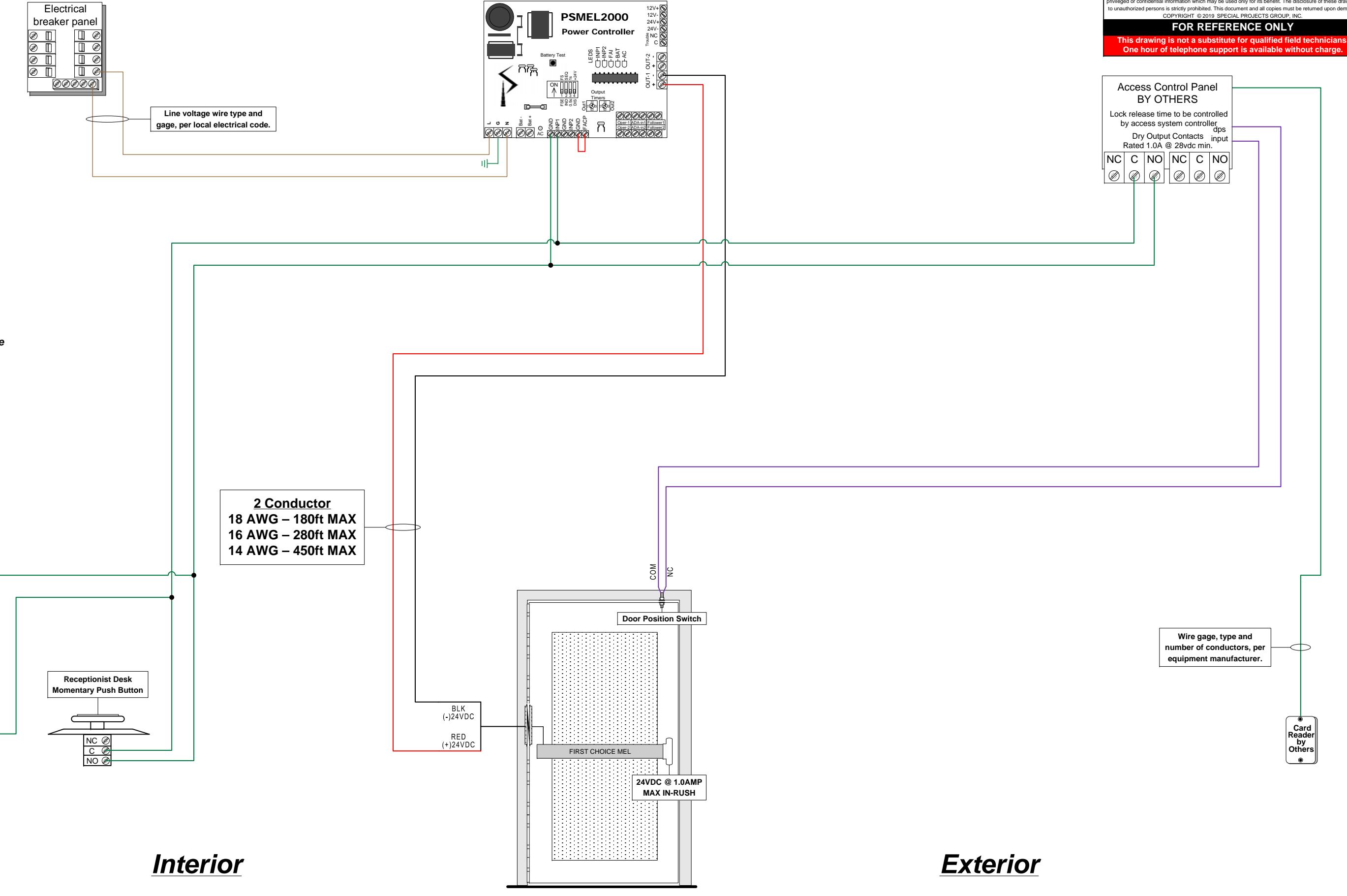

First Choice Building Products Single MEL Exit Device-1 Single Door Front Desk Switch Key Override PSMEL2000 Wiring Diagram

(800) 793-4544

NOTES:

• 1) Verify that each component requiring or supplying power has been configured for proper system voltage before applying power.
• 2) All wires to be 18 awg 100' max unless otherwise noted on drawing. Refer to manufacturers instructions for proper wire gauge on any power supply, electric device or electrified lock hardware. Manufacturers requirements take precedence.
• 3) All line voltage power to be I/A/W local electrical code.
• 4) All low voltage wires to be stranded copper unless superseded by local electrical code or electric device manufacturer.
• 5) It is considered good electrical practice to run spare wires at any location that may be difficult to access after construction.

Function Statement:

Maintained

Nortise Keyswitch

Electrical Circuit Legend Red = (+)VDC Power Black = (-) VDC Power Green = Signaling Blue = Activation Violet = Monitoring/Supervisory Brown = AC High Voltage

L NC -

<u>From exterior - locked condition:</u> Access by presenting valid credential at reader interface to retract electric exit device latchbolts. Receptionist push button to unlock door for visitor entry. <u>From exterior - unlocked condition:</u> Door to remain locked unless electric exit device held retracted by access control system, receptionist desk push button control or maintained key-switch control. <u>From interior - locked condition:</u> Free egress at all times by means of exit device.

From interior - unlocked condition: Free egress at all times by means of exit device.

General: Fail-secure electric latch retraction exit device to remain locked during utility power-loss event.

Title: SGL MEL-PS-MEL-2000-PB-KSWCH.vsd					Project: Example
HWSET: Example				Door: EXT-1
Date:	5/17/2019	Date Printed:		5/17/2019	Last Revised: 5/17/2019		11:34:49 AM
Drawn By: Eric Norton Fo		For:	Special Pro	ects Group	SO: n/a	Pg: 1 OF 1
