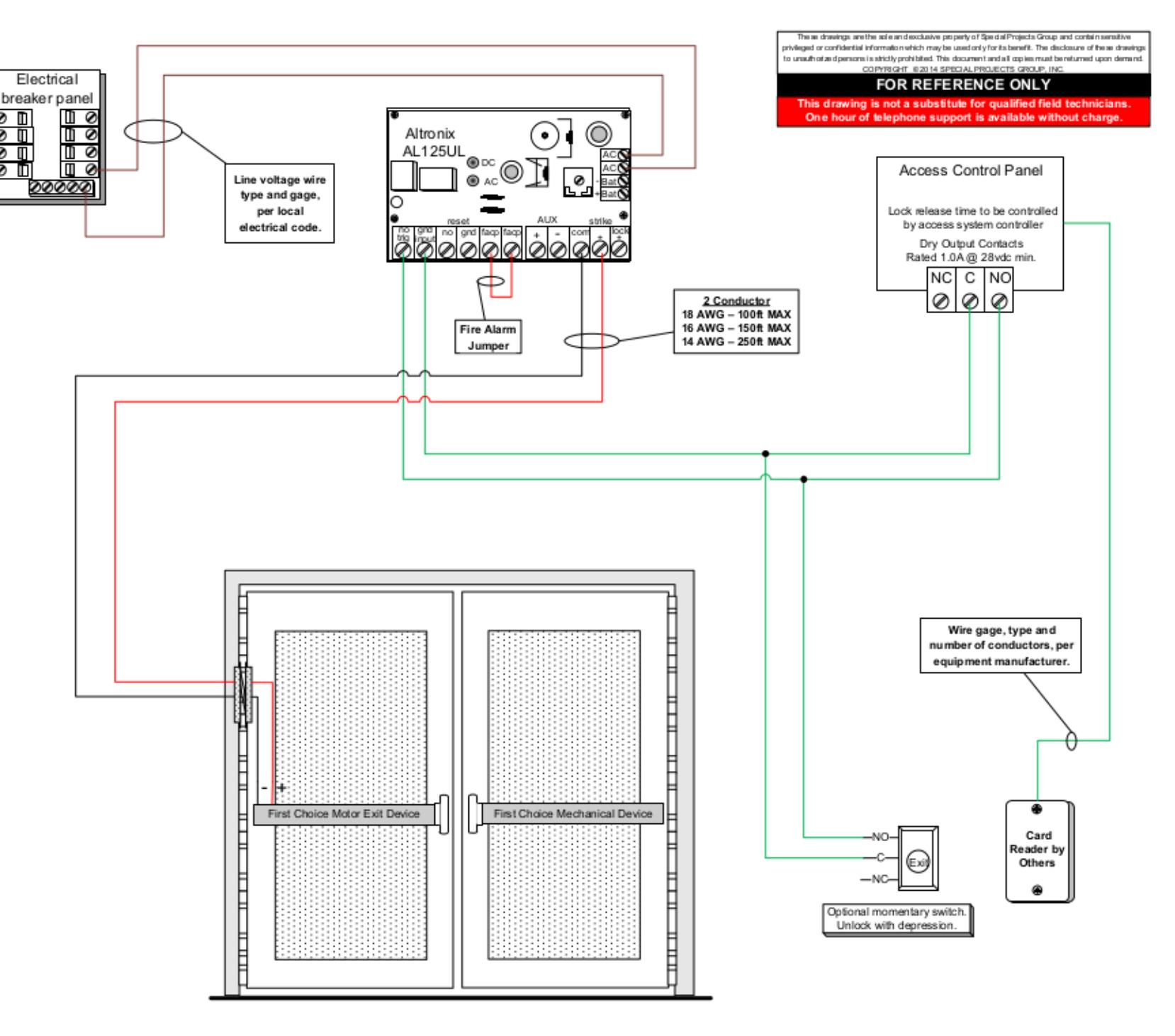

First Choice Building Products MEL Exit Device-1 Pair-1 Active PSMEL1500 1 Wiring Diagram

Phone: 800-793-4544

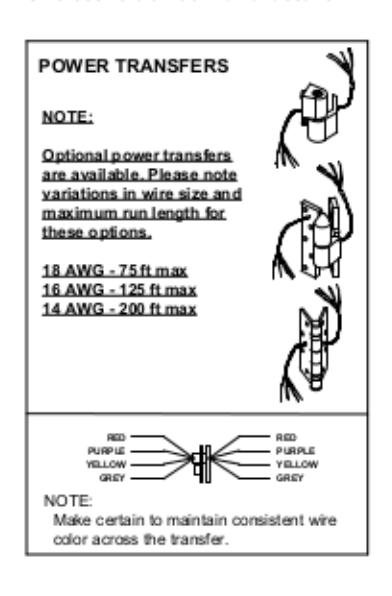

NOTES:

• Verify that each component requiring or supplying power has been configured for proper system voltage before applying power.
• 2) All wires to be 18 awg 100' max unless otherwise noted on drawing. Refer to manufacturers instructions for proper wire gauge on any power supply, electric device or electrified lock hardware. Manufacturers requirements take precedence.
• 3) All line voltage power to be I/A/W local electrical code.
• 4) All low voltage wires to be stranded copper unless superseded by local electrical code or electric device manufacturer.

Function Statement:

From exterior- locked condition: Access by presenting valid card to unlock active leaf.

From exterior - unlocked condition: Doors to remain locked unless active leaf held unlocked by access control system.

From interior - locked condition: Free egress at all times by means of exit device.

<u>From interior - unlocked condition:</u> Free egress at all times by means of exit device. <u>General:</u>

10e: Motor Exit Device 1 Pair 1 Active-AL-126-UL vsd				Project: First Choice 1 Pair with 1 Active
Heading: Various			Door: Various
Date:	10/16/2014	Date Prin	nted: 10/16/2	014 Last Revise	d 10/16/2014	5:50:12 P M
Drawn By:	Cody Richardson	For: First Choice Building Products				Pg 1 OF 1
