LEVER INSTALLATION TEMPLATE

for First Choice for RIM Latch 3790 Exit Device Model L3720-E1 Lever Trim Right Hand Reverse Bevel With electric control

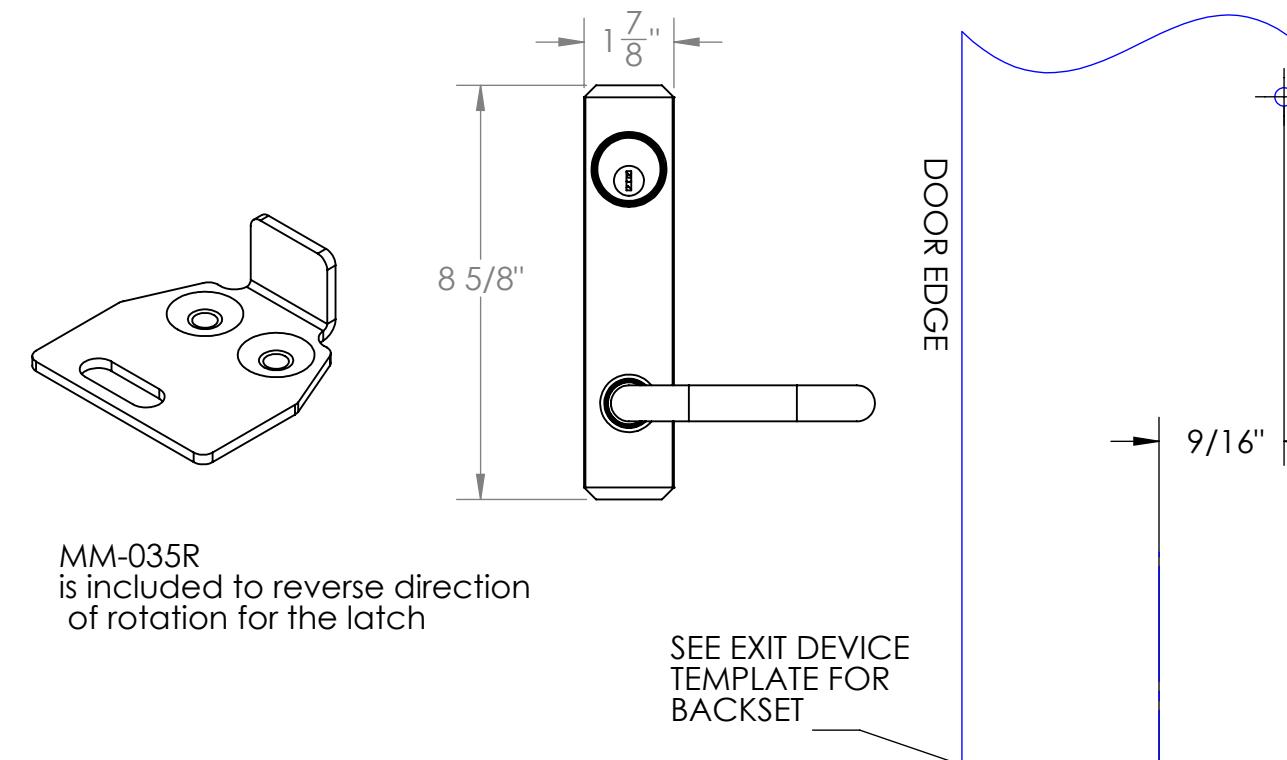

FOR CENTERLINE REFERENCE USE THE EXIT DEVICE TEMPLATE TO LOCATE PINION GEAR HOLE, ALSO KNOWN AS THE OPERATOR HOLE.

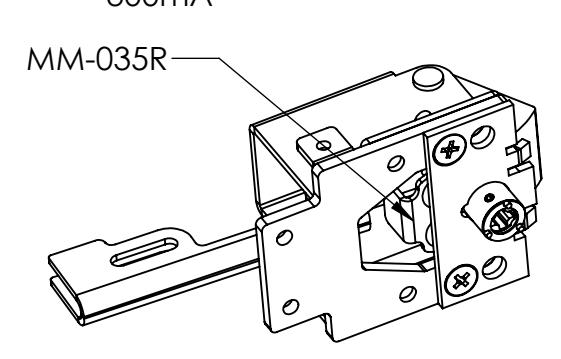

ELECTRICAL CONNECTION Wiring is to be brought from the frame to the lock area of the door. 24VDC 300mA

FIRST CHOICE BUILDING PRODUCTS

REVISED: 09.17.2018

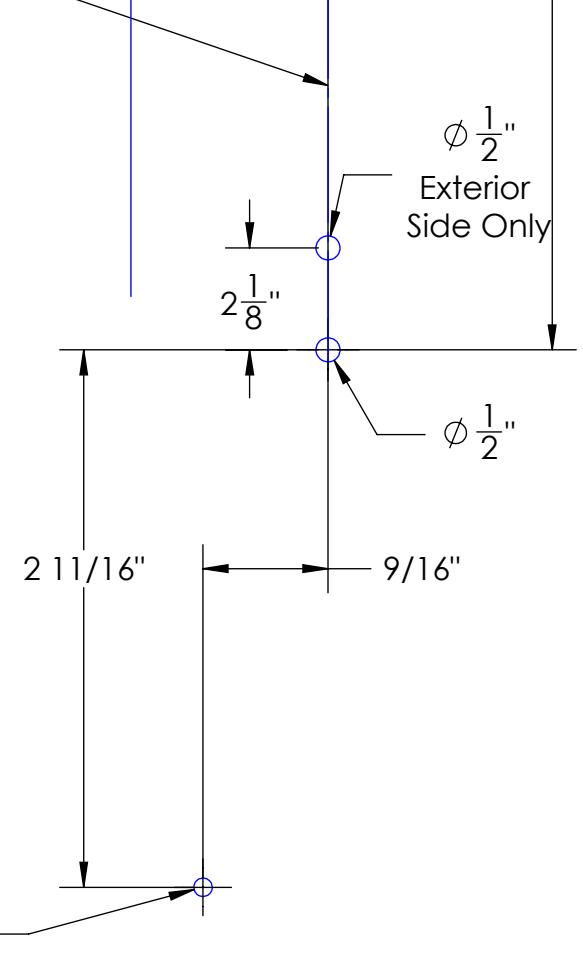

3/8" drill on exterior side and countersink for #10-32 on interior side of door 2 places

Template shows exterior of door
