FIRST CHOICE BUILDING PRODUCTS

LEVER TRIM CYLINDER REQUIREMENTS, PREPARATION & INSTALLATION

CYLINDER & CAM REQUIREMENTS

Mortise Cylinder: 1-1/8" to 1-1/4" in depth

Classroom function (M3) Adams-Rite- type short straight cam

Storeroom Function (M1) use either Yale-type straight cam or Russwin-type cloverleaf cam

* allows one-hand operation of lever for single opening

Access hole for Cylinder Locking Screw

CYLINDER PREPARATION

Cylinder Collar

Spring

Mortise Cylinde

Insert mortise cylinder into spring and then cylinder collar. Screw the mortise cylinder into the lever.

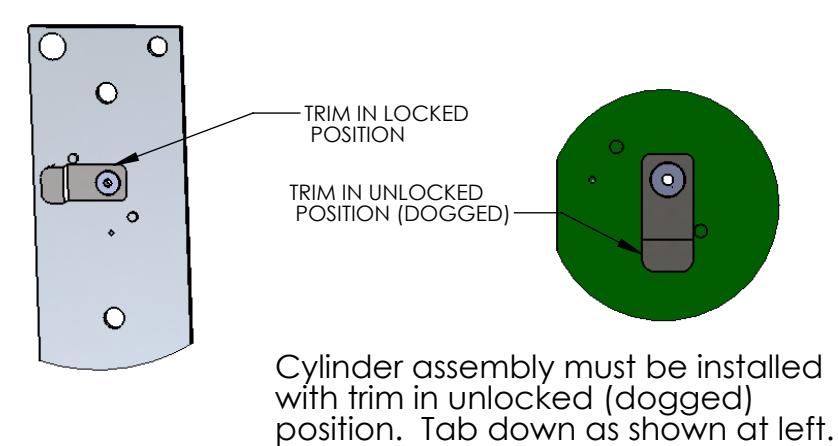

TRIM PREPARATION for CLASSROOM FUNCTION (M3) ONLY

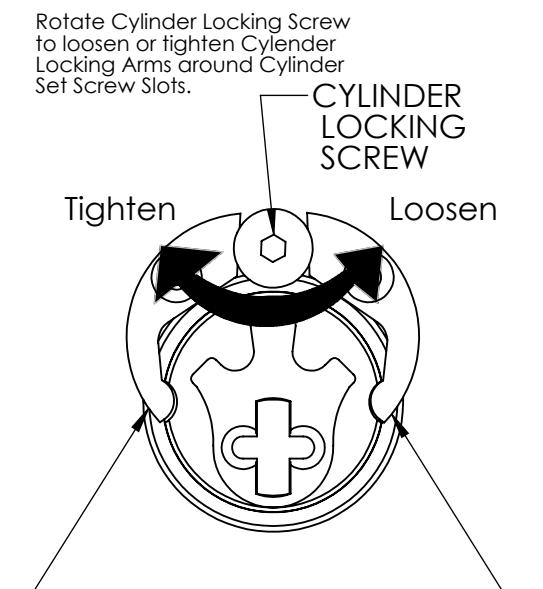

INTERNAL VIEW OF QUICKSWITCH ASSEMBLY

CYLINDER LOCKING ARMS

NOTE:

Cylinder is held in place by cylinder locking arms seated in cylinder slots

CYLINDER INSTALLATION

Install cylinder assembly into exterior trim by partially inserting the key 1/2 way into cylinder and rotating cylinder clockwise to screw in.

REVISED: 08.04.2011

-1/8" ALLEN KEY

Insert key into locking screw and rotate clockwise to lock cylinder in place. Jiggle cylinder clockwise/ counterclockwise to be certain that cylinder locking arms are fully seated into cylinder slots.
