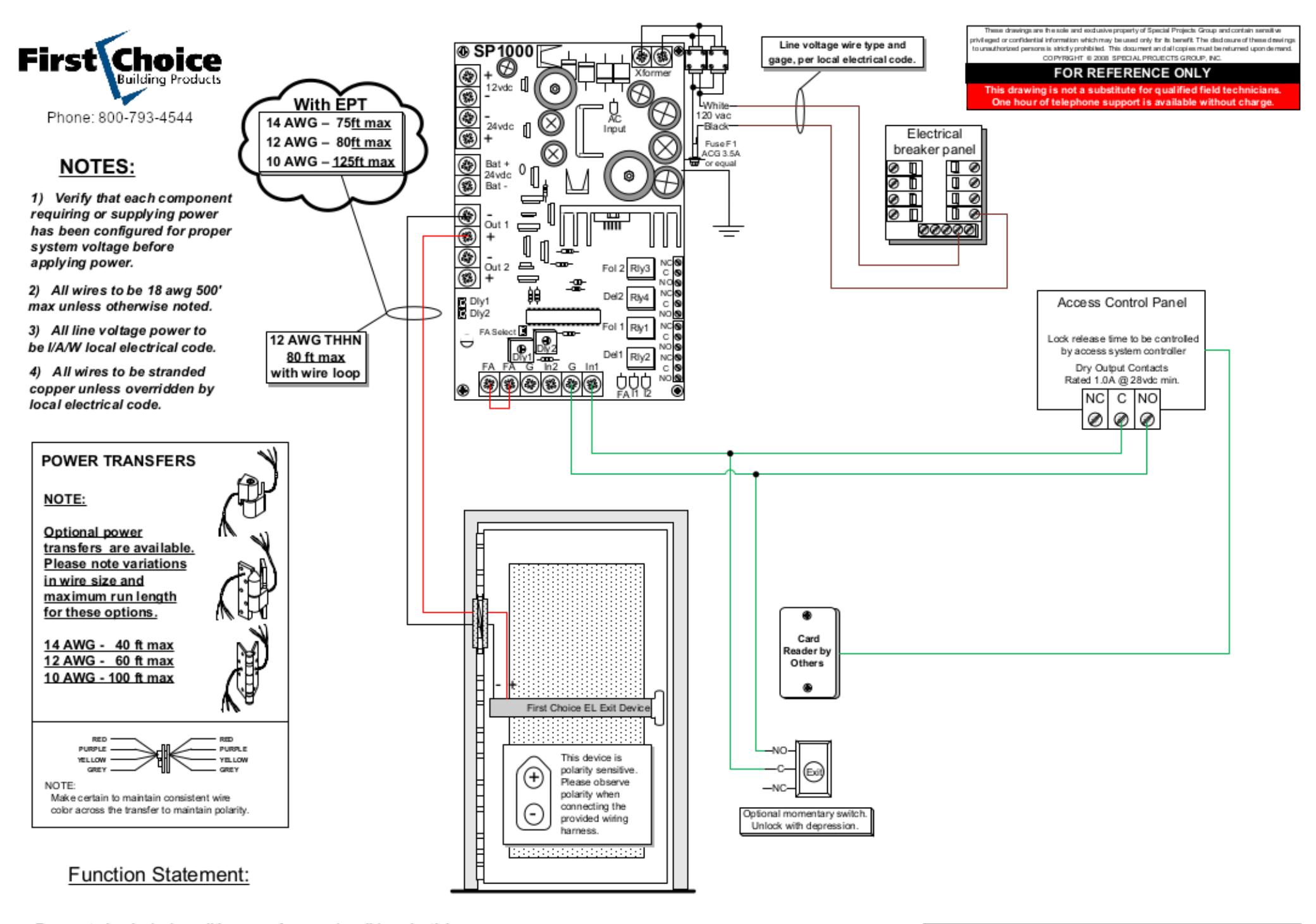

First Choice Building Products EL Exit Device-1 Single Door PSEL3000-2 Wiring Diagram
Open the original PDF document
View PDF
From exterior- locked condition: From exterior - unlocked condition: From interior - locked condition: From interior - unlocked condition: General:
Access via valid credential. Doors to remain locked unless held unlocked via access control. Free egress via exit device.
| Free egre | ess via | exit | device |
|---|
| Title: | Title: EL Exit Device 1 Single.vsd | Project: First Choice 1 single door | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Heading: \ | /arious | Door: Vario | us | ||||||
| Date: | Last Revised: | 10/23/200 | 8 1 | 1:04:44 P | М | ||||
| Drawn By: | Patrick Treleven | For: Fi | rst Chaice Bu | ildin | g Products | Pg | 1 OF | 1 | |
