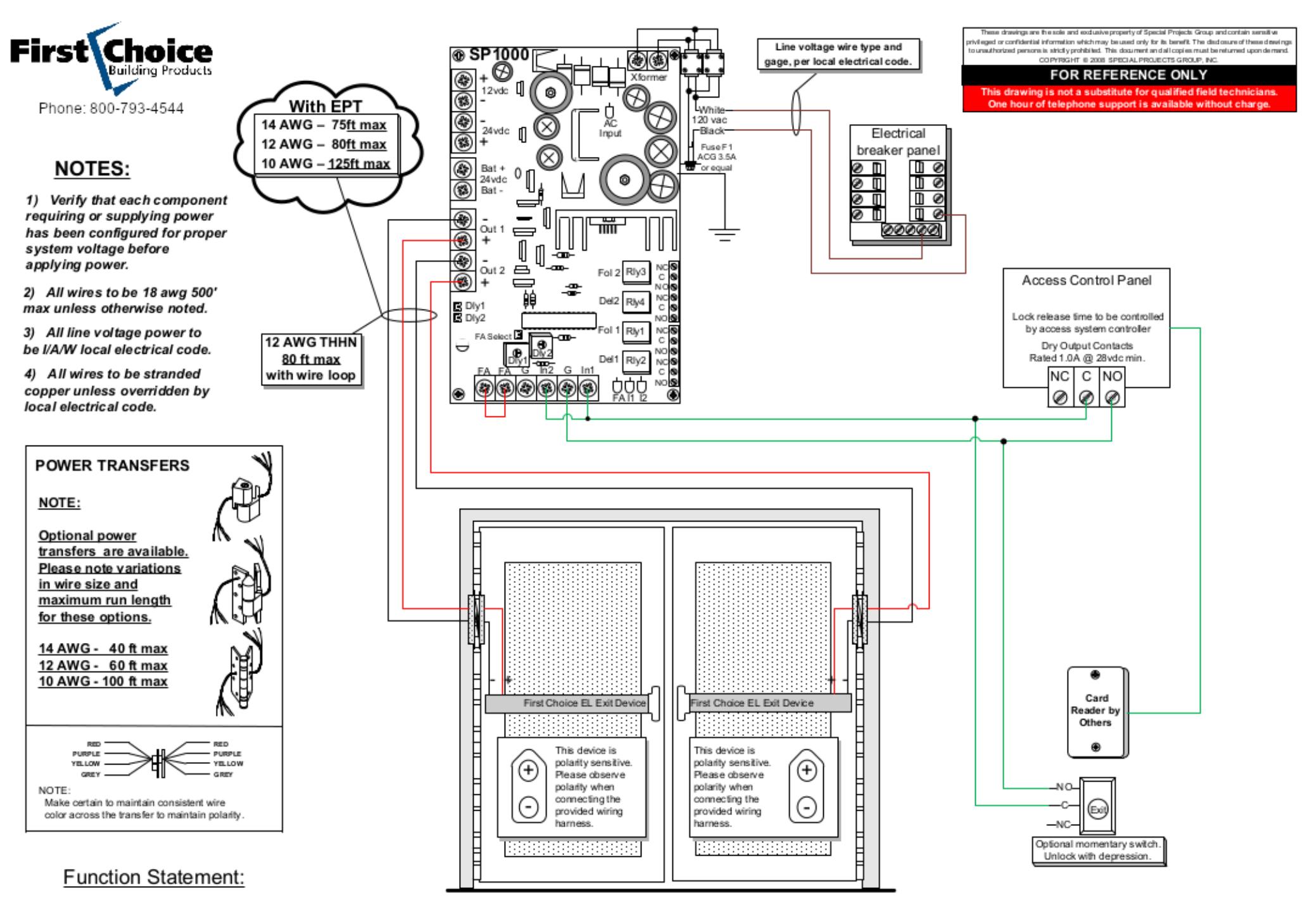

First Choice Building Products EL Exit Device-1 Pair-2 Active PSEL3000-2 Wiring Diagram
Open the original PDF document
View PDF
From exterior- locked condition: From exterior - unlocked condition: From interior - locked condition: From interior - unlocked condition: From interior - unlocked condition: Free egress via exit device. Free egress via exit device.
Access via valid credential. Doors to remain locked unless held unlocked via access control. Free egress via exit device.
| Title: EL Exit Device 1 Pair 2 Active yed | Project: First Choice 1 Pair with 2 Active | |||||
|---|---|---|---|---|---|---|
| Heading: Various | Door: Various | |||||
| Date: 10/24/200 | Bate Prir | 10/24/2008 | Last Revised: | 10/23/2008 | 1:03:5 | 3 PM |
| Drawn By: Patrick Treleven | For: | For: First Choice Building Products | g 10 | DF 1 | ||
