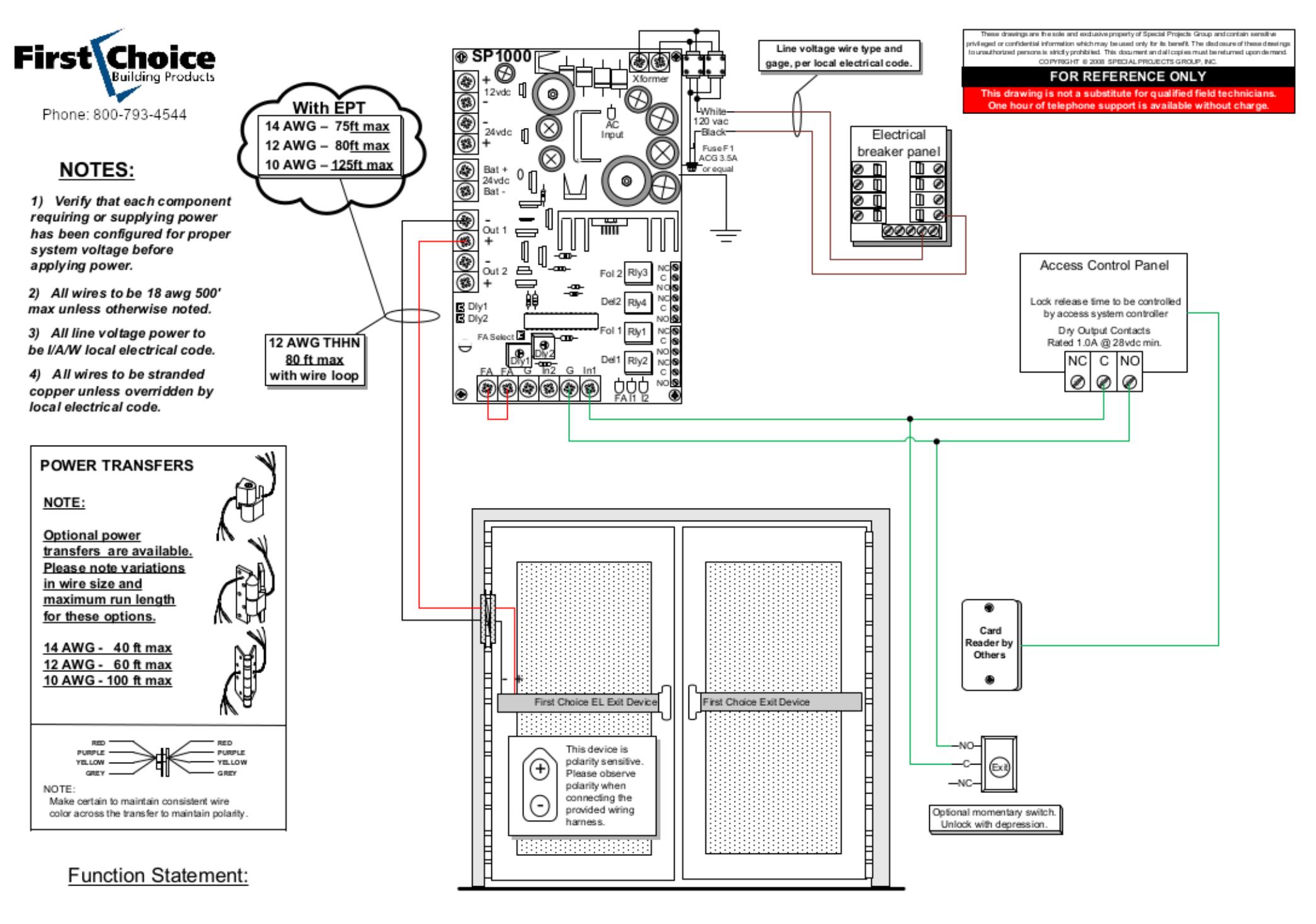

First Choice Building Products EL Exit Device-1 Pair-1 Active PSEL3000-2 Wiring Diagram

From exterior- locked condition: From exterior - unlocked condition: From interior - locked condition: From interior - unlocked condition: From interior - unlocked condition: Free egress via exit device. Free egress via exit device.

Access via valid credential. Doors to remain locked unless held unlocked via access control. Free egress via exit device.

Inte: EL Exit Device 1 Pair 1 Active yed			ed	Project: First Choice 1 Pair with 1 Active
Heading: Various			Door: Various					$\backslash neg$
Date:	10/24/2008	Date Print	ed: 10/24/2008	Last Revised:	10/23/2000	3 1:03	:05 PN	И
Drawn By	Patrick Treleven	For: First Choice Building Products				Pg 1	OF	1
