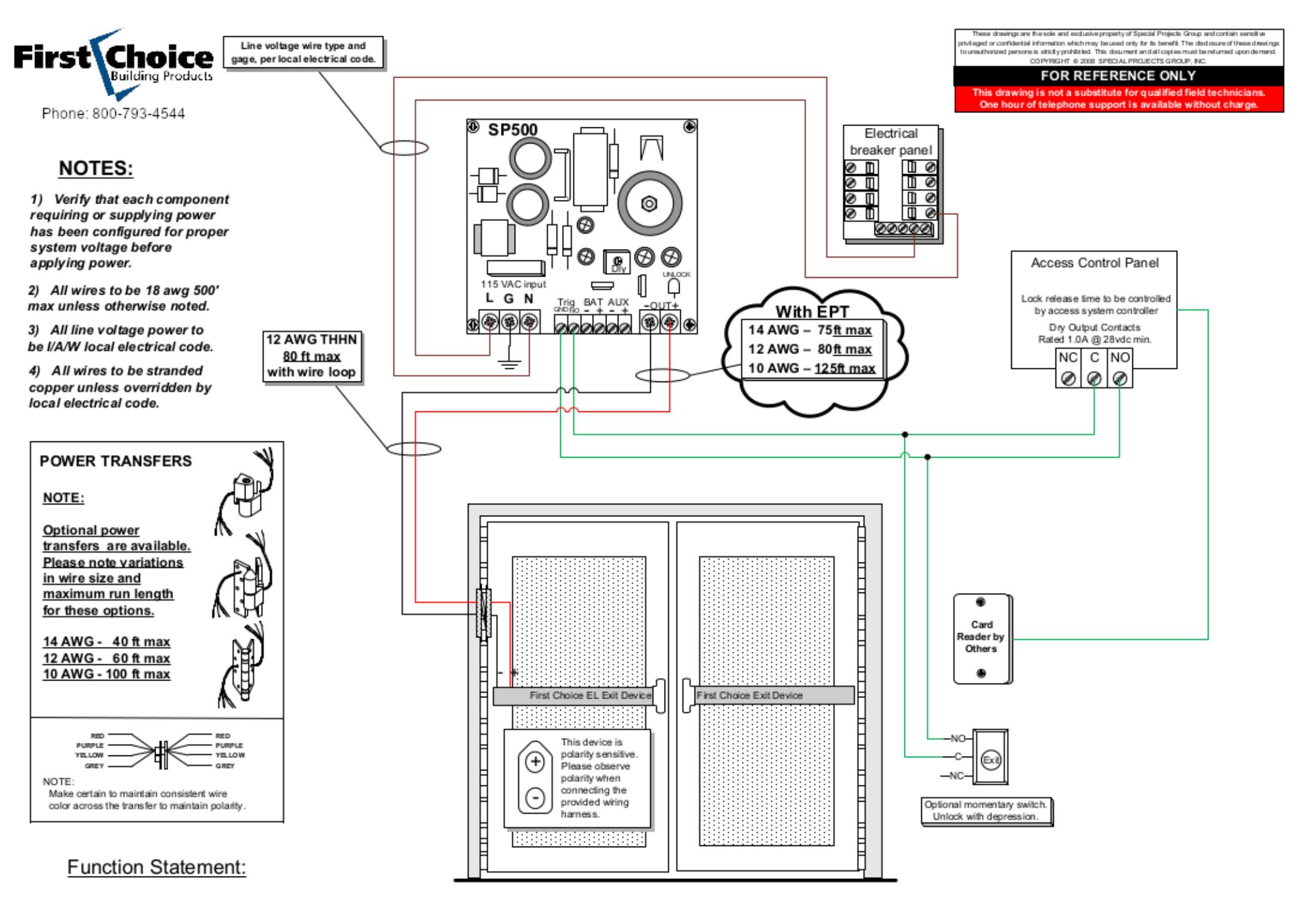

First Choice Building Products EL Exit Device-1 Pair-1 Active PSEL1500 Wiring Diagram
Open the original PDF document
View PDF
From exterior- locked condition: From exterior - unlocked condition: From interior - locked condition: From interior - unlocked condition: Free egress via exit device. General:
Access via valid credential.
Doors to remain locked unless held unlocked via access control. Free egress via exit device.
| Title: EL Exit Device 1 Pair 1 Active - SP500.vsd | Project: First Choice 1 Pair with 1 Active | |||||
|---|---|---|---|---|---|---|
| Heading: Various | Door: Various | |||||
| Date: | 10/24/2008 | Date Prir | ited: 10/24/20 | 08 Last Revised | 10/23/2000 | 3 12:22:04 PM |
| Drawn By: | Patrick Treleven | For: | FirstCho | ice Building Prod | lucts | Pg 1 OF 1 |
