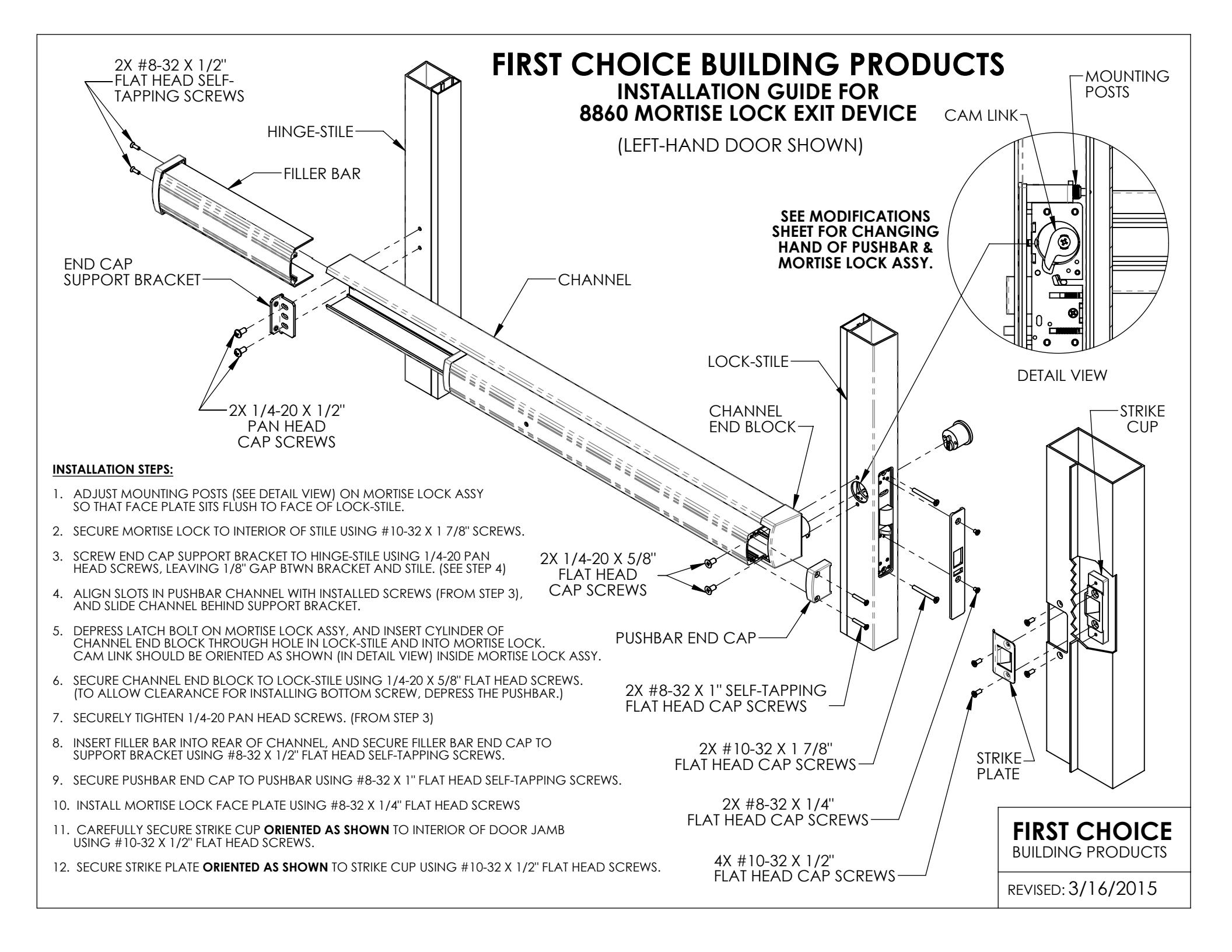

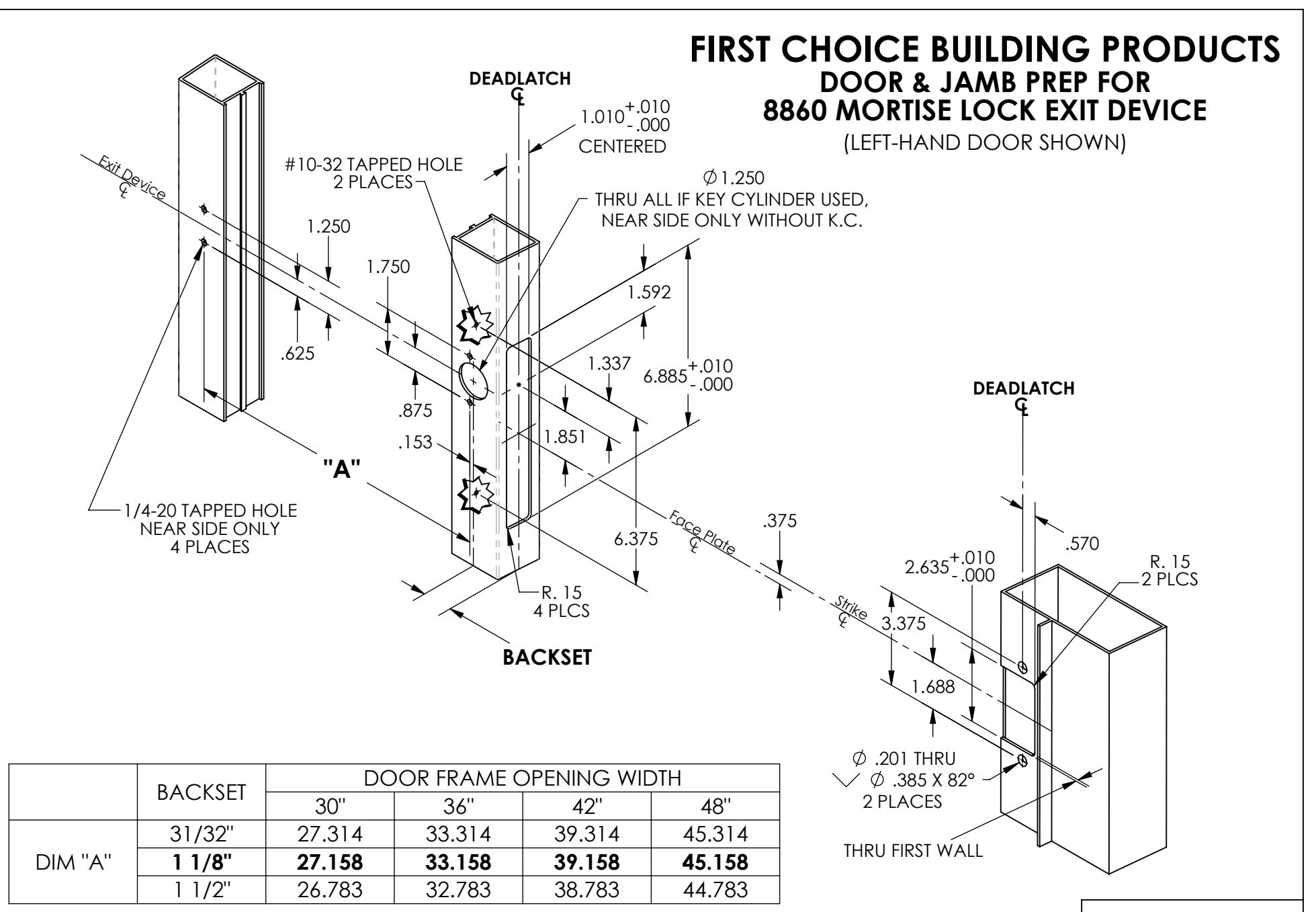

First Choice Building Products 8860 Series Mortise Lock Exit Device Installation Manual

FIRST CHOICE BUILDING PRODUCTS

REVISED: 1/22/2015

TO CHANGE HANDING OF MORTISE LOCK ASSY

1. REMOVE 2X #4-40 X 1/4" FLAT HEAD SCREWS AND SPRING RETAINER PLATE.

CAM LINK ROTATION WHEN PUSHBAR IS ACTIVATED

2. REMOVE 2 SPRINGS, DEADLATCH BOLT, AND LATCH BOLT ASSY FROM LOCK BODY.

3. REMOVE PIN FROM LATCH BOLT. TO DETERMINE HANDING OF ASSY, REFER TO PICTURES ON THE RIGHT.

• 1. REMOVE 2X #8-32 X 1" FLAT HEAD SCREWS & PUSHBAR ENDCAP FROM PUSHBAR.
• 2. REMOVE #6-32 PAN HEAD SCREW SECURED TO CAM LINK, AND FLIP CAM LINK TO OPPOSITE FACE.

(REFER TO DIAGRAMS AND ORIENT CAM LINK ARM AS SHOWN.)

• 3. RE-SECURE CAM LINK TO POST. KEEP POST IN POSITION BY PUSHING FROM OPPOSITE END.
• 4. DEPRESS PUSHBAR AND ROTATE CAM LINK UNTIL POSITIONED CORRECTLY.

CAM LINK ROTATION WHEN PUSHBAR IS ACTIVATED

RIGHT HAND DOOR/ LEFT HAND REVERSE BEVEL

FIRST CHOICE BUILDING PRODUCTS

REVISED: 1/23/2015

8660/8760/8860 EXIT DEVICE FIELD-SIZING INSTRUCTIONS

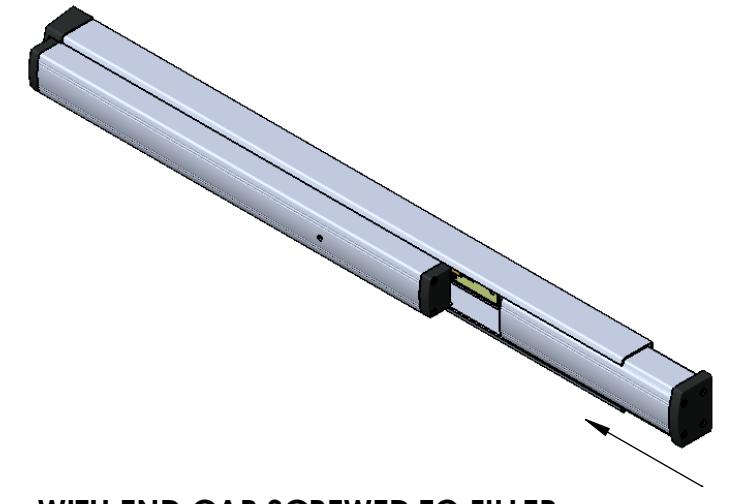

1. WITH END CAP SCREWED TO FILLER BAR, SLIDE BAR FULLY INTO CHANNEL.

3. MEASURE & MARK NEW LENGTH TO BE CUT. INSERT A PAPER TOWEL INSIDE FILLER BAR (AS A CHIP GUARD) AND MAKE DESIRED CUT.

4. USE CHANNEL REMINANT TO RELOCATE 2X ∅.250 MOUNTING HOLES IN THE CHANNEL. DRILL HOLES AND DEBURR ALL EDGES.

FIRST CHOICE BUILDING PRODUCTS

REVISED: 1/26/2015

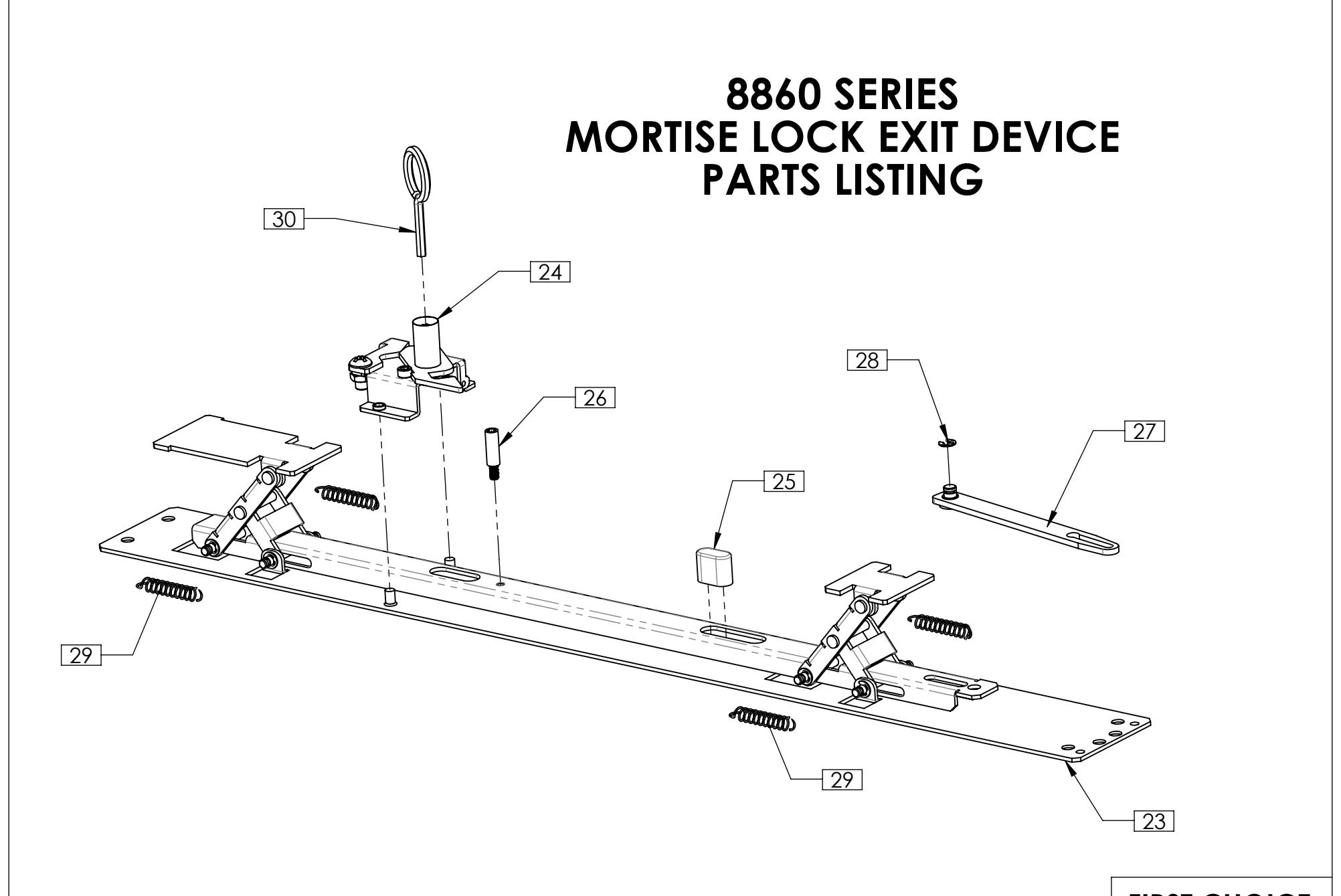

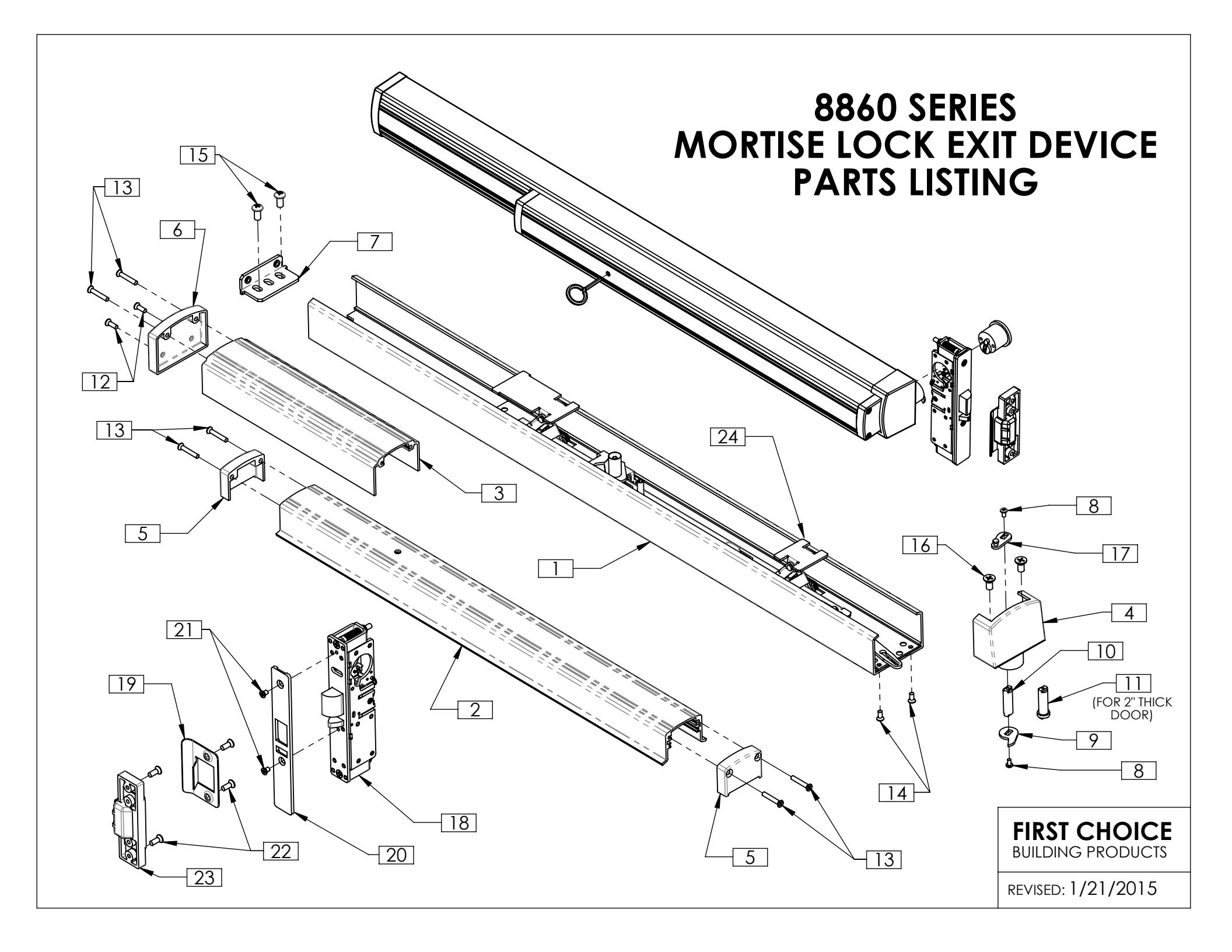

FIRST CHOICE BUILDING PRODUCTS

REVISED: 1/21/2015
