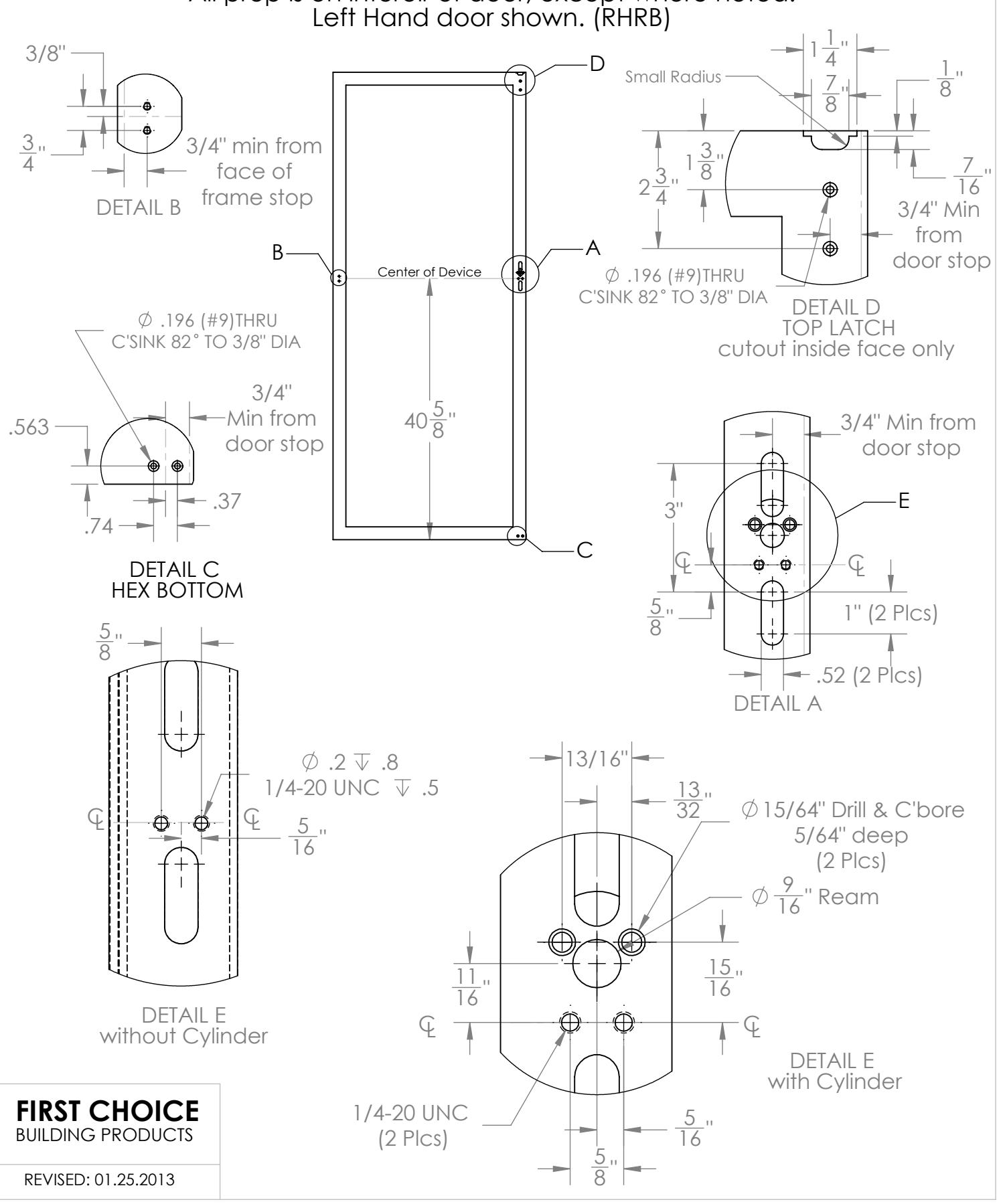

Concealed Vertical Rod Panic For Hex Style Bottom Rod Installation Template

All prep is on interoir of door, except where noted. Left Hand door shown. (RHRB)
