Falcon_Strike_for_Wood_Single_Door_Special_3-1_4_Template_108055

Strikes

03-471, 031471-001, 031472, 031473

Jamb Type: Wood

Style: 3Z\v" (83mm) Single Door Special

Standard for:

Optional for: RU-Series

NOTE:

• 1. Dimensions X, Y and Z are variables dependent on door thickness
• 2. Curved strike extension beyond jamb at Z must not be less than ³⁄₁₆" (5) to ensure proper functioning of latch bolt
• 3. 1¹⁄₈" (29) Lip length for 1³⁄₈" (35) to 1³⁄₄" (44) doors. Other lengths available
• 4. Strike location on frames must be adjusted for thickness of door silencers, when used

Dimensions shown in parentheses () are in millimeters.

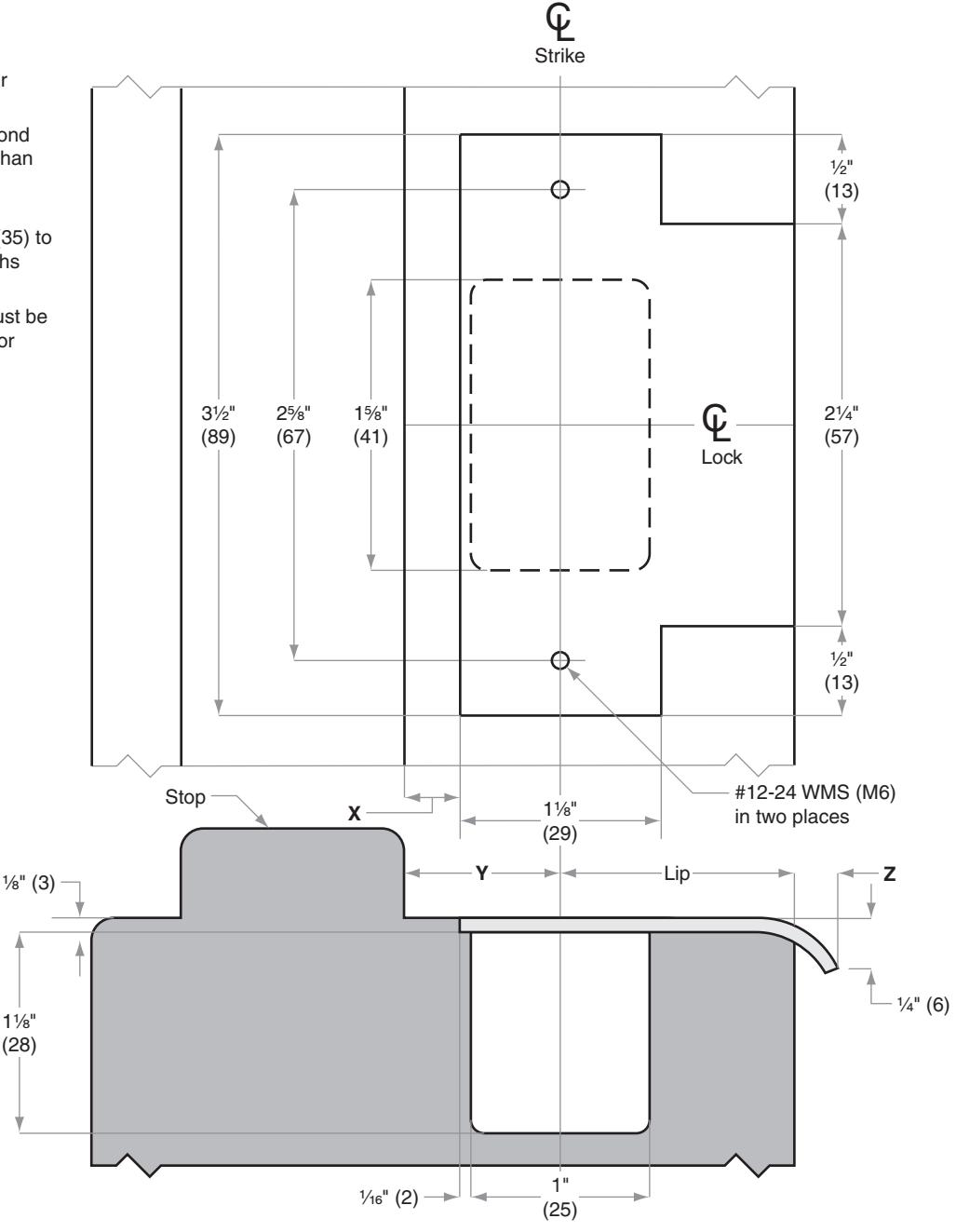

Door preparation template
