View PDFFolger Adams 310-4 Electric Strike for Falcon Rim Devices

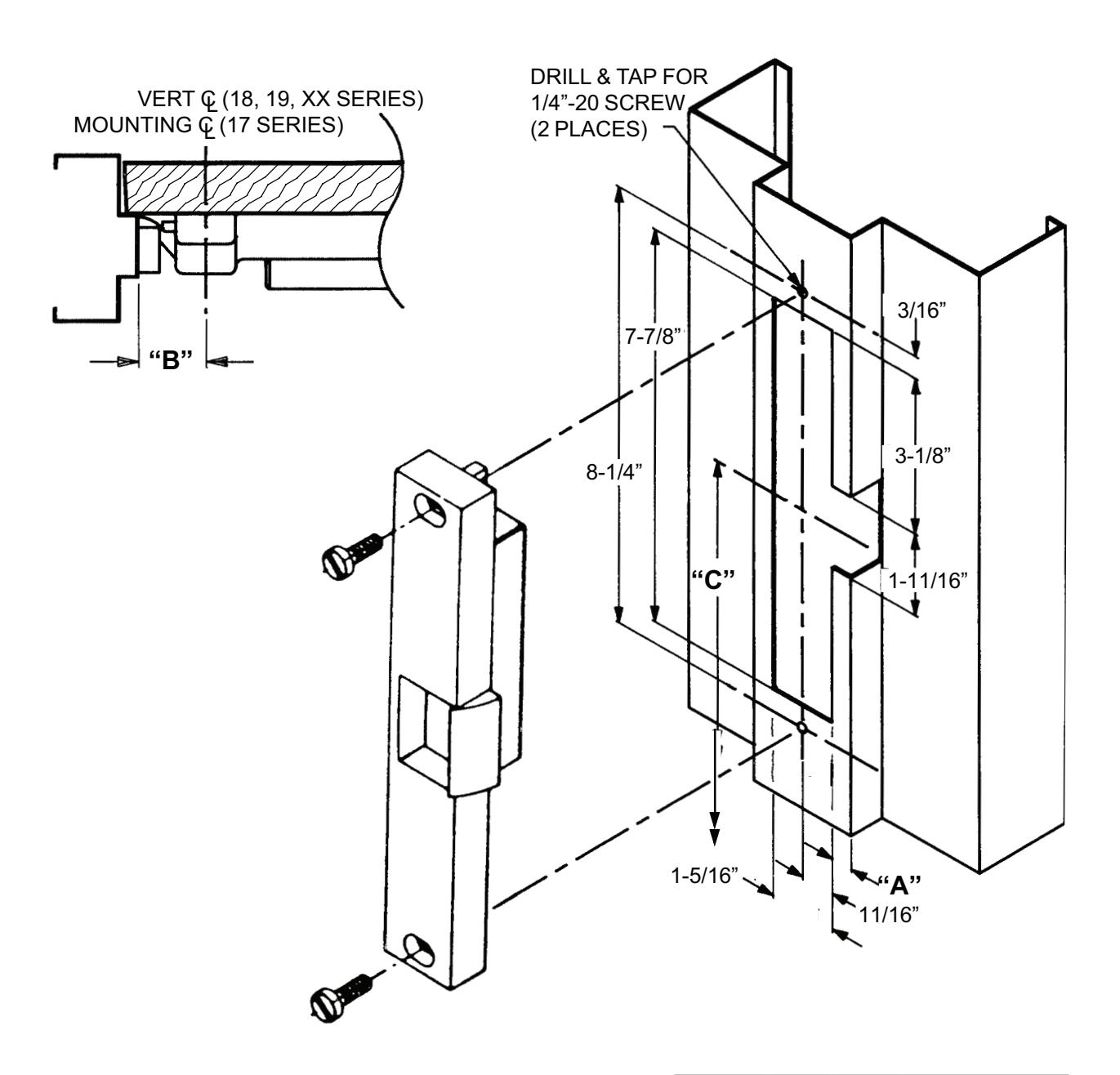

Wood Door, LHR Shown, RHR Opposite
- For device function and other dimensions, see appropriate device and/or trim templates.
- Dimension "C" is height of Device Ref to finished floor.
- For wood frames, consult Folger Adams.
| Device | Α | В | С | Min. Stile |
|---|---|---|---|---|
| 17-R | 3/8" | 1%" | 40" | 31/4" |
| 18-R | 1/2" | 21/4" | 401/4" | 4" |
| 19-R | 3/8" | 1%" | 405/16" | 31/2" |
| XX-R | 1/2" | 21/4" | 401/4" | 4" |
TEMPLATE
W-5485-a
