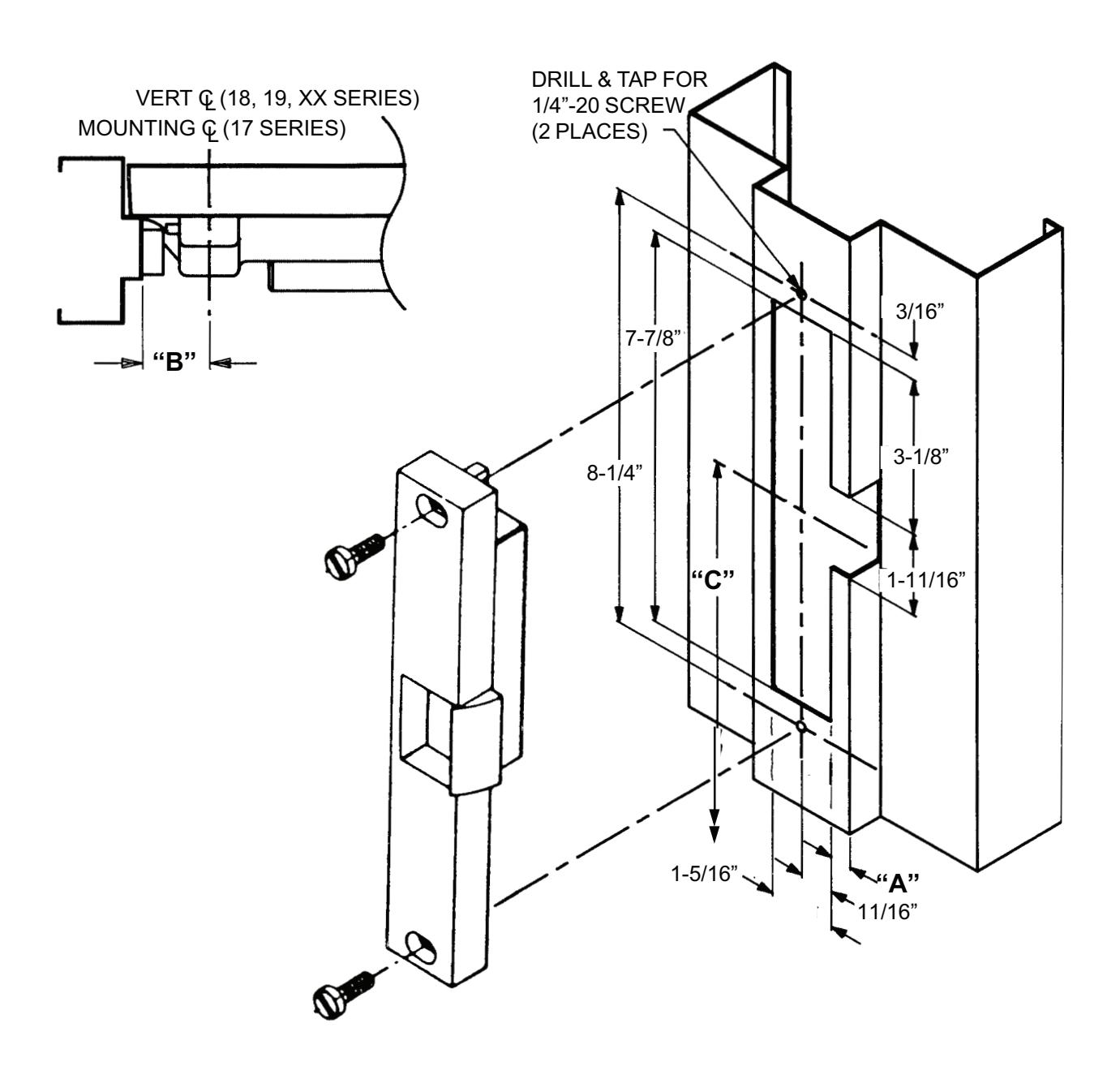

View PDFFolger Adams 310-4 Electric Strike for Falcon Rim Devices
Metal Door, LHR Shown, RHR Opposite
- • For device function and other dimensions, see appropriate device and/or trim templates.
- • Dimension "C" is height of device ref CL to finished floor.
- • For wood frames, consult Folger Adams.
| Device | A | B | C | Min. Stile |
|---|---|---|---|---|
| 17-R | C" | 1B" | 40" | 3Z\v" |
| 18-R | Z\x" | 2Z\v" | 40Z\v" | 4" |
| 19-R | C" | 1B" | 40B\zn" | 3Z\x" |
| XX-R | Z\x" | 2Z\v" | 40Z\v" | 4" |
TEMPLATE
T-5485-a
