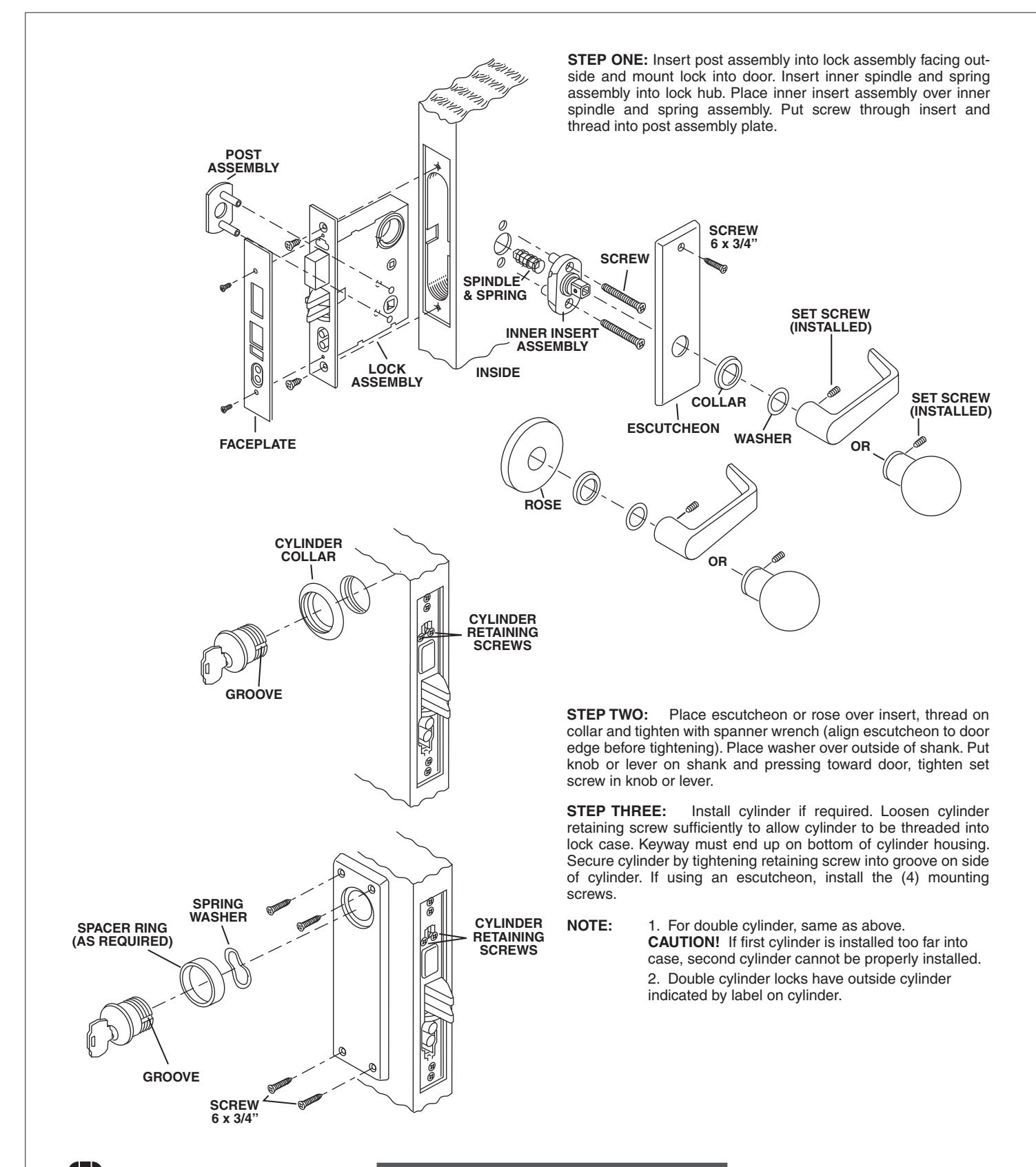

Trim and Cylinder Attachment

FALCON ®

Installation Instructions

ALLEGION

— 3.620 → FRONT 4.250

FOLDED SHEET

Additional Notes:
1. None
Revision History Revision Description:
А В С D E F D > Revised artwork
4955-248 0790 6683
Material Edited By Approved By EC Number Release Date
White Paper J. Ellis M. Roberts xxxxx 10/14
Notes 1. printed one side 2. printed black Title Trim and Cylinder Attachment, M Series Lock (Trim 1 Side)
