FALCON ®

M-Series M101, M161

Door Type: Wood, Flat or Beveled

For Case and Strike dimensions, see Template FM1

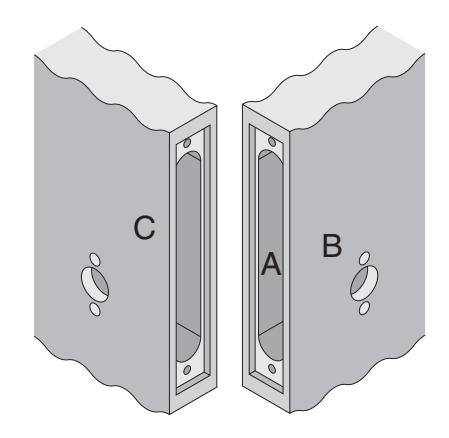

Left Hand (LH) Door Shown

Dimensions shown in parentheses () are in millimeters.

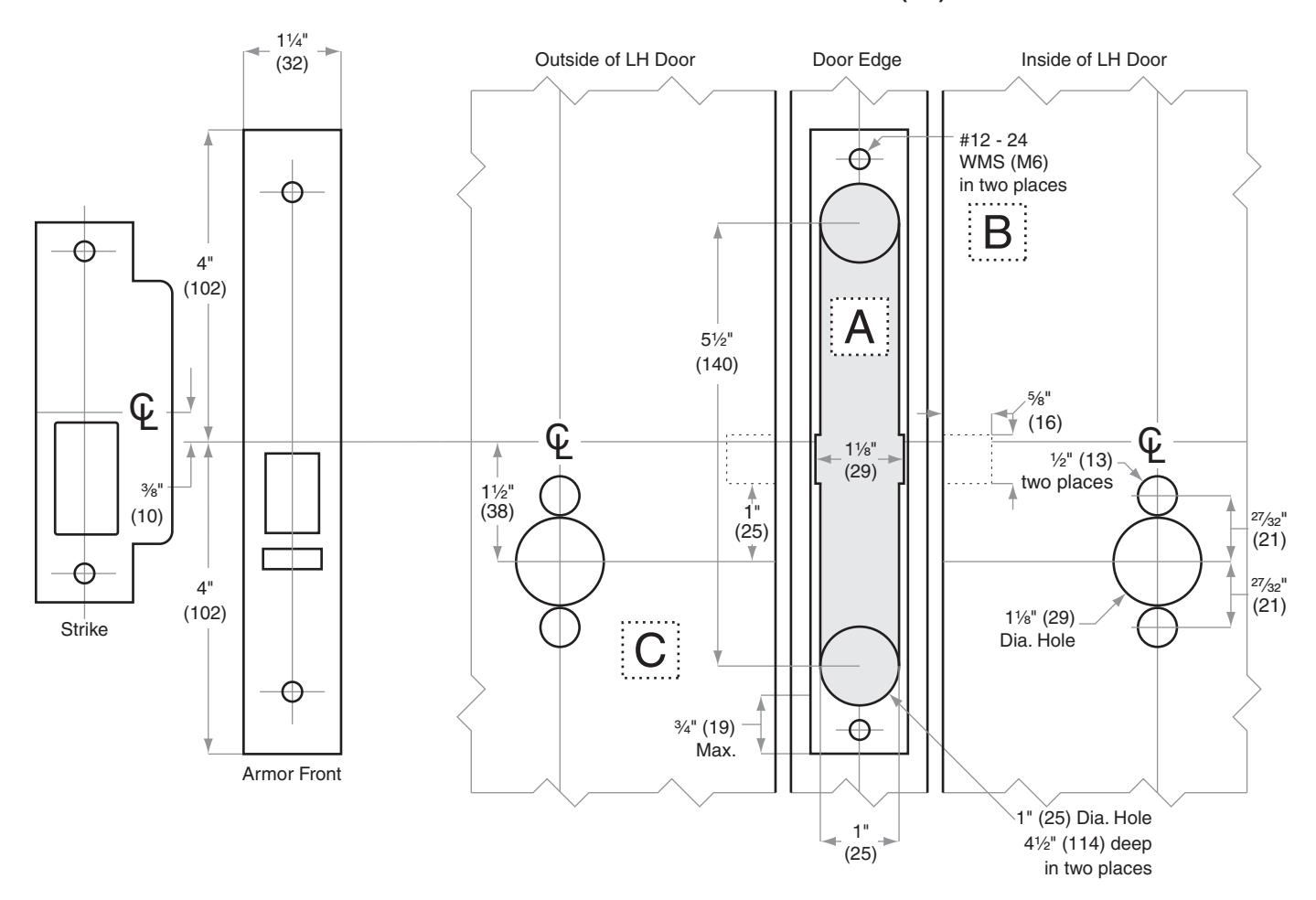

Door preparation template
