Falcon_Lock_Strikes_Q330151_Q001049_Template_for_Wood_Doors_108040

Strikes

Q330-151, Q001-049

Jamb Type: Wood

Style: Full Lip, Square Corner

Standard for:

Optional for: B-Series | H-Series | T-Series | W-Series | X-Series | Y-Series

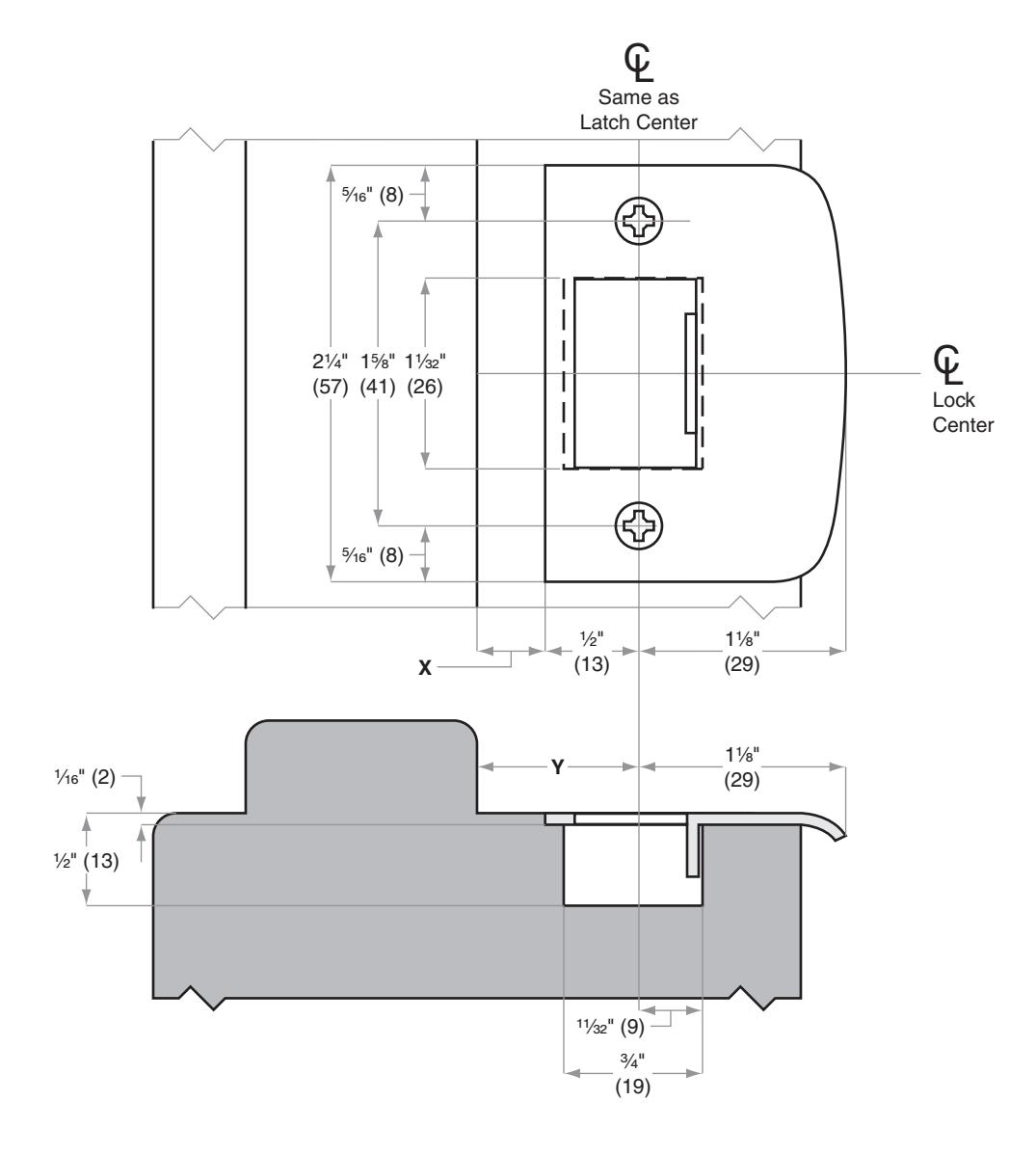

Dimensions X and Y are variables dependent on door thickness

Dimensions shown in parentheses () are in millimeters.

Door preparation template
