FALCON ®

Strikes

Q330-150, Q001-048

Jamb Type: Metal

Style: Full Lip, Round Corner, ¼" (6mm) Radius

Standard for:

Optional for: B-Series | H-Series | T-Series | W-Series | X-Series | Y-Series

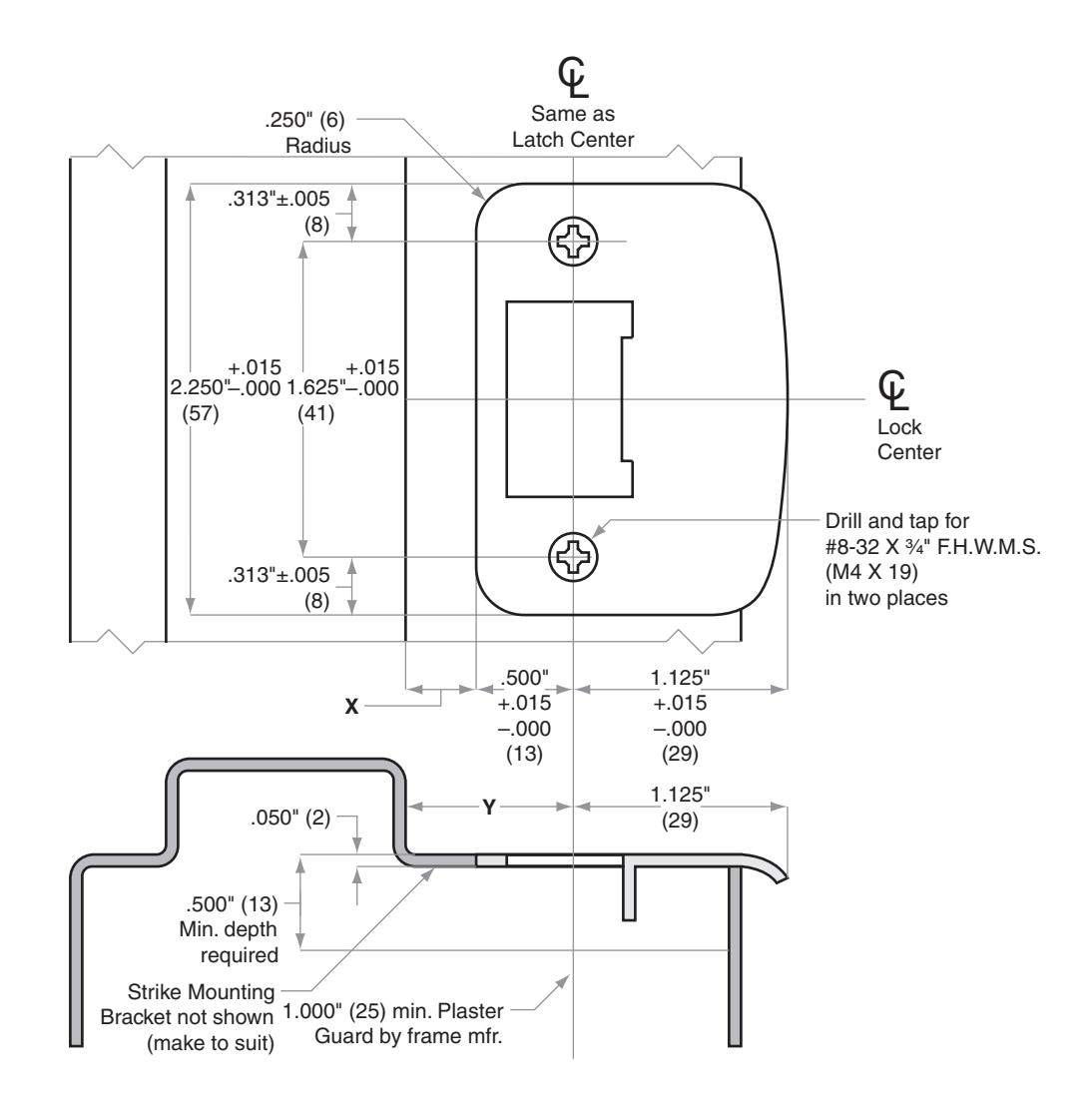

Dimensions X and Y are variables dependent on the door thickness

Dimensions shown in parentheses () are in millimeters.

Door preparation template

ALLEGION
