READ THIS FIRST

SUPPLIMENT TO INSTALLATION INSTRUCTIONS FOR 911 SERIES PANIC & FIRE EXIT HARDWARE

LSDA

F-911 SERIES 911 SERIES

LD-1101-0

Date:

6-1-2002

1) IF DEVICE IS NOT BEING INSTALLED WITH KIK, KIL OR CENTRON TRIM, DISREGARD THIS NOTICE AND PROCEED WITH DEVICE INSTALLATION.

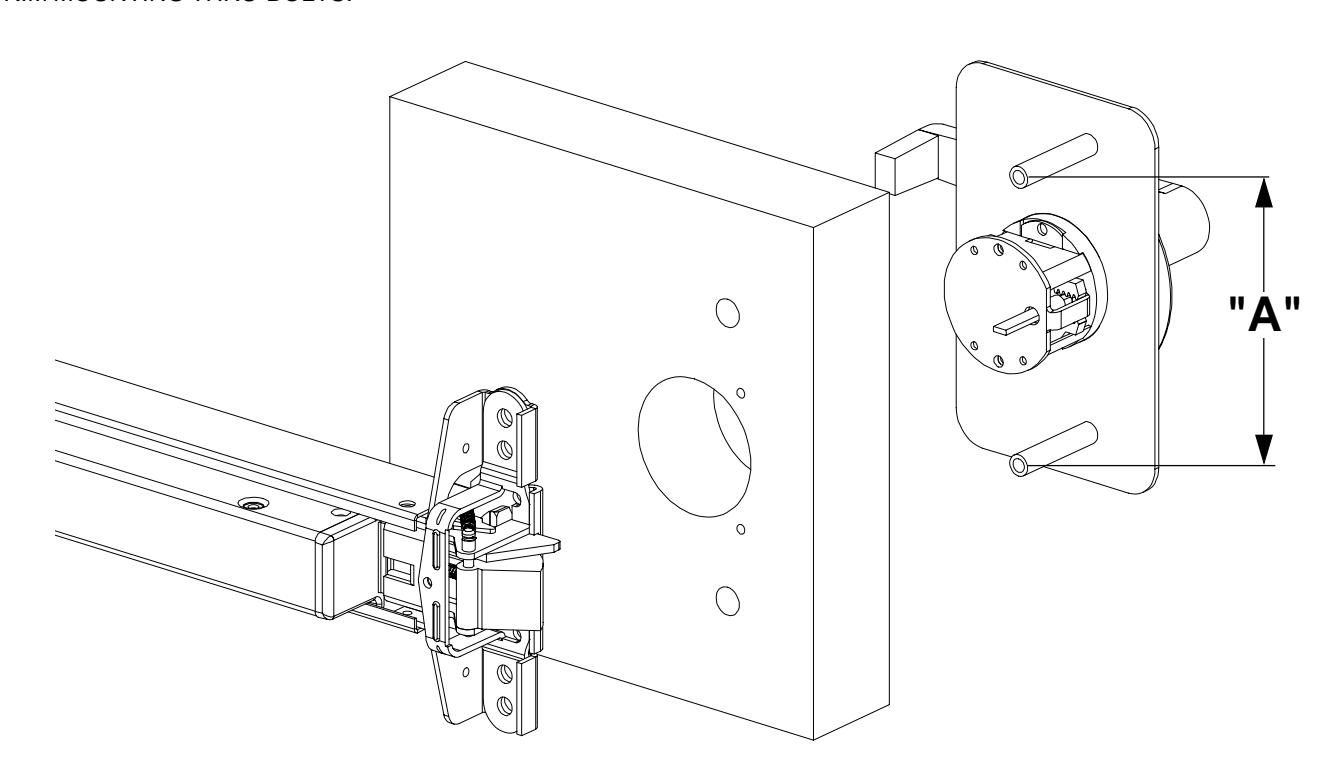

2) IF DEVICE IS BEING INSTALLED WITH KIK, KIL OR CENTRON TRIM, MEASURE THE DISTANCE BETWEEN THE TRIM MOUNTING THRU-BOLTS.

3) IF"A" ABOVE IS 3-1/2", PREPARE THE HOLES MARKED "B" (INSTEAD OF "A") IN THE INSTALLATION INSTRUCTIONS. IF "A" ABOVE IS 4-1/2", PREPARE THE HOLES PER THE INSTALLATION INSTRUCTIONS.
4) PROCEED WITH DEVICE & TRIM INSTALLATION.
