Falcon_H101_H511_1_Square_Corner_Wood_Template_108037

FALCON ®

H-Series

H101-H511

Door Type:

Wood or Composite, Flat or Beveled

Door Thickness: 1%" (35mm) – 2" (51mm) Faceplate: Square Corner, 1" (25mm) wide

Backsets: FB102-C, 2%" (60mm) | FB102-D, 2%" (70mm) | FB102-F, 5" (127mm)

Dimensions shown in parentheses () are in millimeters.

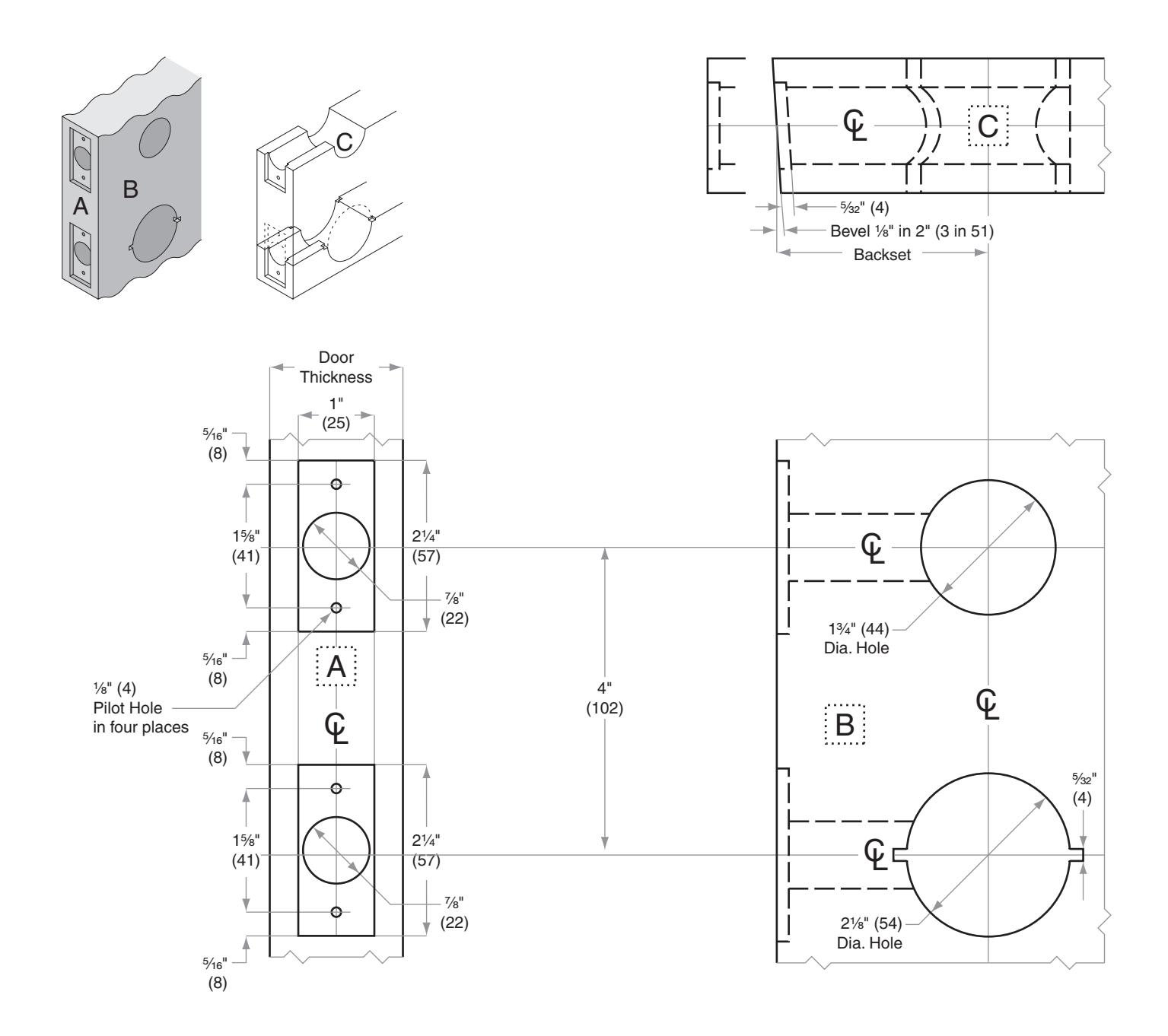

Door preparation template
