Falcon_H101_H511_1_Square_Corner_Metal_Template_108038

H-Series

H101-H511

Door Type: Metal, Flat or Beveled Door Thickness: 1C\," (35mm) – 2" (51mm)

Faceplate: Square Corner, 1" (25mm) wide

Backsets: FH103-C, 2C\," (60mm) | FH103-D, 2C\v" (70mm)

Dimensions shown in parentheses () are in millimeters.

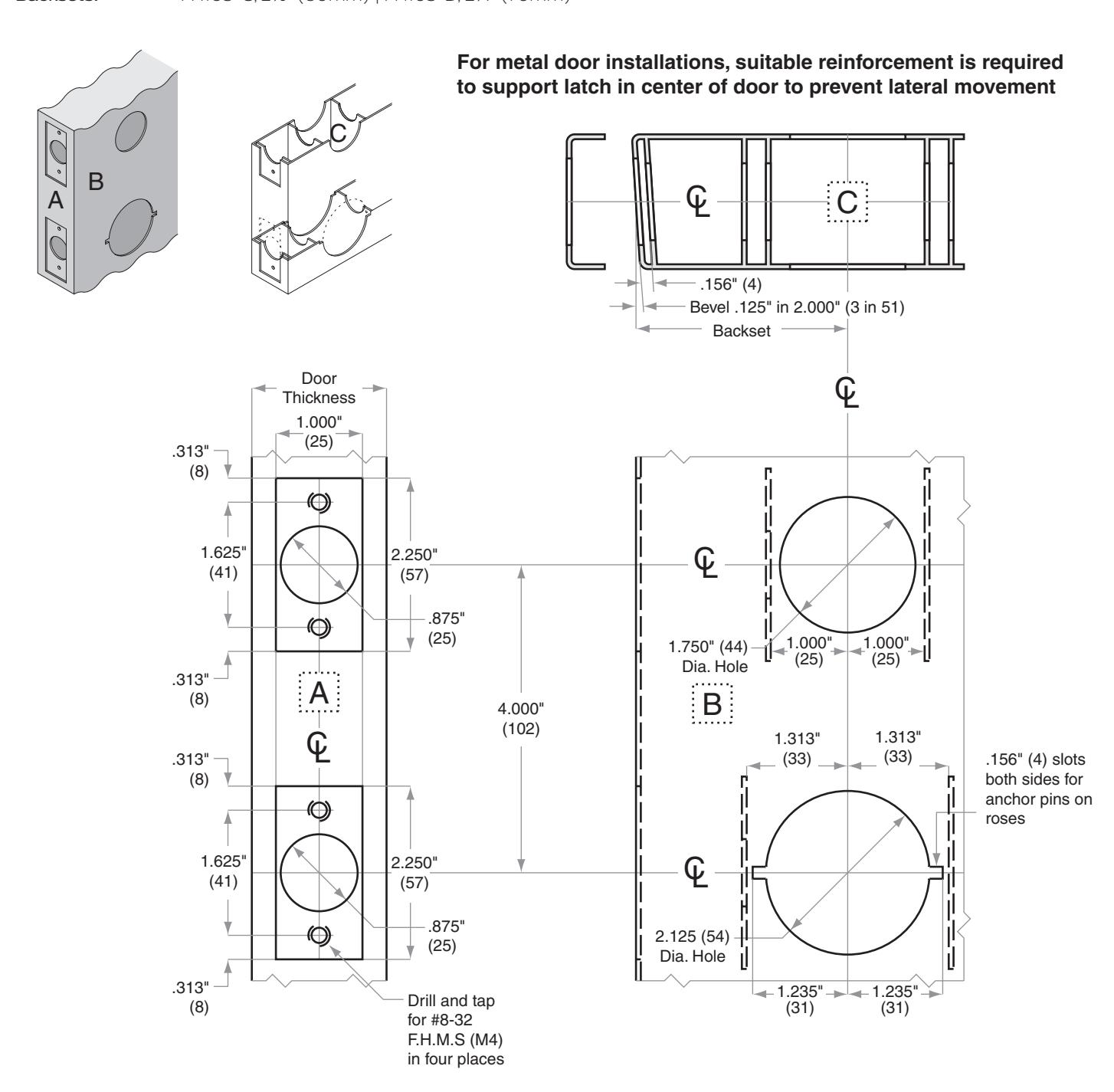

Door preparation template
