Falcon_F_XX-V_Thumbpiece_Lever_Trim_Surface_Vertical_Only_Wood_Door_Template_108895

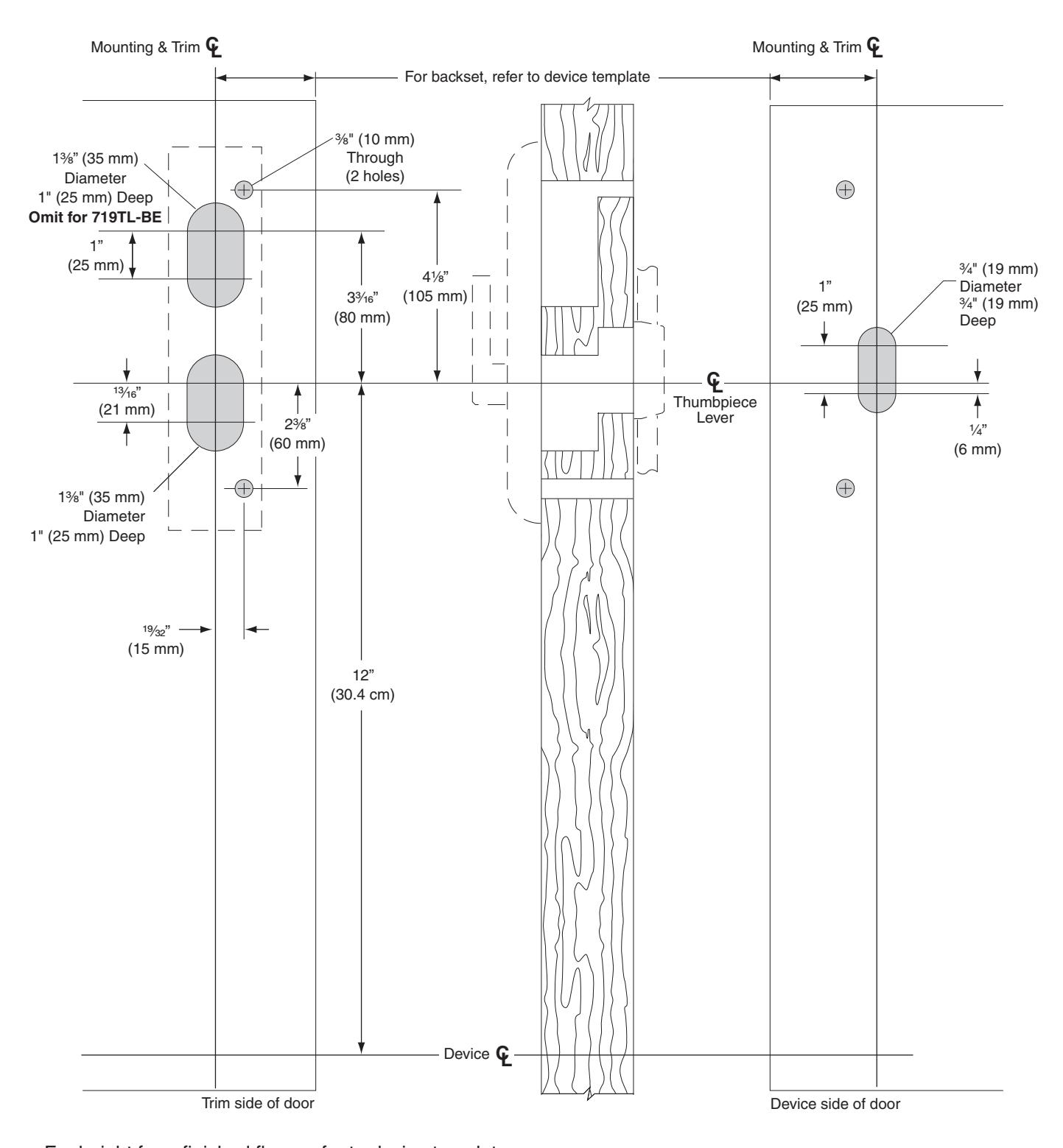

(F)XX-V Thumbpiece Lever Trim for Surface Vertical Device only

719TL, 719TL-BE Trim, Wood Door, LHR Shown, RHR Opposite

• For height from finished floor, refer to device template.

THIS TEMPLATE APPLIES TO PRODUCT ORDERED PRIOR TO 3/1/2011

TEMPLATE

W-2423-b
